Lindab FDS-M - FDS-S Slave Unit

6
2018-08-01

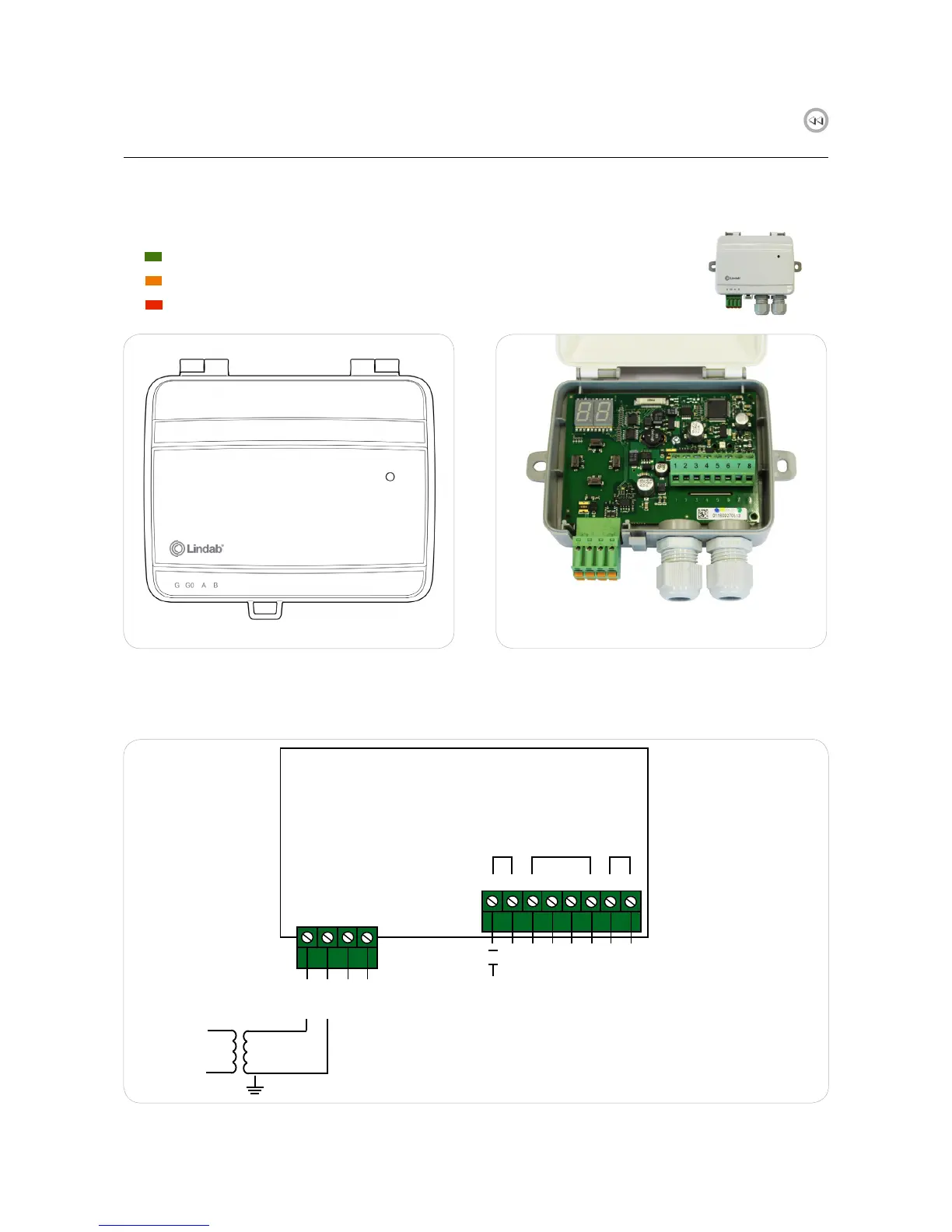

2.2 FDS-S Slave unit
FDS-S slave unit is a module controlled by hidden pushbuttons together with one LED.
1.
Steady green: unit is addressed and working. No alarm reported.
2.
Steady orange: service alarm (communication or dirty smoke detector)
3.
Steady red: A (fire) alarm
Fig. 4. Slave unit
Fig. 5. Internal PCB about FDS-S
The internal PCB allows to connect one fire damper power supply, two position switches and one smoke detector. The
external quick connector allows to easily link power and communication of slave units together.
1 2 3 4 5 6 7 8
+
S2 S1 S6 S4
+
-
G
G0
A
B
RS485
24V AC/DC
~
+
-
•
Servomotor Supply Servomotor Switches Smoke Detector
