Servicing 5
Inspection and maintenance every 500 to 1000 operating hours or once a year

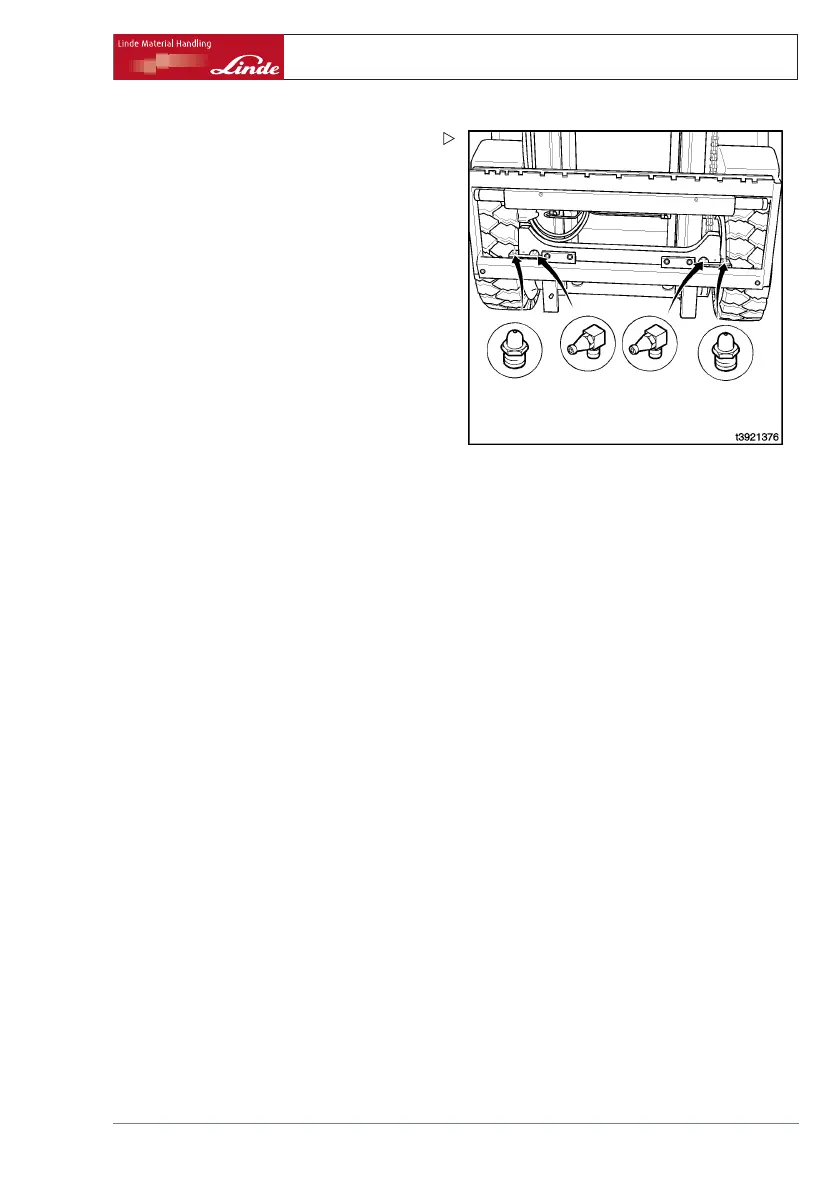

¾ Adjust the fork arms so that the 4 grease
nipples (1) are accessible .
¾ Lubricate the grease nipples (1) for the slide
rollers on the fork carriage, until grease
emerges from the sides.
Operating Instructions – 386 807 1001 EN – 03/2006 113
