5 Servicing
Inspection and maintenance every 3000 operating hours or every 2 years

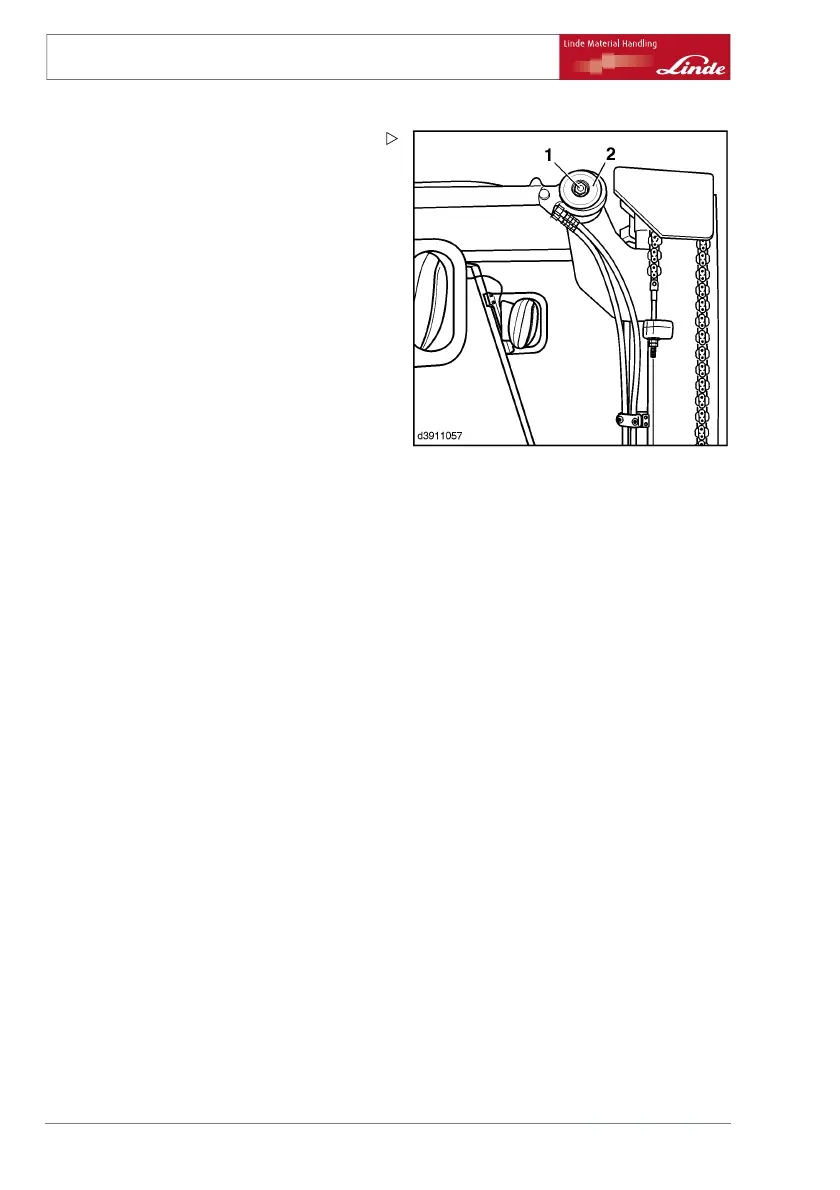

¾ Undo screw (1) and remove it together with
washer (2).
¾ Visually check the spring elements for
cracks.
The rubber must not exhibit any cr
acks.
¾ Check the spring elements for each tilt cylin-
der at the front and rear.
If the rubber bearings are worn or damaged,
renew them. Please advise your authorised
dealer.
¾ Refit the screw and washer.
¾ Tighten the screw to 275 Nm.
128 Operating Instructions – 386 807 1001 EN – 03/2006
