Linde E14 - Check Operating and Steering Hydraulics for Leakage; Inspection and Maintenance Every 3000 Operating Hours or Every 2 Years

5 Servicing
Inspection and maintenance every 3000 operating hours or every 2 years
Check operating and steering hy-
draulics for leakage

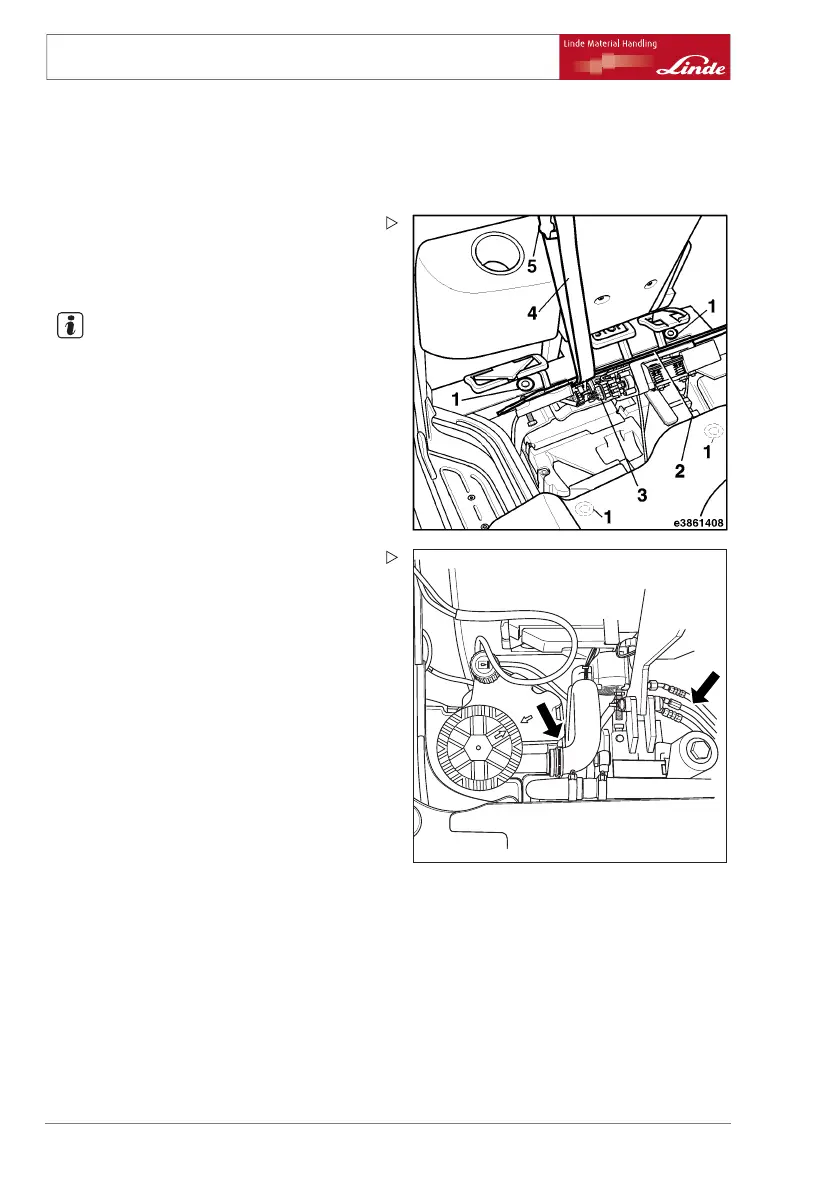

¾ Remove rubber mat from floor plate.
¾ Unscrew 2 screws (1) on side of driver’s
seat.
¾ Lift up floor plate (2) and att
ach with loop (4)
to adjusting knob (5).
NOTE
Should it be necessary to completely disman-
tle the floor plate (2) , all 4 fastening screws
must be unscrewed and the connector plug (3)
detached from the drive control pedal system.
e3861392
¾ Check hydraulic pump of operating and
steering hydraulics, valves and lines for
leakage.
¾ Replace porous hose
s.
¾ Check lines for scuffing and replace if nec-
essary.
120 Operating Instructions – 386 807 1001 EN – 03/2006
