Fuses basic equipment
1234
5
6
7
8
9
e3861339
1 Fuse 4F1 alarm horn 10 A
2 Control current fuse F2, 15 A
3 Fuse discharge indicator F3, 10 A
4 Fuse voltage transformer F4, 5 A
5 Fuse fan 9F5, 5A
6 Fuse discharging circuit 2F6, 5 A
7 Fuse charging circuit F7, 10 A
8 Fuse discharging circuit 1F8, 5 A
9 Fuse base cover strip

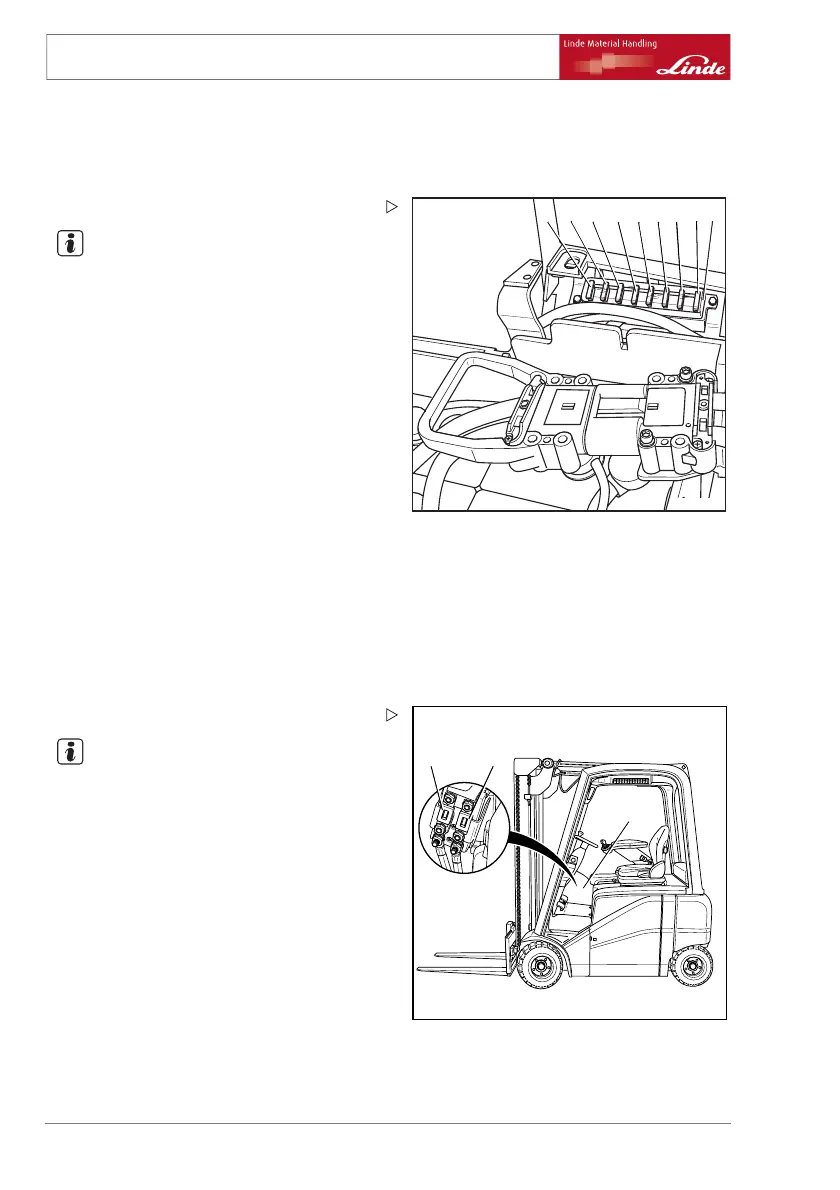

Check / replace fuses
NOTE
The plug-in fuses are located on the board
contactor under the right-hand console cover.
To access the plug-in fuses the battery cover
has to be opened.
¾ Remove right-hand console cover.
¾ Open battery cover.
¾ Remove fuse cover (9) strip
e3861355
1
2
3
2 1F1 primary current fuse drive motor 355 A
3 2F1 primary current fuse pump motor 300 A
Check / replace primary current fuses.
NOTE
The 2 primary current fuses (fusible cut-outs)
for the two drive motors and the pump motor
are located on the board contactor.
