Operation 4
Working under load
Towing device
NOTE
Thetowingdeviceisusedtotowlightcar-
riages on the factory premises. (The appli-
cable guidelines of the accident prevention
regulations and German association of engi-
neers (UVV and VDI 3973) must be observed
here.)
e3861373
1

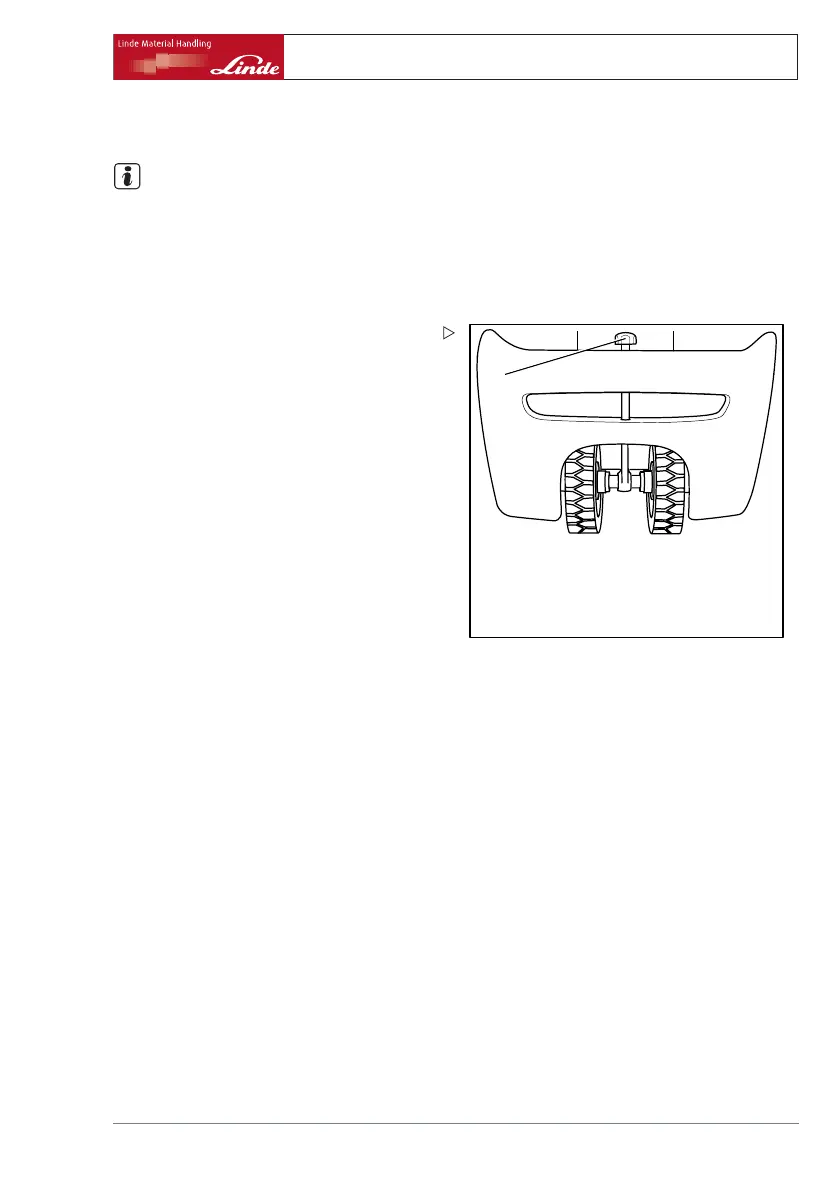

¾ Turn the towing bolt (1) through 90° and lift.
¾ Insert the towing jaws in the co
upling
sleeve.
¾ Force down the towing bolt against the
spring pressure, turn through 90° and allow
to snap into place in the catch.
