LINET Multicare LE

D9U001MC5-0101_08 27

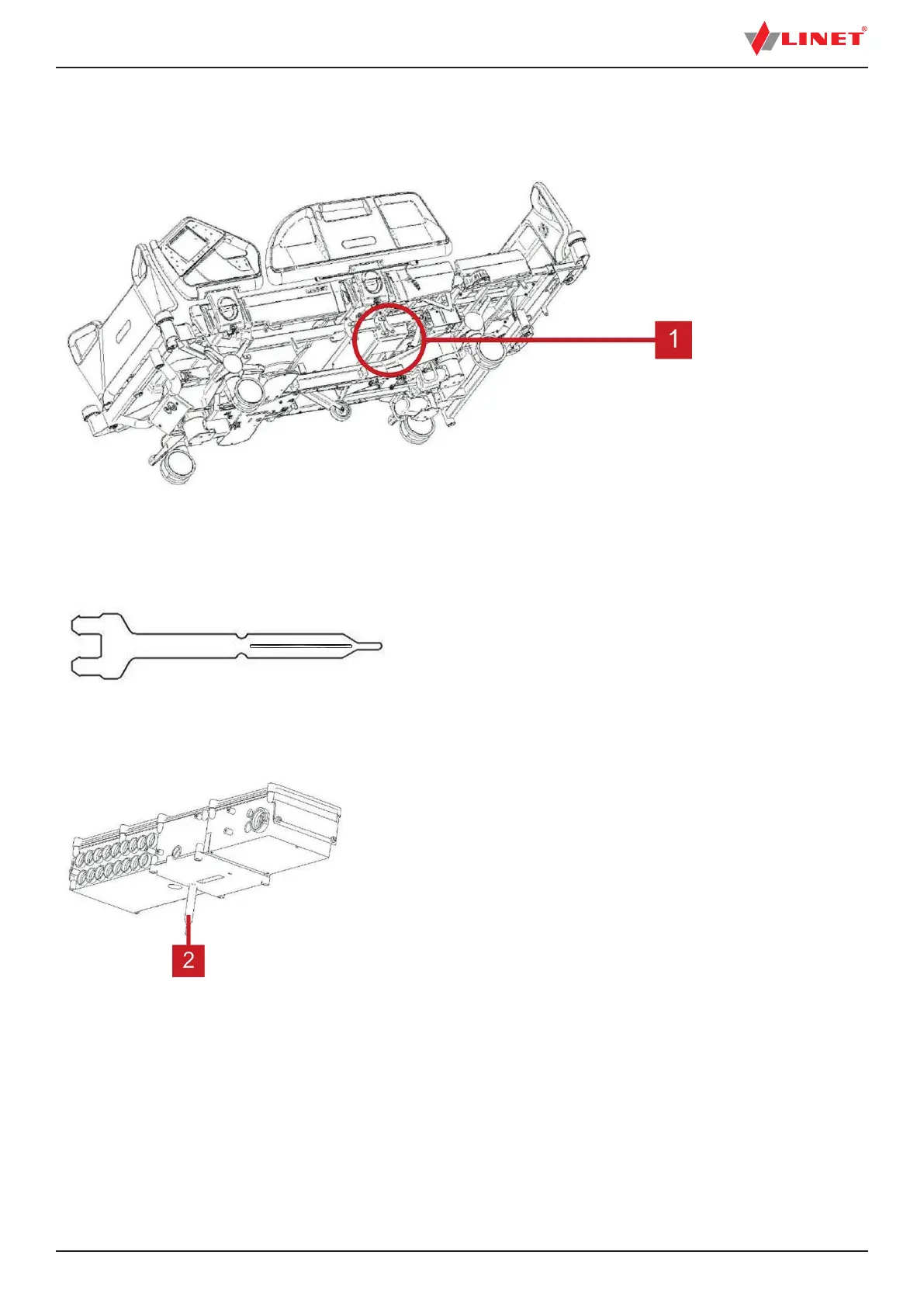

Fig. Control section placement
Fig. Isolating foil
8.1 Accumulator Activation
8.1.1 Placement of Control Section
To remove isolating foil:
► Remove isolating foil from mains control box 1 by pulling strap 2.
► Check if isolating foil is complete and undamaged.
► If isolating foil is damaged, contact the manufacturer’s service
department immediately.
NOTE: It is recommended to wear gloves when removing the isolating foil.
8.1.2 Removing the Isolating Foil
