12 Scales (WS 17)
12.1 Scales Control Panel
Multicare LE is equipped with a weighing system that allows weighing the patient in bed. The control panel for this system is part of
the Multiboard.
1. Indicated Value Switch Button
2. ZERO/T Button
3. Display
4. Weight balance indicator
5. WEIGHT/CLEAR Button – cancelling the activated function
6. HOLD Button
7. Bed Exit Alarm volume Button
8. Inner Zone Indicator
9. Outer Zone Indicator
10. Bed Exit Alarm Button

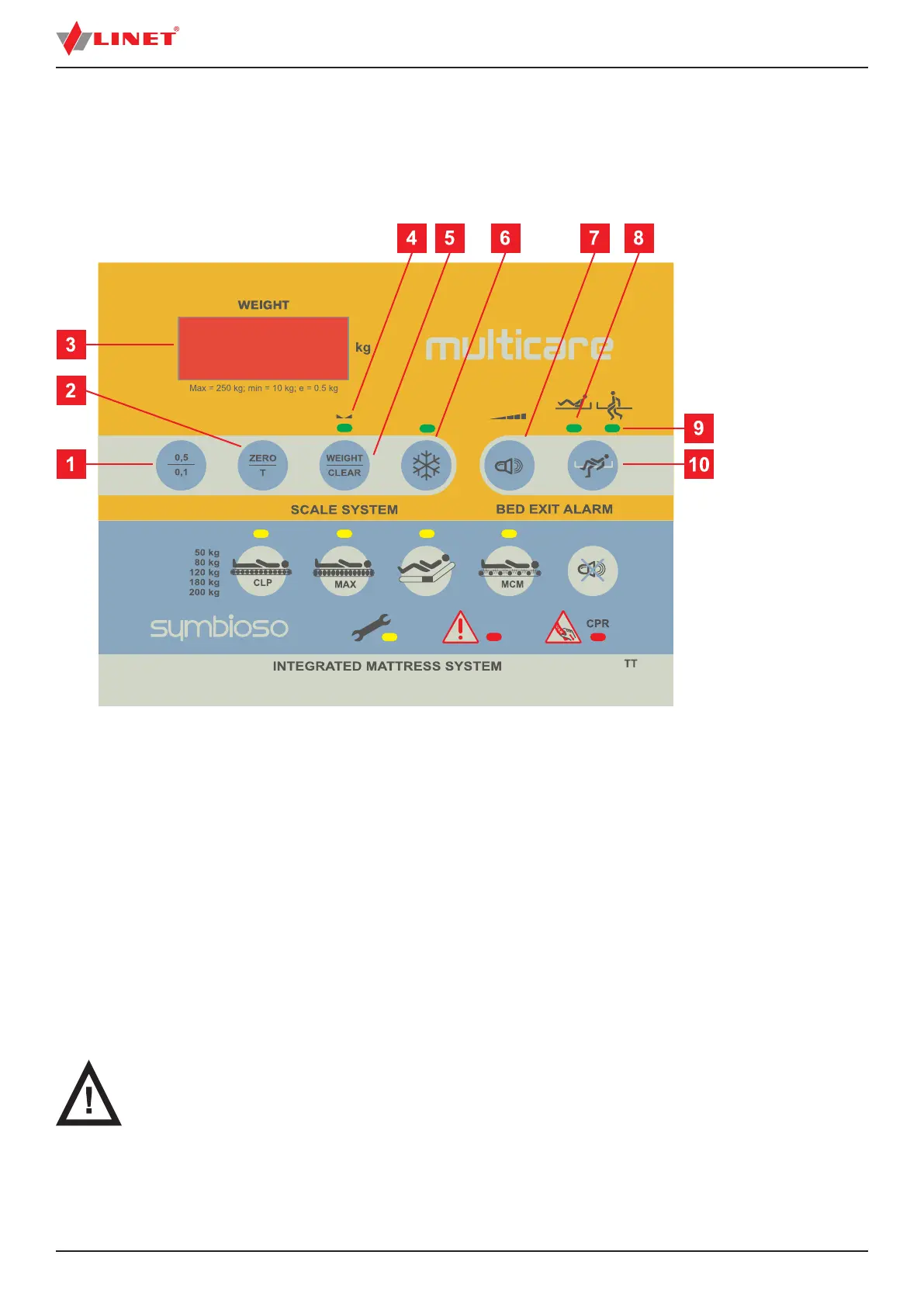

Fig. Control Panel Scales and Symbioso
12.1.1 Preparation
► Install mattress and accessories to prepare bed before patient admission and using the scales.
CAUTION!
Incorrect use of scales due to incomplete preparation!
► Before each patient admission tare the scales.
