15.4 Ventilation Circuit Holder
The ventilation circuit holder prevents an extubation.
► Always use a LINET® ventilation circuit holder to prevent extubation when the bed is tilted laterally.
Applying ventilation circuit holder:
► Put ventilation circuit holder in hole on right or left of head
end.
► Fasten ventilation circuit holder with wing screw provided.
► Put intubation tube through plastic head of ventilation circuit
holder.
► Tilt mattress platform left and right by 30° to check if intubation
tube is fastened securely. The fastening is secure if no parts
of the ventilation circuit are disconnected.

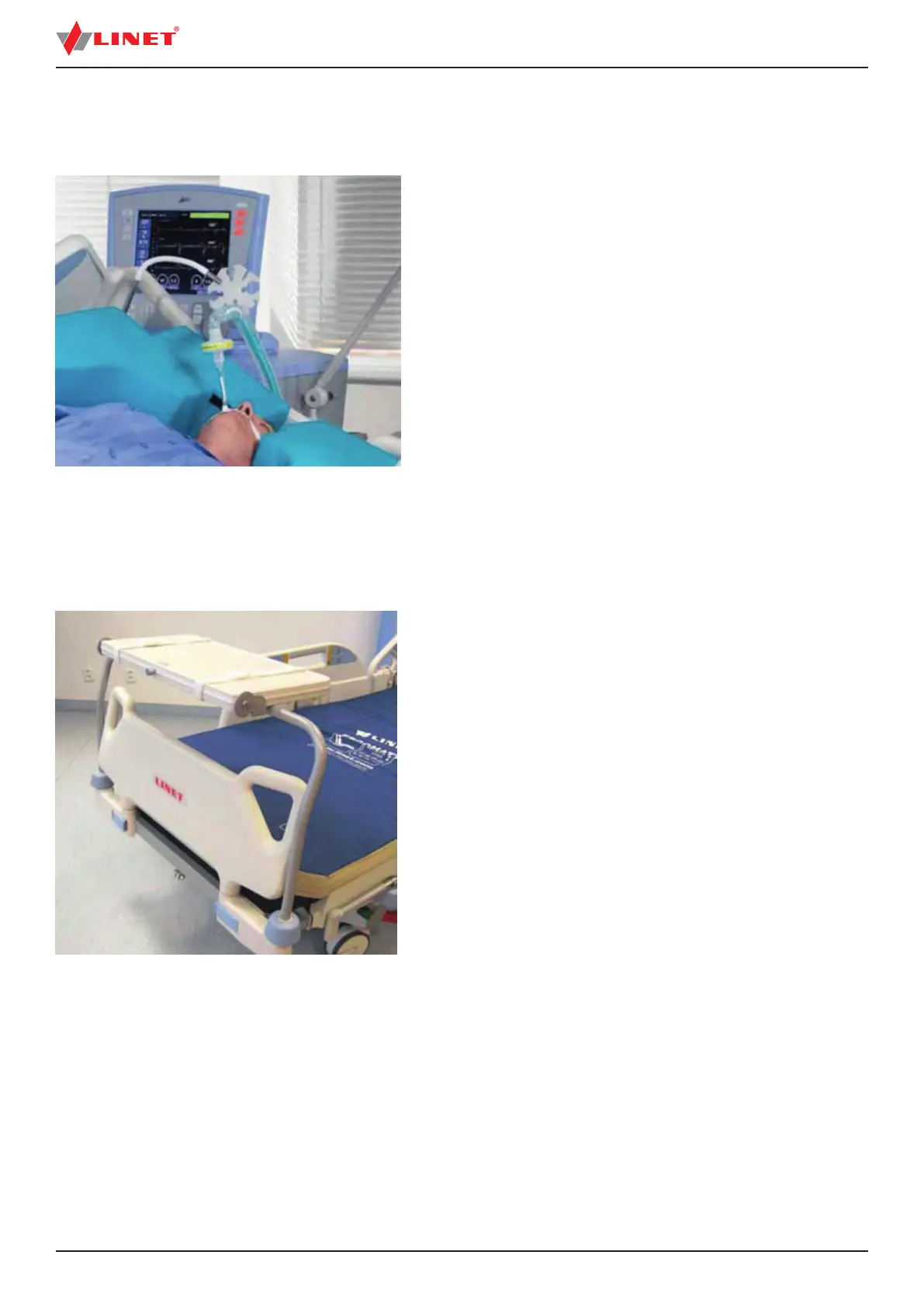

Fig. Ventilation Circuit Holder
15.5 Monitor Tray
The monitor tray is suitable for transporting monitors with a weight of up to 15 kg (33.07 lbs).
Installing the monitor tray:
► Insert two vertical monitor tray tubes into corner sleeves on
foot end.
► Fixate monitor with safety belts in order to avoid any damage
during transport.
Fig. Monitor Tray
