35/65D9U003VB3-0101_04
Safe cable routing:
Route cable through cable routing clips.
Ensure that cable is not hanging over head end to prevent it from getting stretched or trapped when rai-
sing or lowering the back rest.
9.4.1 FowlerBoostConnection
White visual indicator on SCU control panel indicates activated Fowler Boost. Pressure increases in seat and back sec-
tions (Fowler Boost) automatically at a single point when Backrest is adjusted to 30 degrees (Virtuoso Overlay, Virtuoso
Mattress Replacement (Air + Foam Base), Virtuoso Mattress Replacement (Air + Static Air Base), Virtuoso Mattress
Replacement (Air + Alternating Air Base)). Pressure increases in seat and back sections automatically and linearly when
backrest is adjusted between 11 and 46 degrees (Virtuoso With Head & Heel Zoner (Air + Alternating Air Base) and
Virtuoso Pro).

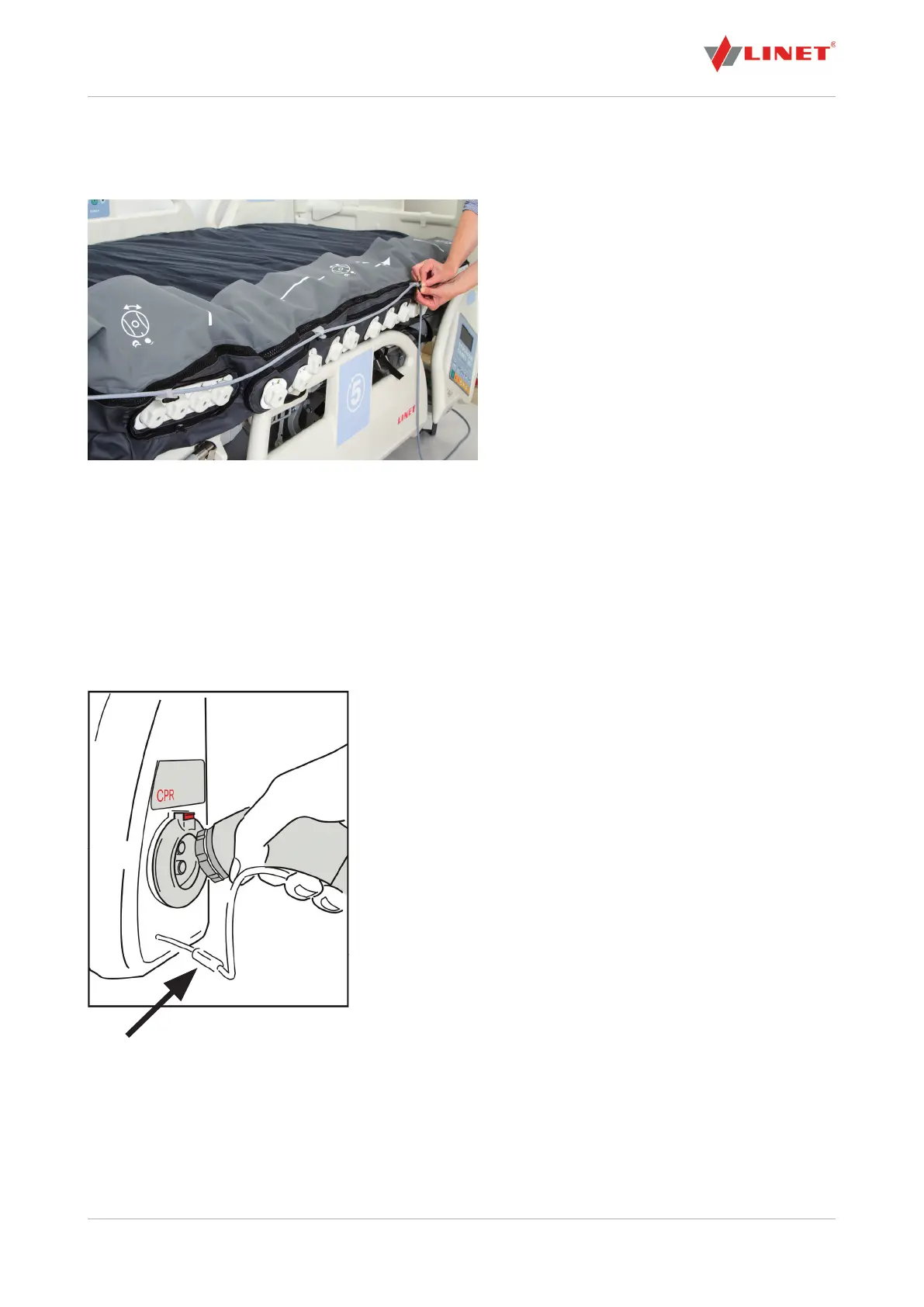

Fig. Cable routing clips
Fig. Fowler Boost Cable connected to SCU
