D9U003VB3-0101_0450/65
11.6 CPR(umbilicalconnected)
ToallowresuscitationwithSCUconnected:
Press red CPR button above the air connector on the side of SCU.
Remove air connector plug from air connector.
CPR chest compression can start immediately.
NOTE During this process, it is possible that the backrest detector plug is pulled out. This does not aect the CPR
function.
11.7 CPR(umbilicaldisconnected)
ToallowresuscitationinTransportmode:
o are aligned
and air starts to escape.

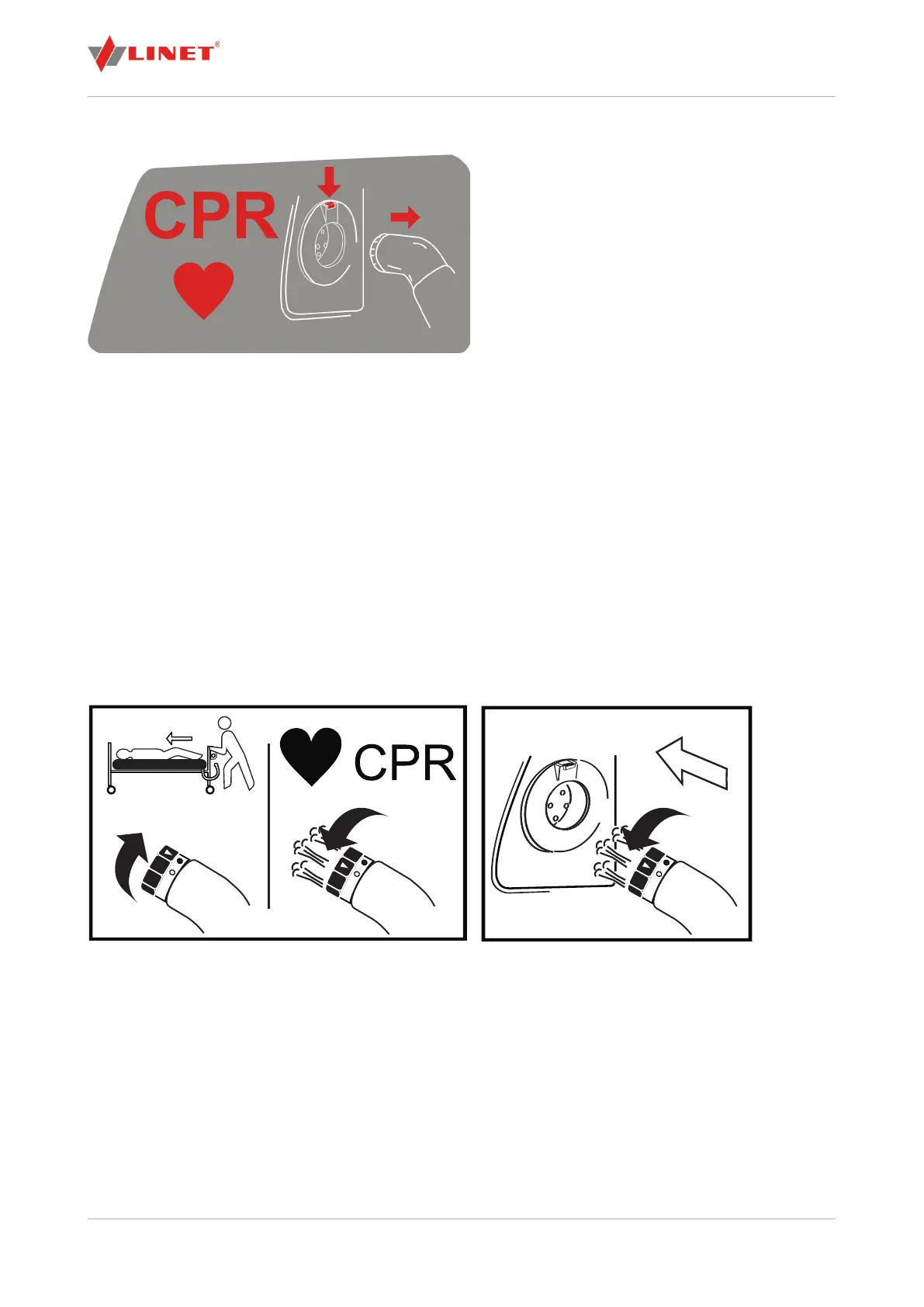

Fig. CPR (SCU connected)
Fig. CPR (SCU disconnected)
