9.3 Connecting Mattress and SCU
Ensure that air connector is in open mode.
Insert air connector 1 in the socket 2 at an angle of approximately 45°.
Push air connector 1 down until it clicks into place.
Insert Fowler Boost male connector 3 to Fowler Boost female connector in SCU.
1. Air connector
2. Air connector socket
3. Fowler Boost connector
9.3.1 Air Connector Detection
9.4 Cable Management System
Virtuoso is equipped with 3 cable routing clips on both sides of the mattress cover. The cable routing clips prevent the
cable from getting twisted, crushed or strained or becoming a tripping hazard.
WARNING!
Riskofinjuryduetoexposedcable!
Ensure that cable is not twisted, crushed or strained.
Use cable routing clips in order to avoid tripping hazards.
Ensure that it is not possible for the cable to get trapped between any moving parts of the bed frame.
WARNING!
Riskofincompatibilityduetoincorrectcable!
Use original cable exclusively.
will turn on 2 LEDs from the left for Virtuoso Overlay and Virtuoso Mattress
Replacement (Air + Alternating Air Base) or 3 LEDs from the left for Virtuoso
With Head & Heel Zoner (Air + Alternating Air Base) or 4 LEDs from the left
for Virtuoso Pro (see position 3 on Control Panel picture). These LEDs will
remain on until the SCU starts to run. Then they will return to displaying the
air pressure setting. In case of Seat Cushion the display will not turn on any
LED because it has its own indicator on the Control panel.

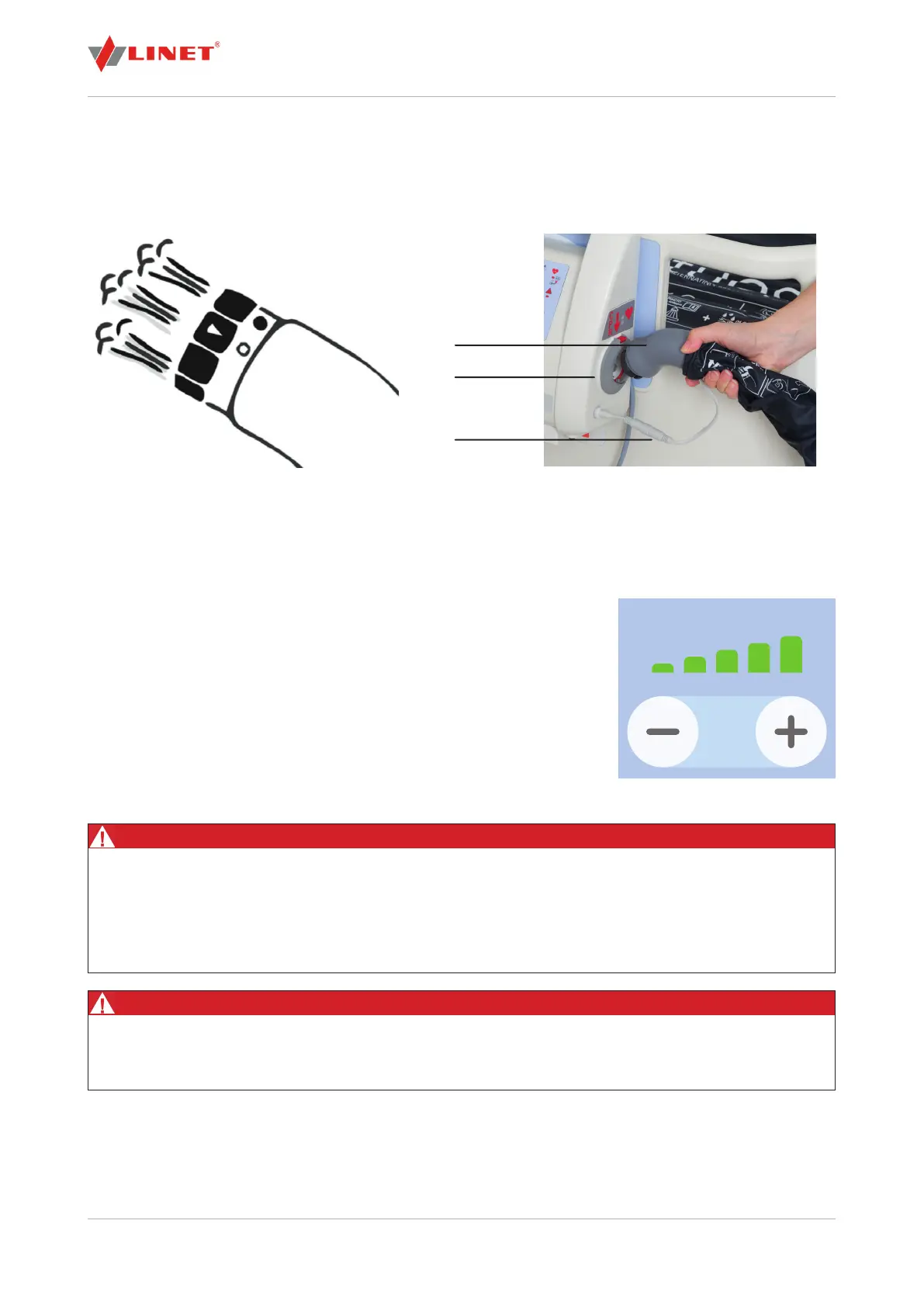

Fig. Open Mode
Fig. Air Connector and Fowler Boost
connector
1
2
3
1
2 3 4
5
Fig. Five LEDs.
