CHAPTER
5
FINAL
DRI
VE
A
T
V
S
E
R
V
I
C
E
M
A
N
U
A
L
0
9
.
0
C
H
A
P
T
E
R
5
F
I
N
A
L
D
R
I
V
E
.
5
-
28

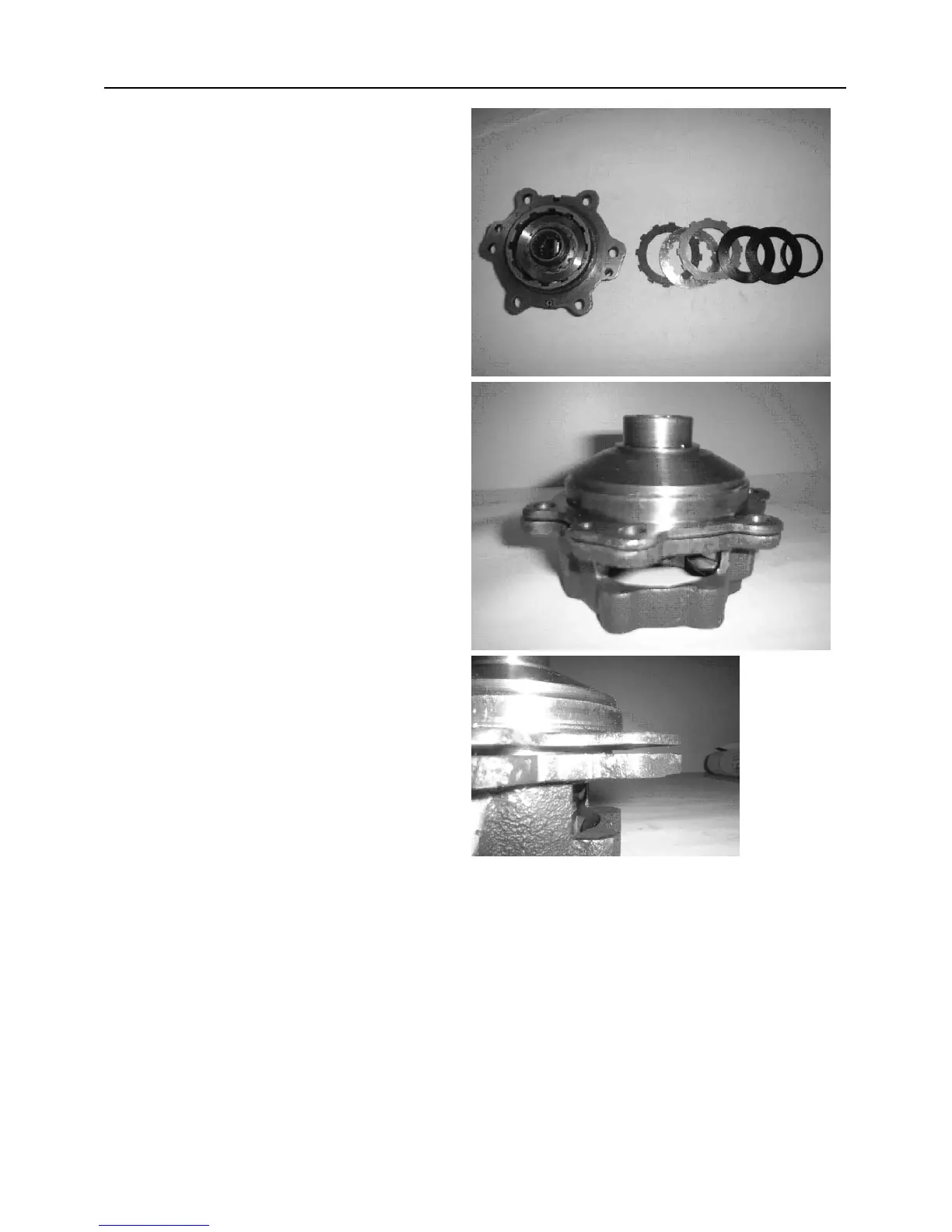

2.
Install bevel gear
, gear axle washer
, outer
double clutch plate ,differential plate, outer
single clutch plate, springs, spring seat.
3. Install dif
ferential cap
A.
4. Check the preload clearance.
Clearance: 1.2—1.5mm
Out of specification
→
change spring seat,
spring, .replace clutch plate as necessary
,
274
