CHAPTER 5 FINAL DRIVE ATV SERVICE MANUAL 09.0
CHAPTER 5 FINAL DRIVE. 5-
29

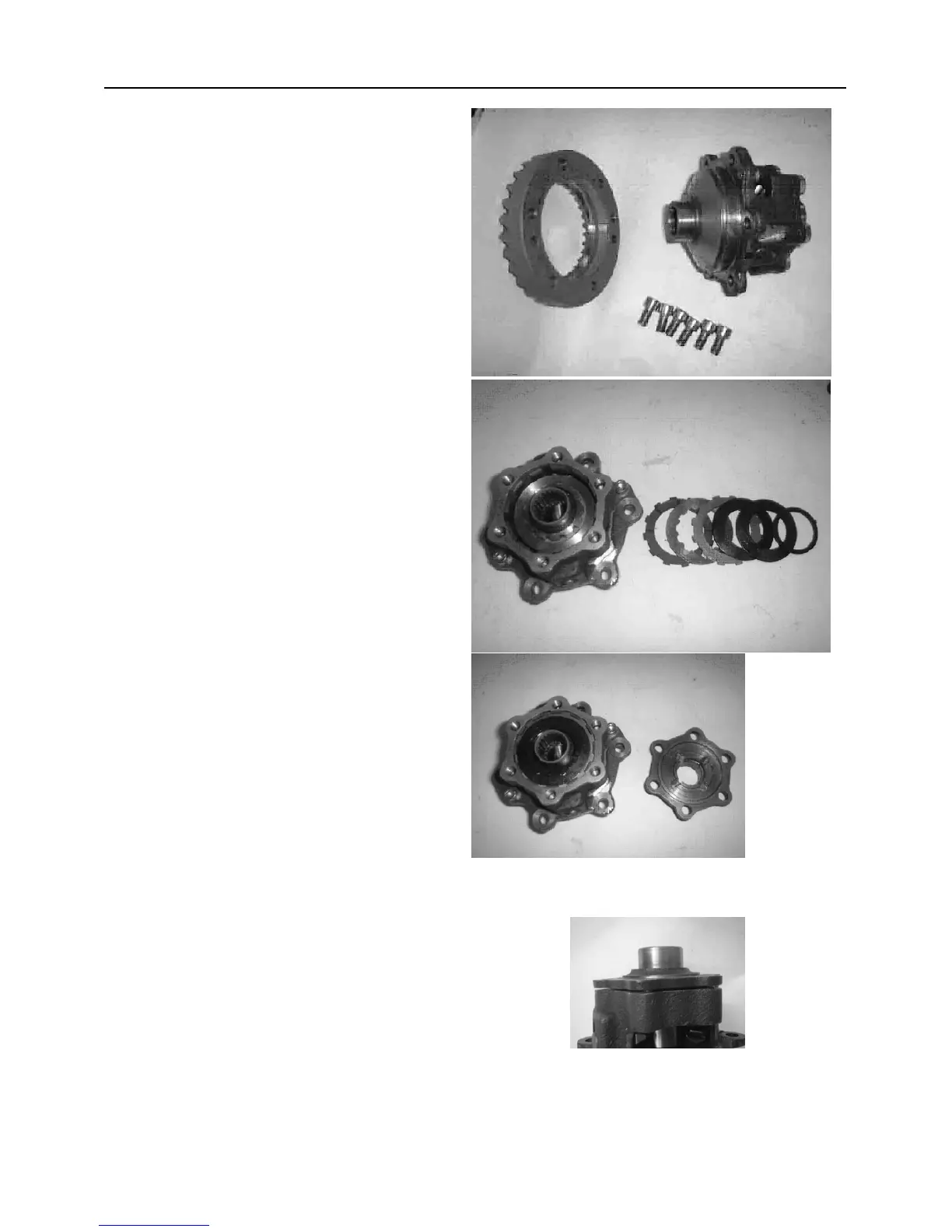

5. Install bevel crownwheel, Apply Loctite
TM
271 （red） to screw threads and torque bolts
to 24ft.lbs. (32Nm)
6. Install bevel gear, gear axle washer, outer
double clutch plate, differential plate, outer
single clutch plate, springs, spring seat.
7. Install differential cap B.
8. Check the preload clearance.
Clearance: 1.2—1.5mm
Out of specification→ change spring seat,
spring, .replace clutch plate as necessary,
9. Apply Loctite
TM
271(red) to screw threads
and torque bolts to 16ft.lbs. (22Nm)
CAUTION: Slip limit torque relate to the preload clearance on the differential, and affect the
Steering Effort (heavy steering). Always field test the ATV carefully and thoroughly after front
gearcase and differential service for vehicle maneuvers and operation.
