Rev: 07.03.18 Page 7
CCD-0001541

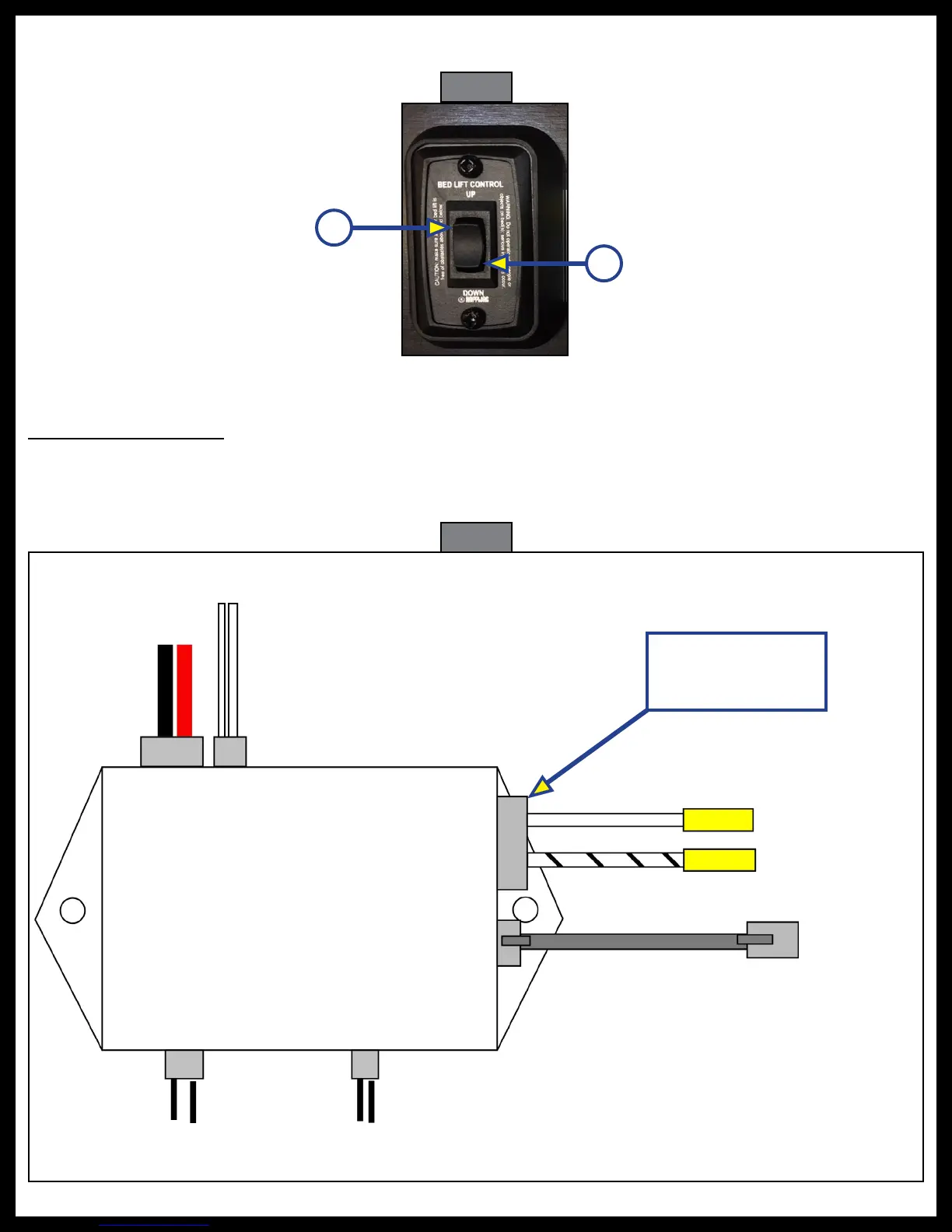

7. Place the switch over the hole, and secure it with the screws provided. Make sure the switch is
positioned such that both screws will securely hold the switch in place (Fig. 13).
Fig. 13
Wiring Diagram
Relay Control Module
RVIA wiring requirements restrict the length of exposed motor leads to a maximum of 10". Therefore,
the Relay Control Module must be placed above the motor or on the wall of the vehicle in close enough
proximity to the motor that the 10" motor lead will reach.
Fig. 14
To
Motor
To
Brake
Butt
Connectors
+12V DC
Ground
}
10 AWG
from power
source
RJ-11 Communication
Cable
To Upper
Limit Switch
To Lower
Limit Switch
RELAY CONTROL MODULE
(Top View)
3-pin 2-pin
Power Pigtail
supplied with Relay
Control Module
NOTE: RJ-11 cable must be straight
through cable — standard
telephone cable will not work.
All outputs are marked on the underside of the module.
A
B
To Next Page
