Rev:11.08.19
Page 155
CCD-0001573-08
Valve
Extend
Valve Block
Valve
Retract
Valve Block
Power Unit
Leveling
Mid Jack
Leveling
Rear Jack
Leveling
Rear Jack
Leveling
Mid Jack

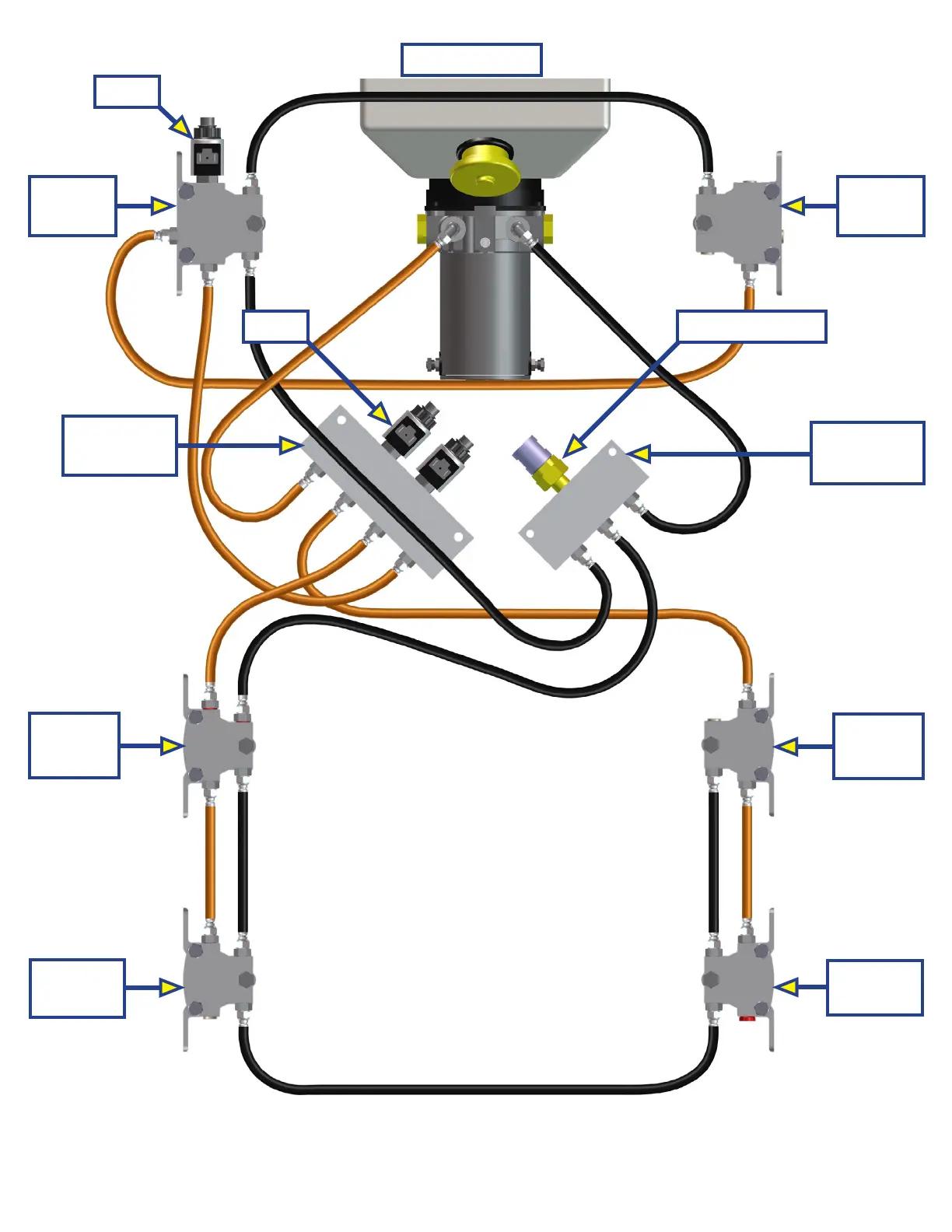

6-Point Hydraulic Diagram
Landing
Gear
Landing
Gear
Pressure Switch
154
156
