4. Back the tow vehicle into position to align the tow vehicle hitch and trailer coupler with each other.
5. Press "RETRACT" button (Fig. 15E) then press the "FRONT" button (Fig. 15B) to retract the tongue jack
until the coupler sets into position on top of the tow vehicle hitch.
6. Latch the tow vehicle hitch and connect any wires, chains or sway controls that may be equipped
between the tow vehicle and trailer.
7. Press the "RETRACT" button (Fig. 15E), then press and hold the "FRONT" button (Fig. 15B) until the
Power Tongue Jack fully retracts.
NOTE: To utilize the Power Tongue Jack for the hitching process, see "Operation - Power Tongue Jack."

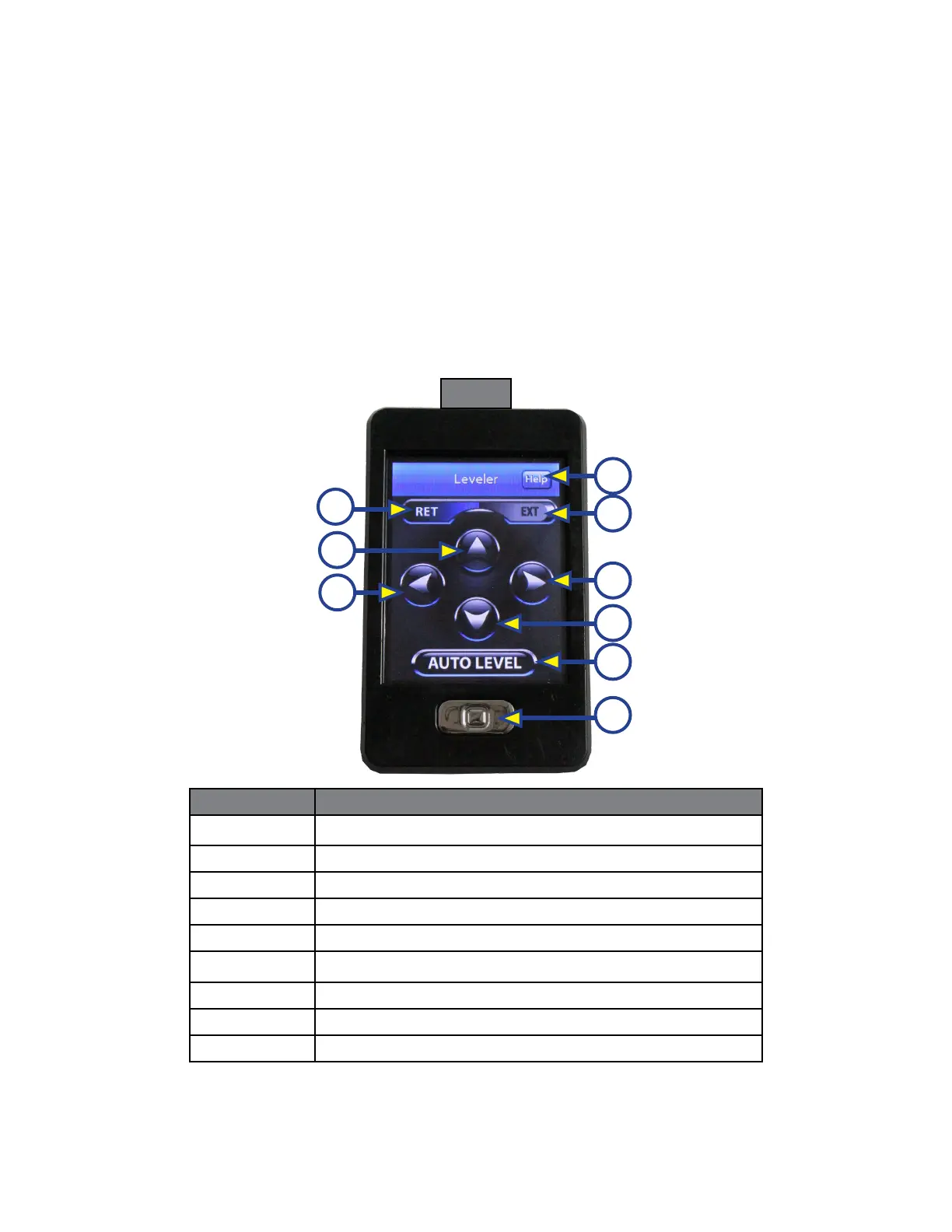

Touch Panel Diagram - Linc Remote Control - Optional
NOTE: When the OneControl Touch Panel is placed in Manual Mode, the Linc Remote will operate the jacks
in a similar fashion as the OneControl, with the exception of operating individual jacks. Jacks will
operate in pairs only. See "Operation - OneControl Touch Panel".
C
B
A
E
D
I
Callout Description
A RET - Retracts front and rear jacks.
B Front Arrow - Operates front jacks.
C Left Arrow - Operates left rear jacks.
D Help - Provides contact information for LCI.
E EXT - Extends front and rear jacks.
F Right Arrow - Operates right rear jacks.
G Rear Arrow - Operates rear jacks.
H AUTO LEVEL - Initiates Auto Level sequence.
I Power Button - Turns remote control "On" and "Off".
F
G
H
Fig. 16
