lippertcomponents.com 574-537-8900 Rev: 02.17 Solera
®
Power Awning
Awning Wiring
1. Pull the wires from the unit through the support arm
assembly. These wires may be located at the bottom or
the top of the support arm assembly.
2. Connect wiring from the unit to the switch and the
awning drive head per the wiring diagram below (Fig.9).
NOTE: Check the switch. If the awning is running in reverse
of what the switch indicates, reverse the wires.
NOTE: Solera Power Awning motors come stock with an
internal 6A auto reset breaker. If this breaker trips, it will
take approximately 30 seconds to reset. LCI recommends
that the awning be wired into a 15A circuit.
NOTE: All wire to be 14 AWG or larger as necessary to
provide 12V minimum at all times at the connection to the
LCI-supplied power cable.

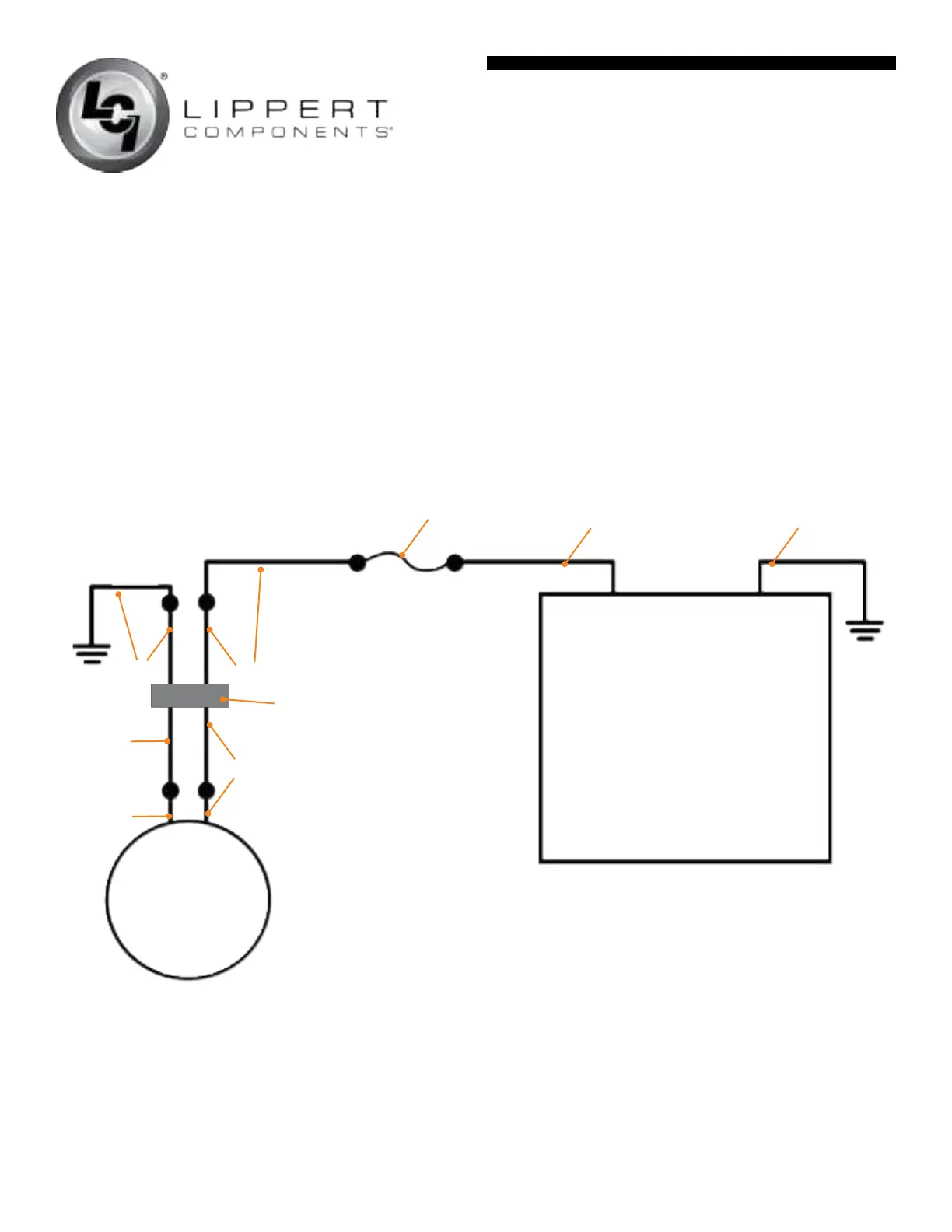

Fig.9
white
power
15A circuit per RVIA code
(OEM Supplied)
ground
manual
rocker
switch
motor
battery, power
source or converter
red
blue
red
black
