CONVERSION FROM MANUAL
PULL STRAP TO POWER AWNING
TI-164
AWNINGS
Battery, Power
Source or Converter
Black
Red
AWNING
Ground
Power
Red
Black
Manual
Rocker
Switch

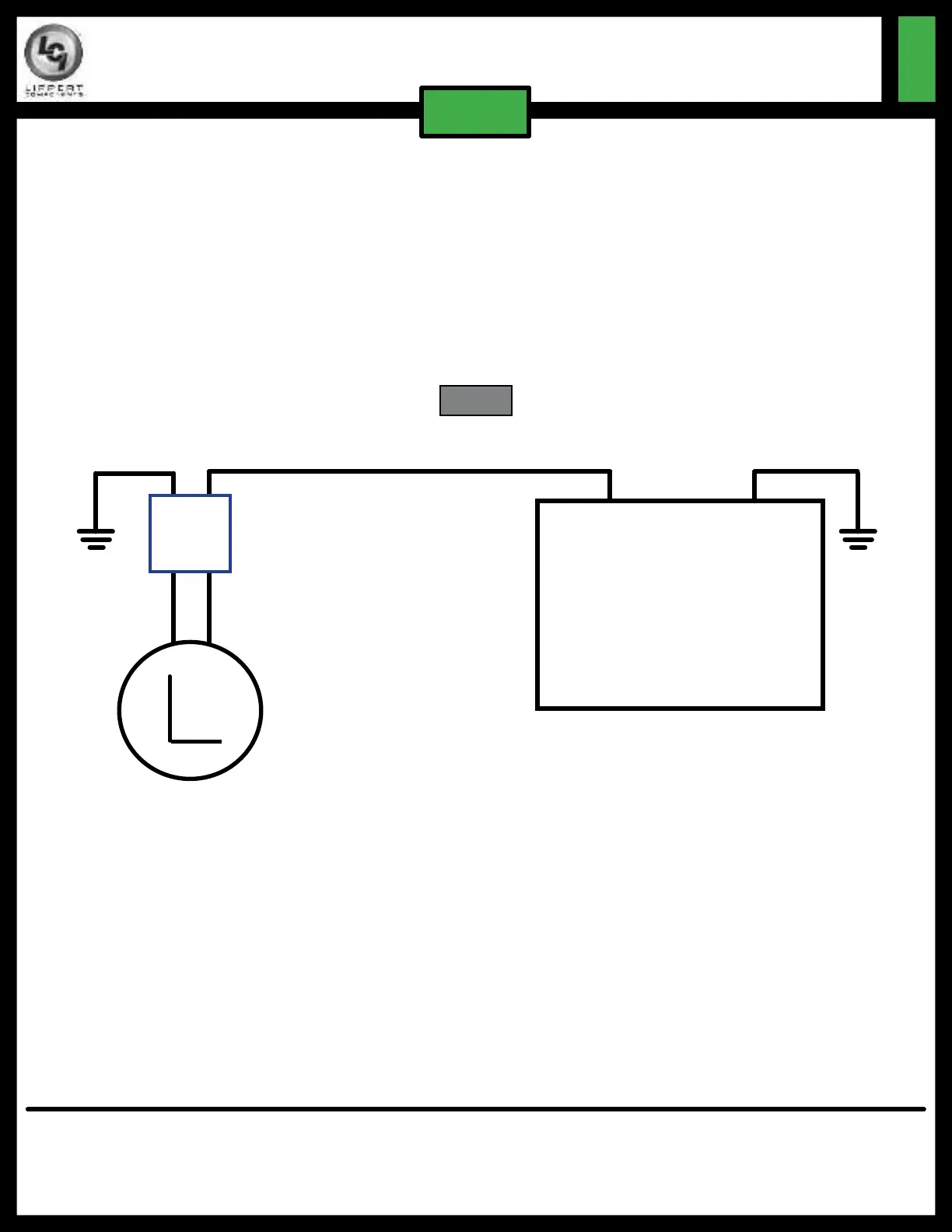

Wiring Diagram
NOTE: Solera® Awnings are equipped with a 6A Auto Reset breaker supplied by LCI.
NOTE: The motor comes stock with internal thermal protection. LCI recommends that the awning be on a
15A circuit.
NOTE: All wire to be 14 AWG or larger as necessary to provide 12V minimum at all times at the connection
to the LCI-supplied power cable.
Fig. 14
As a supplier of components to the RV industry, safety, education and customer satisfaction are our primary concerns.
