2. DESCRIPTION OF THE DEVICE

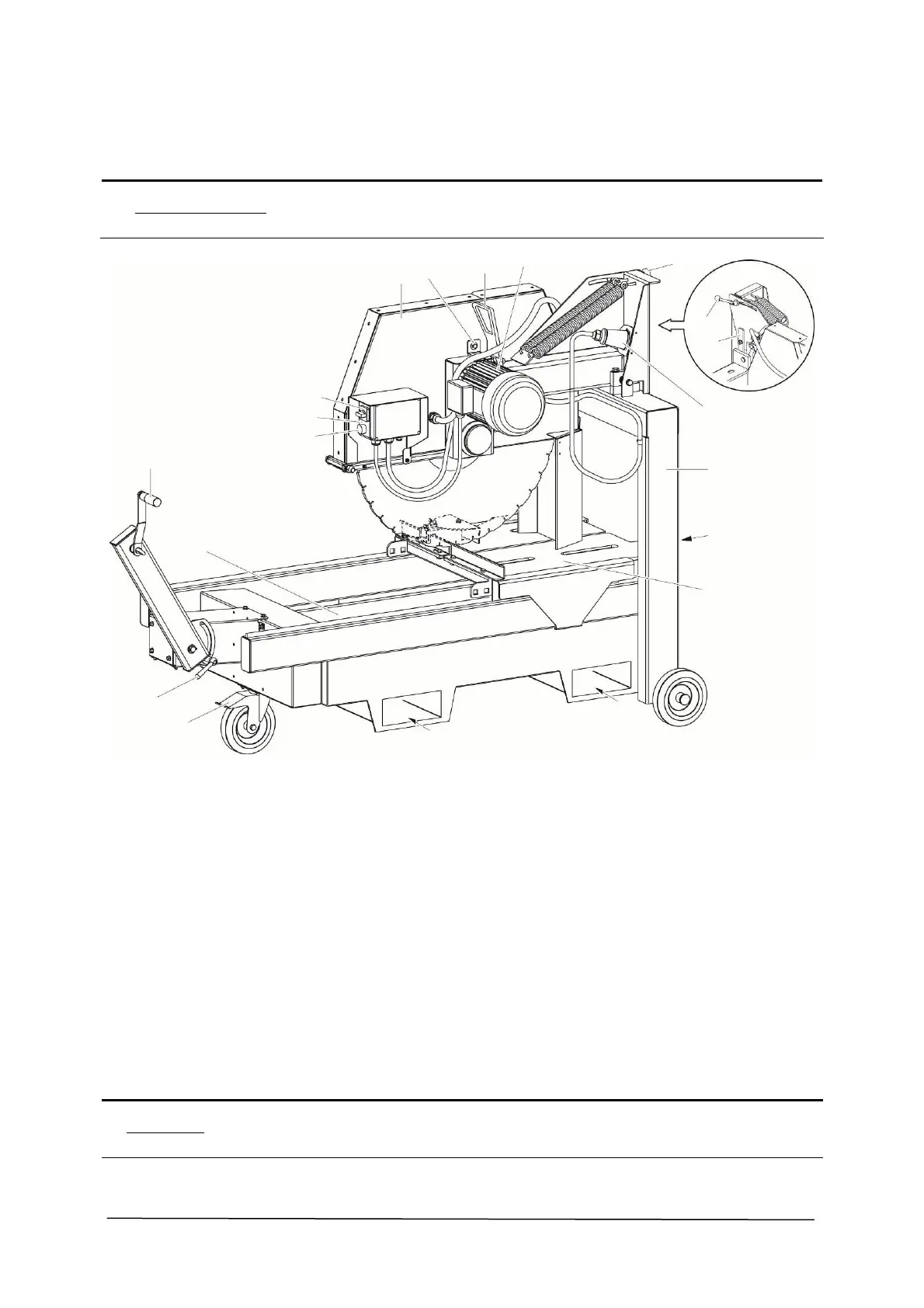

2.1. Name of machine parts
Pos. 1 Main switch Pos. 10 Locking for saw table
Pos. 2 Switch box Pos. 11 Saw table
Pos. 3 Emergency stop switch Pos. 12 Crane eye
Pos. 4 Saw hood Pos. 13 Water tank with water pump
Pos. 5 Hexagon head screw for
fastening the saw hood
Pos. 14 Forklift supports
Pos. 6 Motor/ Gears Pos. 15 Steerable wheel with parking brake
Pos. 7 Clamping lever for cutting
height adjustment
Pos. 16 Clamping lever for feed unit
(only DTS 901-V)
Pos. 8 Power plug Pos. 17 Feed crank (only DTS 901-V)
Pos. 9 Frame Pos. 18 Locking for saw arm
2.2. Safety guards
Pos. 3 Emergency stop switch Pos. 4 Saw hood
4
5
12
11
10
9
8
18
(7)
6
1
2
3
17
13
16
15
14
14
7
