-22-

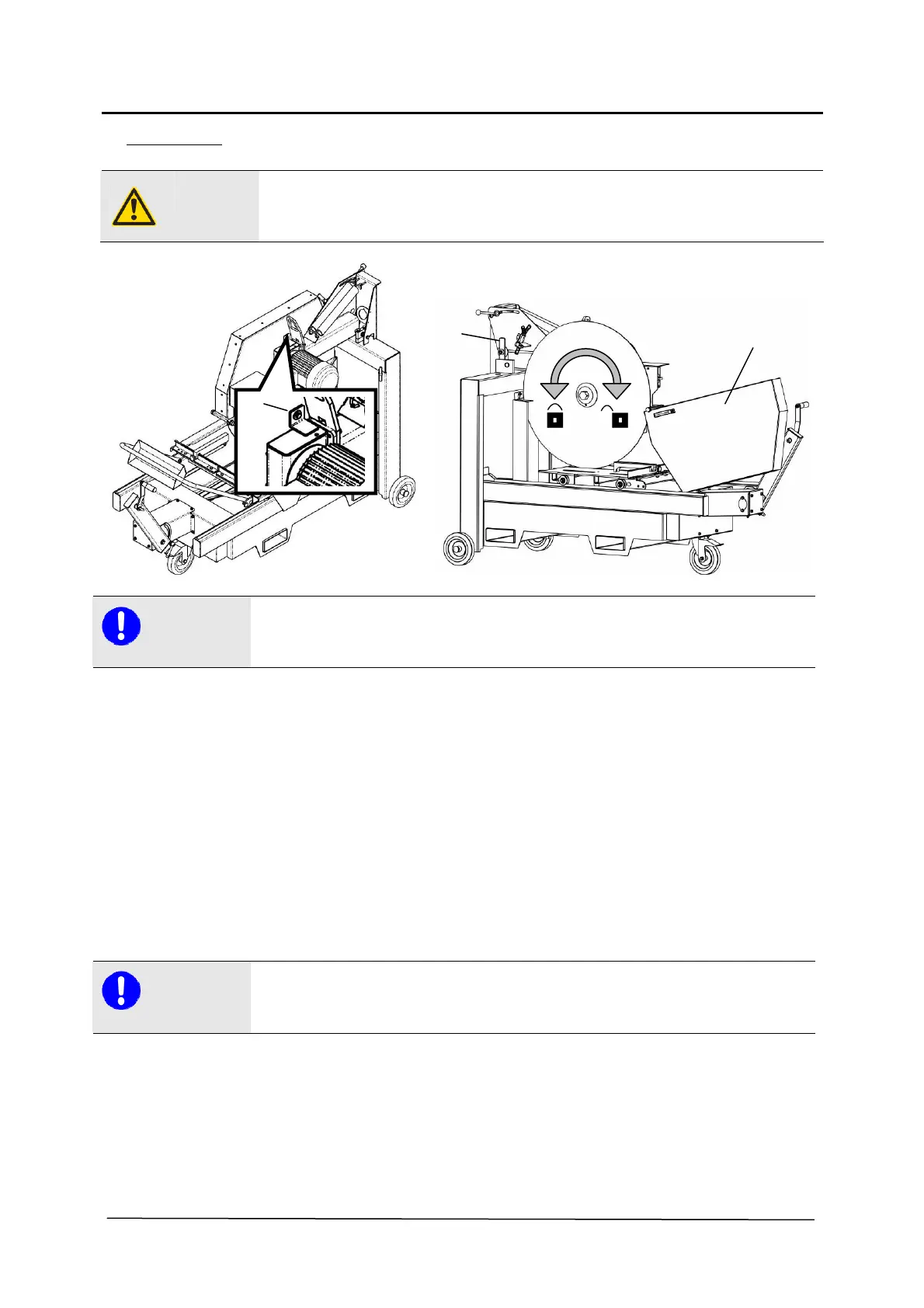

3.9. Install saw blade
Danger!
Removing or opening of the saw hood or reaching into the rotating saw blade during cutting is
prohibited. These works may only be carried out with the saw blade at a standstill and the motor
turned off.
Note
No rotating tools which have a maximum rotation speed smaller than the nominal speed of the
machine can be used.
Defective or broken tools must immediately be replaced.
In order to change the saw blade, the following steps must be carried out:
Put the main switch (Pos. 1) in the Off position and disconnect the power plug from the
power source.
Height adjustment of the clamping lever (pos. 7) must be tightened.
Remove water hose coupling on the saw hood
Loosen hexagon head screw (pos. 5) with the open ended spanner SW 13
Swing saw hood (pos. 4) forward onto the table
Open flange nuts (left-hand thread) with the open ended spanner SW 46 and remove the
pressure disc
Remove the saw blade from the machine
Note
When installing the saw blade, ensure that the flange surfaces are clean. The saw blade must sit
directly on the flange. Match the direction of rotation of the saw blade with the rotation direction
arrow on the saw hood.
Insert saw blade
Mount the pressure disc and flange nut and tighten with the open ended spanner SW 46
Plug-in the saw blade protective hood.
Tighten hexagon head screw (pos. 5) with the open ended spanner SW 13
Mount water hose coupling on the saw hood
