-20-
3.4. Water tank and pump
Note
If there is danger of frost, the water pump must be taken out of the water tank (Pos. 13) and the
water circuit must be emptied. Already frozen pumps must be thawed out before turning on.
3.5. Parking brake
Danger!
In order to secure the masonry saw against rolling away, the parking brake must be used.
The parking brake (Pos. 15) is engaged using the steerable wheel.
3.6. Tools (saw blade)
Selection of the saw blade
see 8 Tools

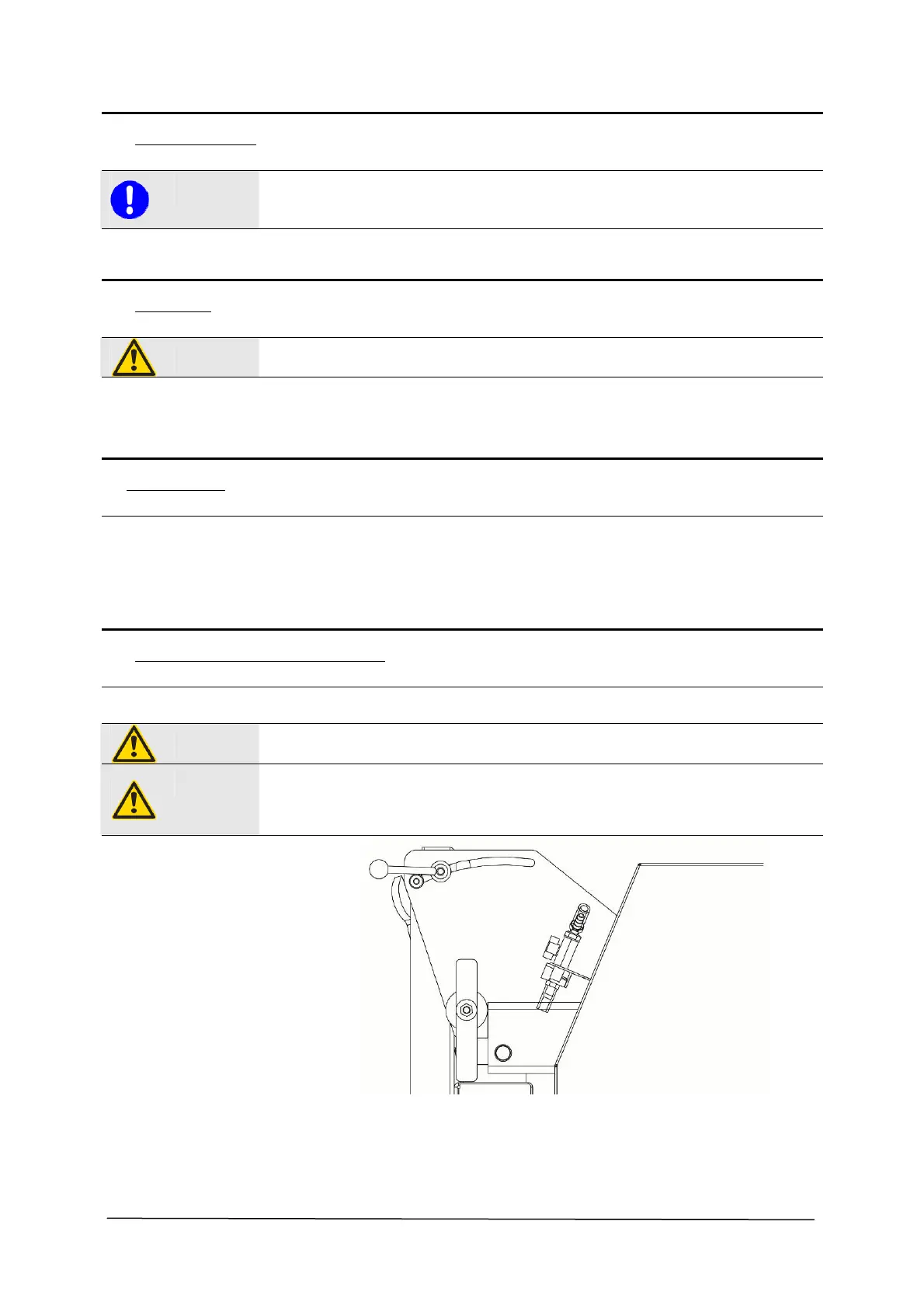

3.7. Clamping lever for cutting height adjustment
The saw head can be adjusted in height by releasing the clamping lever (Pos. 7).
Danger!
The clamping lever (Pos. 7) may only be opened when the saw blade is stopped!
Danger!
During sawing the clamping lever (Pos. 7) must be tightened so that the saw head is in a firm
position. During this the locking of the saw arm (Pos. 18) must be parallel to the frame of the
masonry saw.
The safety stop is in the pathway of the clamping lever (Pos. 7) and prevents the saw table from
being sawn into.
