Lite-Check INSPECTOR 930 - 7-Way Pin Numbers and Circuits; Remote Control; Operation

LITE-CHECK INSPECTOR 930
16
Operation
· Press and release the designated button.
· Inspect. One light circuit will be activated at a time.
· The Remote Control is keyed to operate with a single unique
tester at a time.
· Remote Control operations are parallel to the panel keypad.
· Range is over 100 feet with AA batteries in good condition.
7-Way Pin Numbers and Circuits
7-WAY PIN
NUMBER
WIRE COLOR CIRCUIT
1 WHITE GROUND
2 BLACK MARKER
3 YELLOW LEFT TURN
4 RED BRAKE
5 GREEN RIGHT TURN
6 BROWN TAIL
7 BLUE AUXILIARY

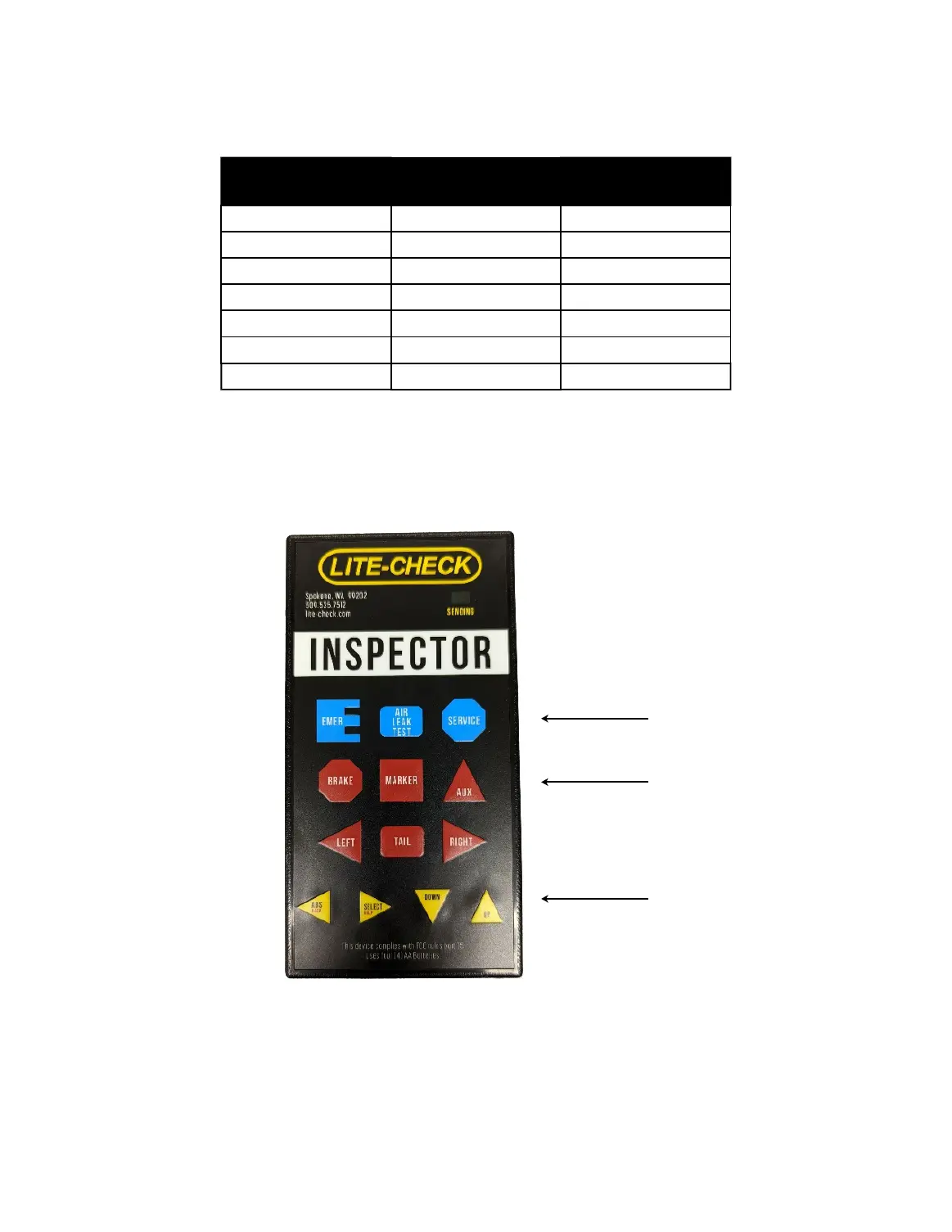

Remote Control
The remote control allows the vehicle technician to operate air and electrical functions around the
vehicle and observe the responses.
AIR TESTING
ELECTRICAL TESTING
ABS TESTING
