Circuit Condition Messages
Note: LITE-CHECK automatic testers are “live” meaning any changes in circuit
conditions are immediately detected and displayed by the tester.

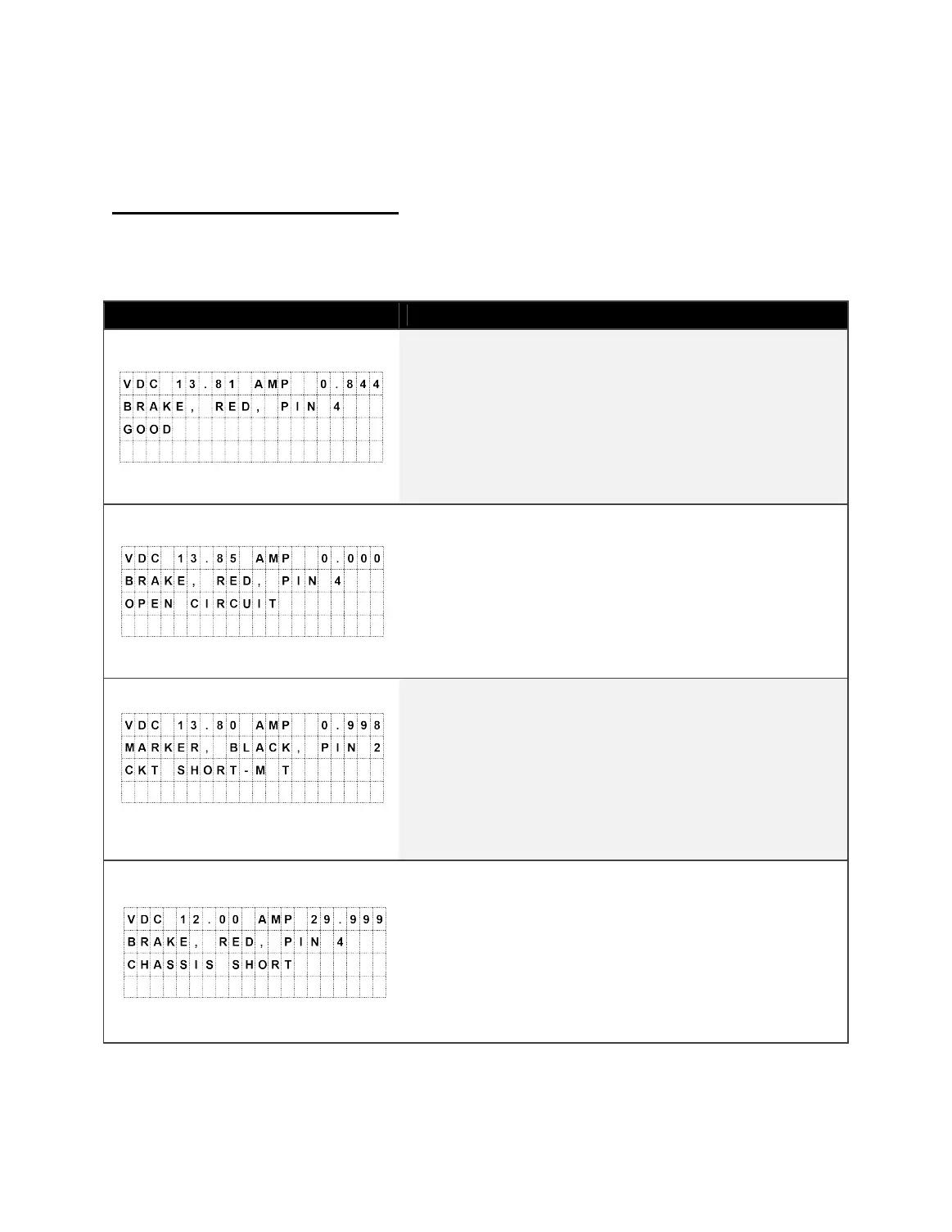

Display
Details
“GOOD” – Circuit Passes
The circuit indicator light is on. The digital display
indicates the circuit under test, current draw, voltage
and a GOOD circuit.
“OPEN” – Open wire and no amperage load
The panel circuit indicator light is on and the
“OPEN” fault alarm sounds. The digital display
indicates the circuit under test, current draw, voltage
and an OPEN circuit fault.
“SHORT” – Circuit wires are in contact
The panel circuit indicator “MARKER“ light
illuminates, and the “SHORT” fault alarm
Sounds. The digital display indicates the circuit
under test, current draw, voltage and a SHORTED
circuit fault between the MARKER and the TAIL.
“CHASSIS SHORT” – Circuit wire is in contact
with chassis, frame, return or ground check. The
panel circuit indicator light is on and the
“CHASSIS” fault alarm sounds. The digital display
indicates the circuit under test, current draw, voltage
and a CHASSIS circuit fault. The 930 retries the
circuit once per second.
