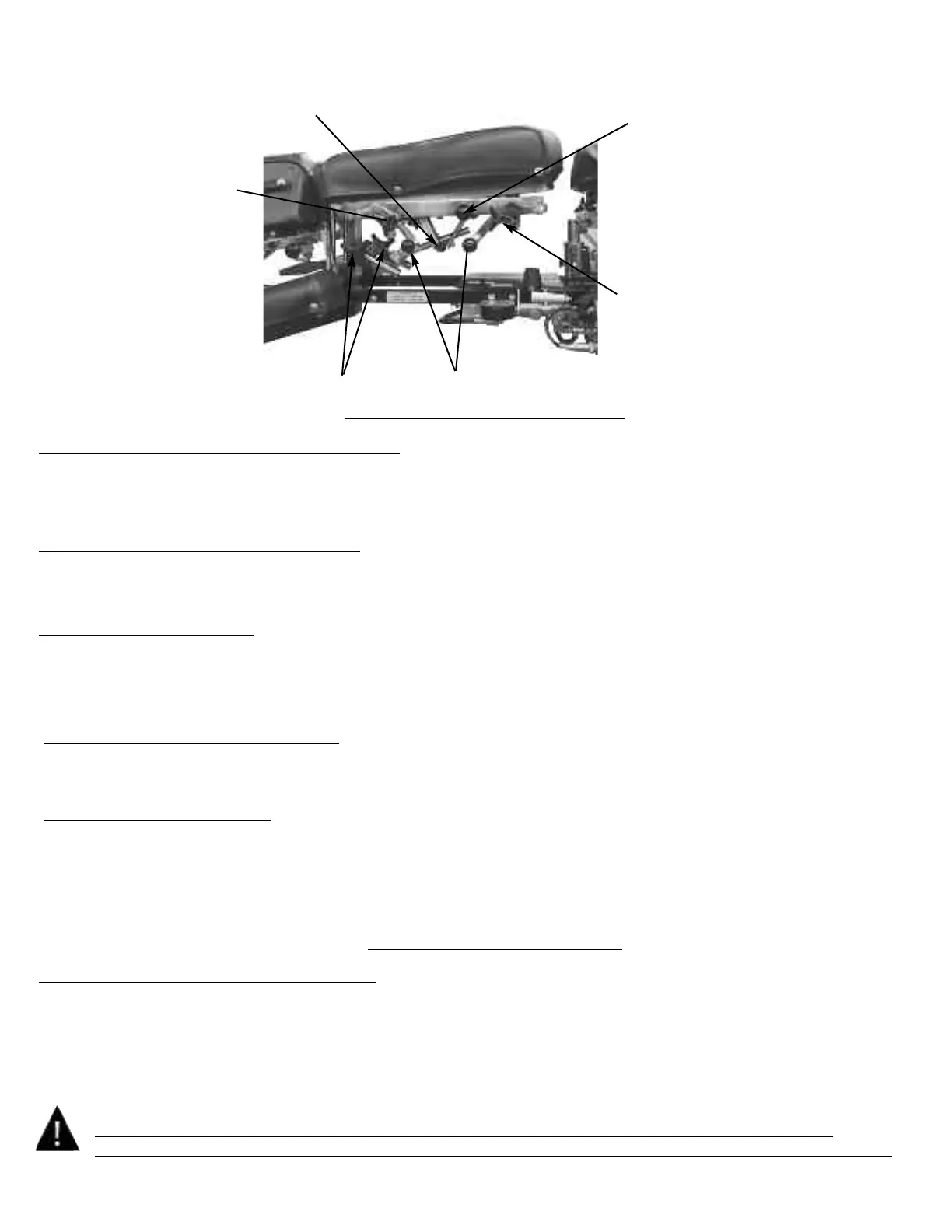

FULL DROP CHEST CUSHION
W/OPTIONAL SPRING BREAKAWAY
# 1 Cocking Handle
#2 Tension Control Knob
Optional Spring Breakaway Chest
To Engage Spring Breakaway Chest Cushion
1. Pull on Spring Breakaway Knob (No. 2) (facing the right side of the table) to unlock.
2. The resulting floating effect will allow the cushion to gently drop under pressure and spring back when
released.
To Lock the Spring Breakaway Cushion
1. Gently pull up on chest cushion to full horizontal position, then Push on Spring Breakaway Knob (No. 2)
(facing the right side of the table) to lock.
Spring Breakaway Tension
1. Turning the tension control (No. 3) clockwise or counter clockwise will increase or decrease the spring breakaway tension.
Right side: Clockwise - Decreases Tension Counterclockwise - Increase Tension
Left Side: Clockwise - Increase Tension Counterclockwise - Decrease Tension
Full Drop Chest - Manual Drop
Cocking the Drop Chest (Dorsal or Lumbar)
1. Pull up on the Cocking Handle (No. 1) to cock the desired drop cushion.
2. Adjust the tension on drop by turning the Tension Control Knob (No. 2)
Right side: Clockwise - Decreases Tension Counterclockwise - Increase Tension
Left Side: Clockwise - Increase Tension Counterclockwise - Decrease Tension
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE
ADJUSTING PATIENT. KEEP FINGERS AWAY FROM BOTTOM OF CUSHION TO AVOID PINCHING
Page 10
#2 Spring Breakaway Control Knob
#2 Tension Control Knob
#3 Spring Breakaway Tension Control
#4 ADJUSTABLE HEIGHT HANDLE
Height Adjustment of Chest Cushion
1. Lift the rear corners of the cushion.
2. Release the cushion when the desired angle is reached and the cushion will automatically lock into place.
Tilting Chest Cushion Down
1. Support the cushion at the rear corners.
2. Lift the Adjustable Chest Handle (No. 4) toward the ankle cushion to release the cushion.
3. Slide the cushion to desired angle.
4. Release the Adjustable Chest Handle (No. 1) first and then the cushion to lock into desired height.
