Automatic Cocking Drops
Page 11
Chest & Lumbar Drop - Manual
To cock the Drop Chest or Lumbar Cushion:
CAUTION: The drop cushion tension should be checked and tested before adjusting patient. KEEP FINGERS
AWAY FROM BOTTOM OF CUSHION TO AVOID PINCHING.
1) Pull up on the Cocking Handle (No. 1) to cock the desired cushion
2) Adjust the tension on either cushion by turning the Tension Control Knob (No. 2)
a. Right Side: Clockwise - Decrease Tension Counterclockwise - Increase Tension
b. Left Side: Clockwise - Increase Tension Counterclockwise - Decrease Tension
Drop Chest
Dorsal & Lumbar

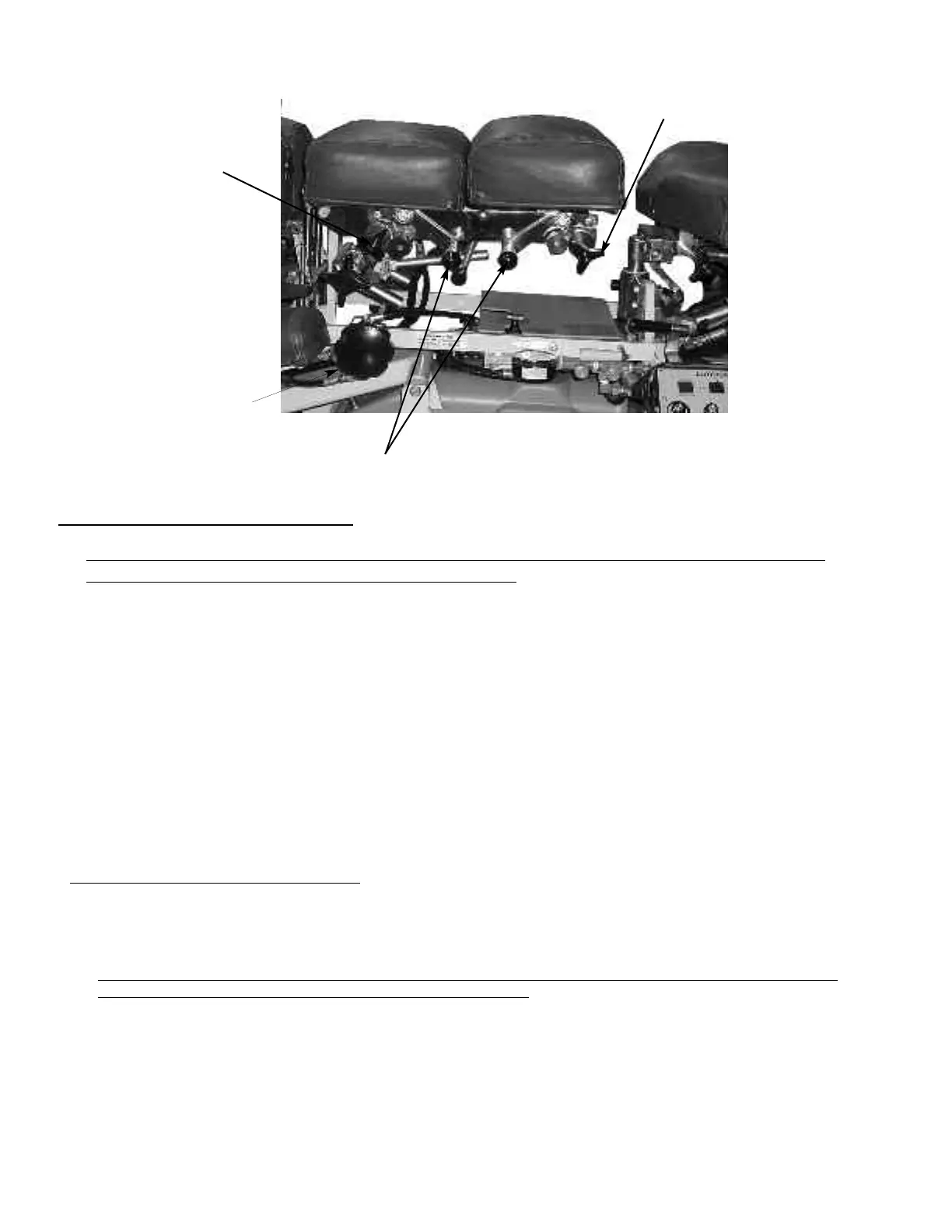

#1 Cocking Handle
#2 Tension Control Knob
#2 Tension Control Knob
#3 Auto Drop Selector Knob
Cervical (Head Cushion) Drop - Automatic
To cock the Cervical (Head Cushion) Drop :
1) Rotate the Selector Knob (No. 3) to “C” to Select the cervical (Head Cushion) drop
2) Step on white strip to activate the auto cocking drop
CAUTION: The drop cushion tension should be checked and tested before adjusting patient. KEEP FINGERS
AWAY FROM BOTTOM OF CUSHION TO AVOID PINCHING.
3) Adjust the tension on the drop by turning the Tension Control Knob (Refer to Page 5 for Tension Adjustment Instructions).
To Next Page
