Lloyd 402 Flexion Elevation - Page 40

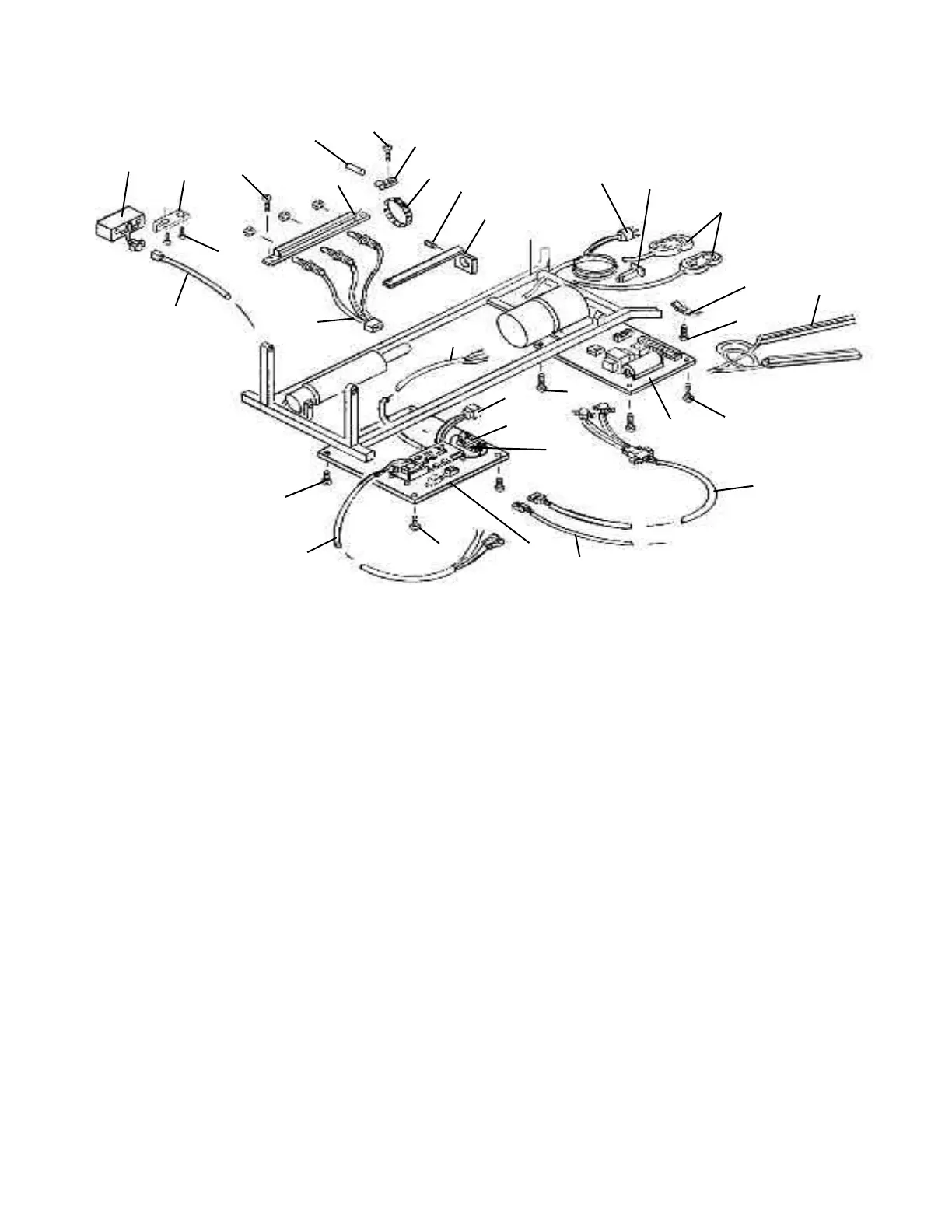

ELECTRICAL ASSEMBLY
EHA & AUTO DROPS
20
19
2
2
13
14
15
22
23
9
11
12
10
8
4
21
5
6
17
2
1
2
18
16
3
2
7
19
2
24
25
ITEM PART N0. DESCRIPTION QTY.
1A 44969 ELECTRICAL UNIT ASS’Y, w/ EHA 1
1B 44968 ELECTRICAL UNIT ASS’Y, w/ EHA & AUTO DROPS 1
2 21982 SCREW, MACHINE, PAN HD, #8-32UNF X 1/2 12
3A 44970 EHA DRIVER BOARD ASS’Y, NO DROPS 1
3B 44967 EHA DRIVER BOARD ASS’Y, w/ AUTO DROPS 1
4 44081 PEDAL ASS’Y, DIRECTIONAL CONTROL W/QUIK PLUG-IN 2
5 52073 CLAMP, WIRE HARNESS 5
6 20022 HEX HD. BOLT, ¼-20UNC X 1 1
7 35216 BREAKER, CIRCUIT, 8AMP 1
8 45192 POWER CORD 1
9A 54263 GUIDE COLLAR ASS’Y, ASTRO ELEVATION 1
9B 54267 GUIDE COLLAR ASS’Y, 402 ELEVATION 1
10 22120 SET SCREW, ¼-20UNC X ½ 1
11 24280 ADJUSTABLE CABLE, 2 ½” 1
12 35920 CABLE CLAMP ¼” 1
13 24252 MAGNET 1
14 54259 RAIL ASSEMBLY 1
15 45067 WIRE ASSEMBLY, SENSOR 1
16 45200 CABLE ASSEMBLY, BOARD - SENSOR 1
17 45201 CABLE ASSEMBLY, BOARD – PEDAL 1
18 45193 CABLE ASSEMBLY, AC POWER 1
19 45100 WIRE ASSEMBLY, BOARD – CONRTOL BOX 1
20 44027 EHA CONTROL BOX 1
21 44096 TAPE SWITCH ASS’Y (PAIR) 1
22 54200 SUPPORT BRACKET 1
23 22461 PAN HD. SCREW, #10 X 5/8 2
24 45193 CABLE ASSEMBLY, AC POWER 1
25 36325 FUSE, .25 AMP 1
26 36360 FUSE, 6 AMP 1
26
Page 37
