Lloyd 402 Flexion Elevation - Page 41

14
18
1
6
7
24
23
28
22
21
17
25
26
27
15
29
6
31
16
32
33
19
30
5
4
3
2
8
9
13
20
11
12
ITEM PART N0. DESCRIPTION QTY.
1 44976 ELECTRICAL UNIT ASS’Y 1
2 30910 DIRECTIONAL CONTROL SWITCH 1
3 35216 CIRCUIT BREAKER 1
4 45199 POWER CORD 1
5 38040 SEQUENCE LIMIT SWITCH 1
6 21995 PAN HD SCREW, #10-24UNC X ½ 6
7 20010 HEX HD BOLT, ¼-20UNC X ¾ 1
8 52073 CLAMP, WIRE HARNESS 1
9 44096 SWITCH TAPE ASS’ 1
10 24423 BOX FAN, 110V 1
11 24424 GUARD, BOX FAN 1
12 21989 PAN HD MACHINE SCREW, #8-32UNC X 5/8 3
13 21420 HEX NUT, #8-32UNC 3
14 45204 CABLE ASS’Y, CONTROL BOX 1
15 44005 CONTROL BOX ASS’Y 1
16 44080 FLEXION STOP SWITCH ASS’Y 11
17 38191 TILT LIMIT SWITCH 1
18 21967 PAN HD. MACHINE SCREW, #4-40UNC X 5/8 2
19 44064 DIODE ASS’Y 1
20 36178 POWER CORD, FAN 1
21 22913 STOP COLLAR, ½” 1
22 22912 STOP COLLAR, 3/8” 1
23 22109 SET SCREW, ¼-20UNC X ¼ 1
24 56431 CYLINDER GUIDE BRACKET ASS’Y 1
25 30231 O-RING, ½” 2
26 24140 KNOB, HEIGHT ADJUSTMENT 2
27 30461 ADJUSTMENT KNOB 2
28 24042 SNAP RING 1
29 56435 HANGER BRACKET ASS’Y 1
30 21975 PAN HD MACHINE SCREW, #6-32UNC X ½ 2
31 44016 CONTROL BOX W/ WIRE ASS’Y 1
32 44004 CONTROL PANEL ASS’Y 1
33 21984 PAN HD MACHINE SCREW, M3 X 8MM 4

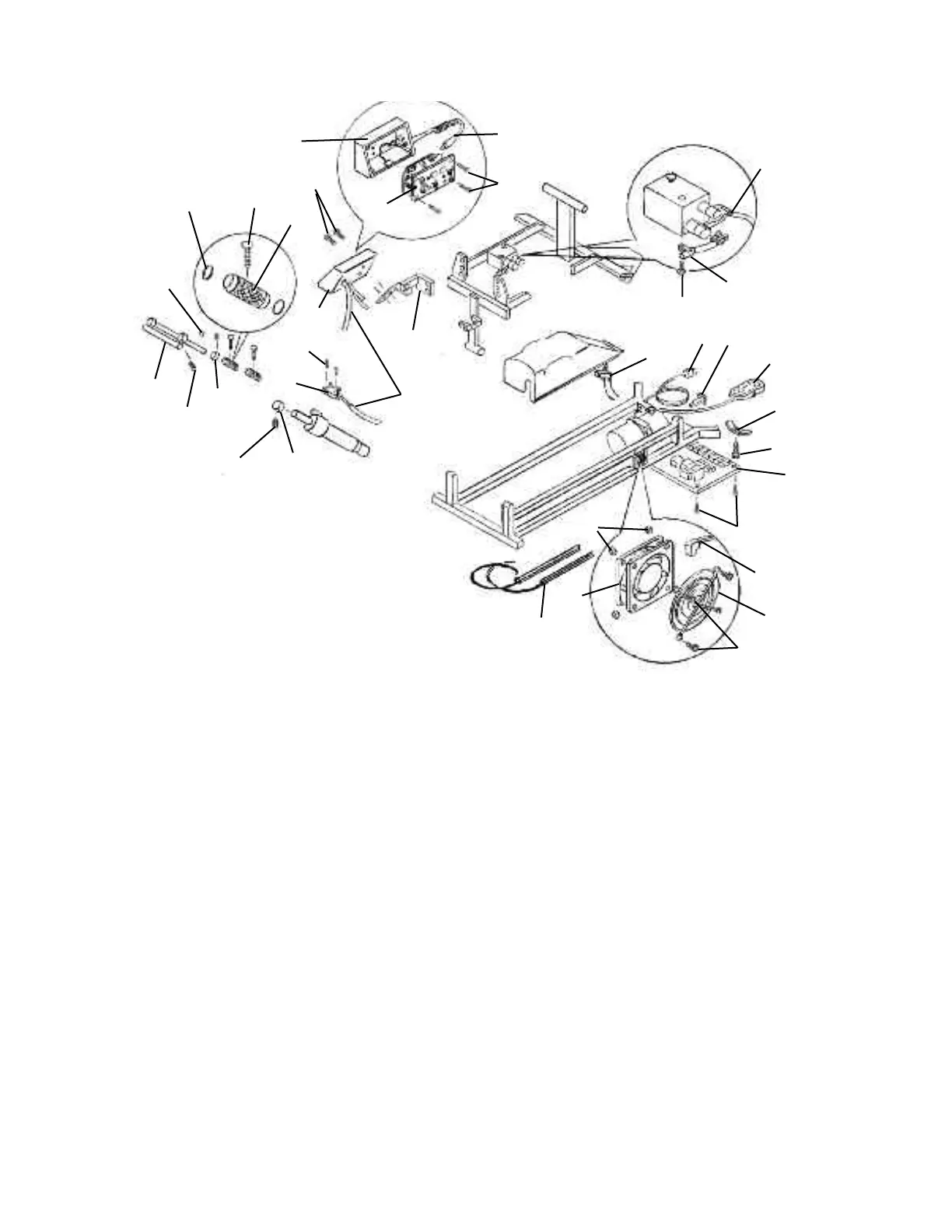

ELECTRICAL ASS’Y
402 AUTO-FLEXION
