1
1
23
4
5
7
7
6
5
6
8
8
9
9
10
12
11
13
14
15
16
17
18
19
20
21
6
22
13
23
24

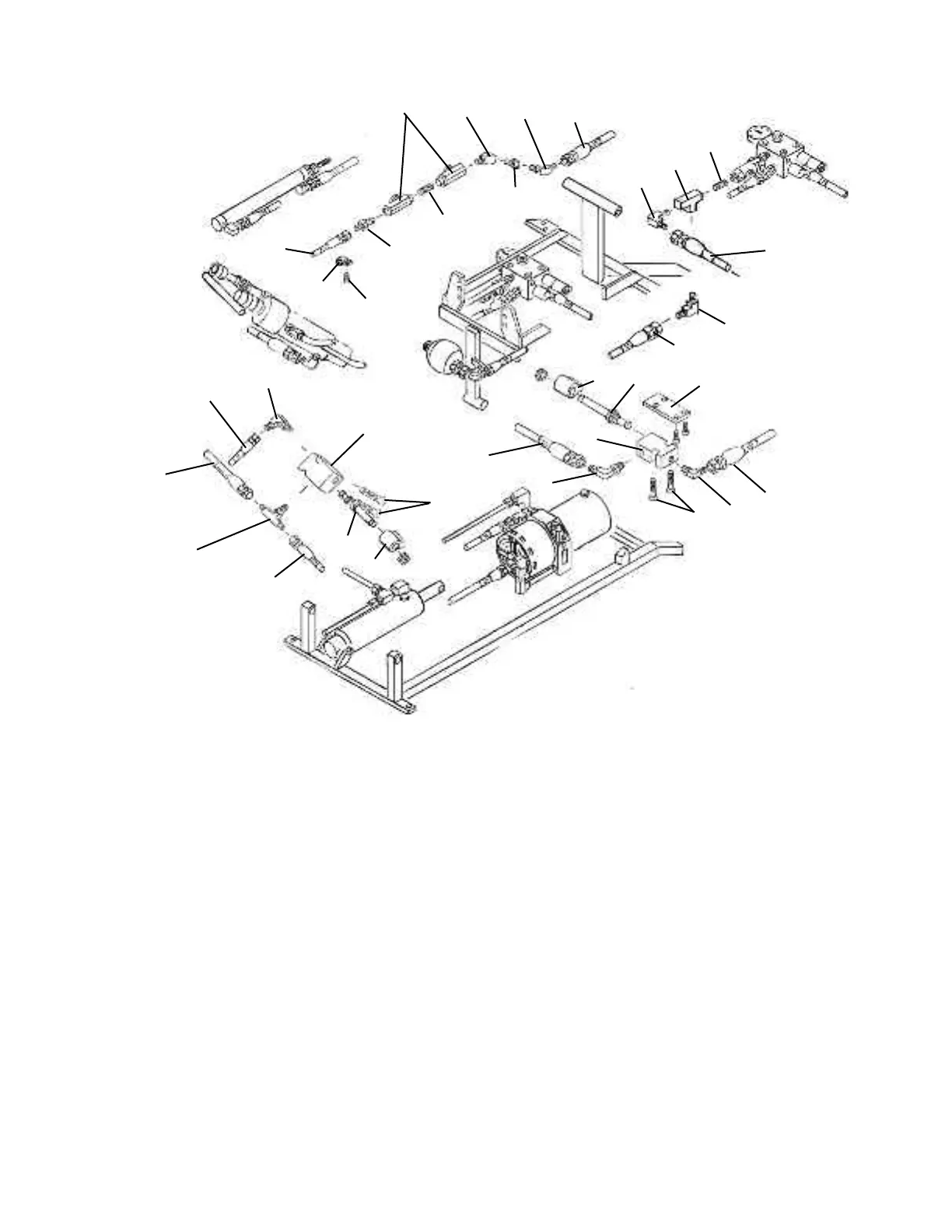

AUTO FLEXION HYDRAULICS
2
3
ITEM PART N0. DESCRIPTION QTY.
1 23544 BLOCK, MANIFOLD, 2-WAY 2
2 23571 VALVE, DOUBLE POPPET 2
3 36012 COIL, SOLENOID, 24 VOLT 2
4 56434 PLATE, VALVE 1/8x 2 x 3 1
5 45270 HOSE, HYDRAULIC, 3/16 X 17 (Block – Dir. Valve) 1
6 23155 FITTING, 90 deg. Morb #4 – ¼ JIC 3
7 22036 SOCKET HD MACHINE SCREW, ¼-20UNC X 1 ¾ 4
8 45212 HOSE, HYDRAULIC, 3/16 X 9 (Block – Block Tee) 1
9 23150 FITTING, 90 deg. ¼ - JIC 2
10 23250 FITTING, TEE, ¼” FEMALE 1
11 23350 PIPE NIPPLE, ¼” CLOSE 1
12 45490 HOSE, HYDRAULIC, ¼ X 20 ½ (Block – Flexion Cyl.) 1
13 45295 HOSE, HYDRAULIC, 3/16 X 25 (Block Tee – Dir. Valve) 1
14 23090 FITTING, 45 deg. 1/8 – JIC 1
15 23030 COUPLER, MALE, 1/8” 1
16 23095 FITTING, 45 deg. 1/8 MALE – FEMALE 1
17 23577 VALVE, DIRECTIONAL FLOW 2
18 23310 PIPE NIPPLE, 1/8 CLOSE 1
19 23040 COUPLER, MALE, 1/8 JIC 1
20 21995 MACHINE SCREW, PAN HD. #10-24unc x ½ 1
21 24279 P-CLAMP, 1
22 45240 HOSE, HYDRAULIC, 3/16 X 13 (Elev. Block-Elev. Cyl.) 1
23 23212 FITTING, TEE, JIC- #4 sae 1
24 45300 HOSE, HYDRAULIC, 3/16 X 31 (Block Tee – Motor) 1
Page 39
