LMF Clima LCM - Page 80

firmware 0.06 Rev.03 D/ E
BMS Modbus RTU RS485
G
+
-

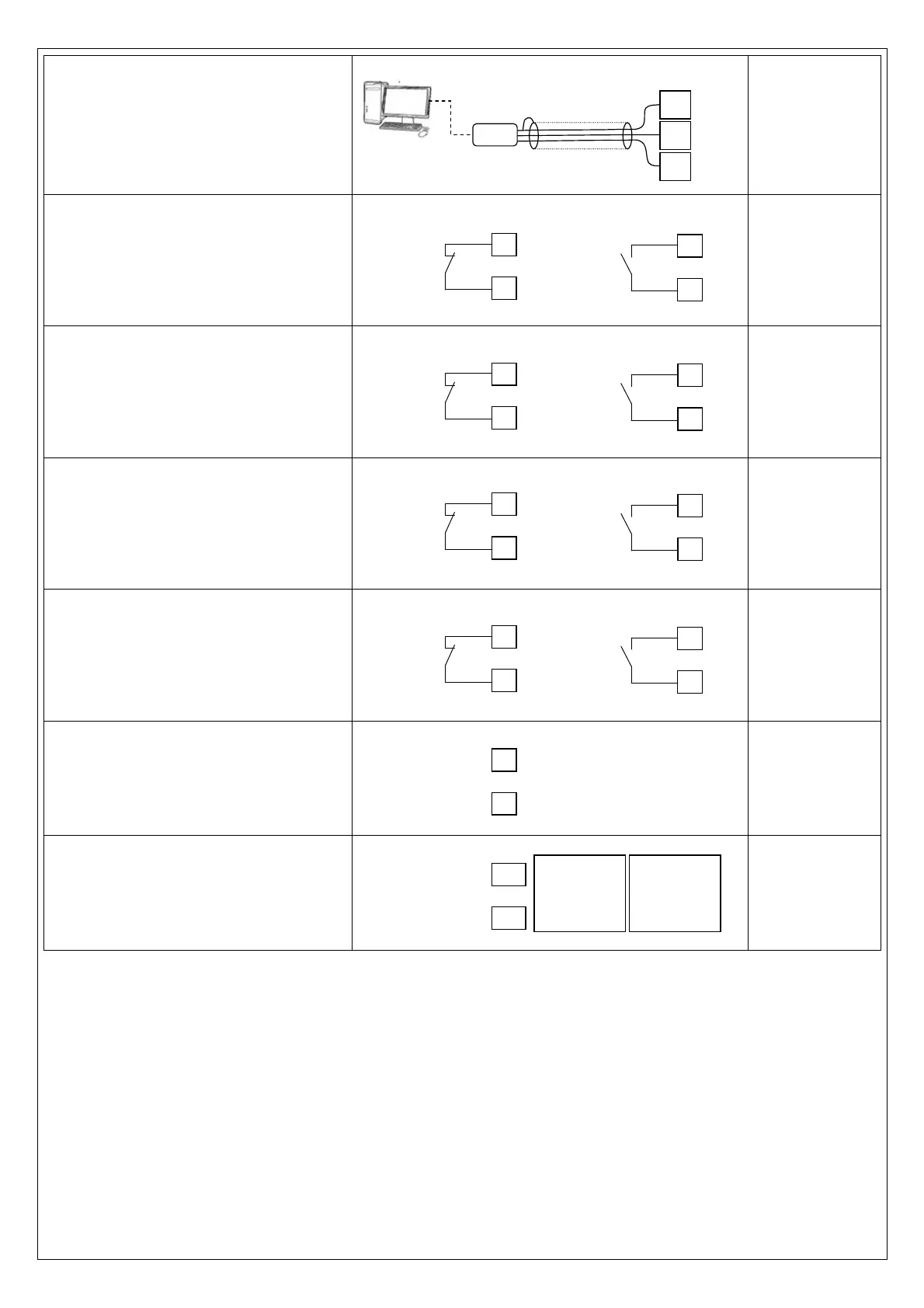

RS-485
Suggested cable for data has
impedance of 100-120 ohm
Cable: BELDEN 3105A EIA Industrial RS-485 PLTC/CM
Rx+/Tx+
Rx-/Tx-
GND
Cambio modo (Estate/Inverno)
Mode change summer/winter
Conmutador de modo verano/invierno
Moduswechsel Sommer / Winter
Changement mode Eté/Hiver
10
0
Caldo
Heting
10
0
Freddo
Cooling
d
Digital input
Inverno
Winter
Estate
Summer
CLAMPS
CLAMPS
Digital input
 (Password= 1)
 
  = yes฀
Allarme incendio (AI)
Fire alarm
Alarma de incendio
Feueralarm
Alarme incendie
11
0
Normale
Normal
11
0
Allarme
Alarm
CLAMPS
CLAMPS
Digital input
Digital input
OFF da remoto (On-Off)
Remote OFF
Off remote
Remote OFF
OFF depuis distance
12
0
On
12
0
Off
CLAMPS
CLAMPS
Digital input
Digital input
฀
Termostato min. acqua calda (THMW)
Min. hot water thermostat
Termostato mìnima agua caliente
Min Warmwasserthermostat
Thermostat min. eau chaude
19
0
Normale
Normal
19
0
Allarme
Alarm
CLAMPS
CLAMPS
Digital input
Digital input
฀
Allarme generale
General alarm
Alarma general
Sammelstoerung
Alarme generale
L8
L9
CLAMPS
Digital output
฀
Estate inverno
Summer winter
Verano invierno
Sommer winter
Eté Hiver
OPEN
----------------------------
Estate
Summer
Verano
Sommer
L14
L15
CLAMPS
Digital output
CLOSE
----------------------------
Inverno
Winter
Invierno
Winter
฀
