CHAPTER 3: PROCEDURES
QUICK LOAD SERVO 65/80
3-3

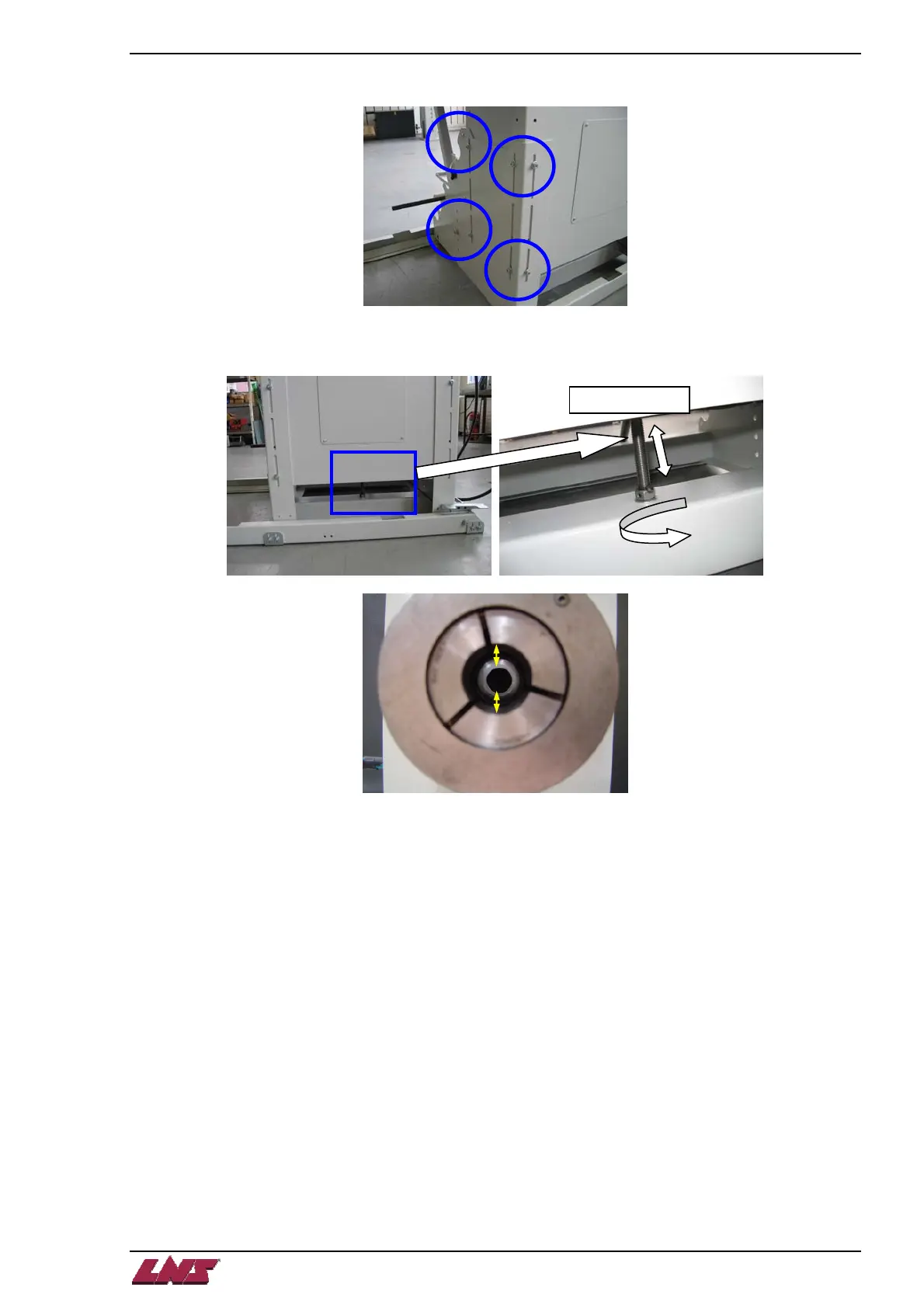

Step 3: Carefully loosen the 12 screws located in the slots on the base of the unit (6 each side). This will allow the
unit to be adjusted up and down.
Step 4: Using the central jackscrew, adjust the unit so that the pusher is centered up and down at the back of the
spindle. Make sure that the unit raises or lowers uniformly.
Central jackscrew
