3- CHAPTER 3: PROCEDURES
3-4

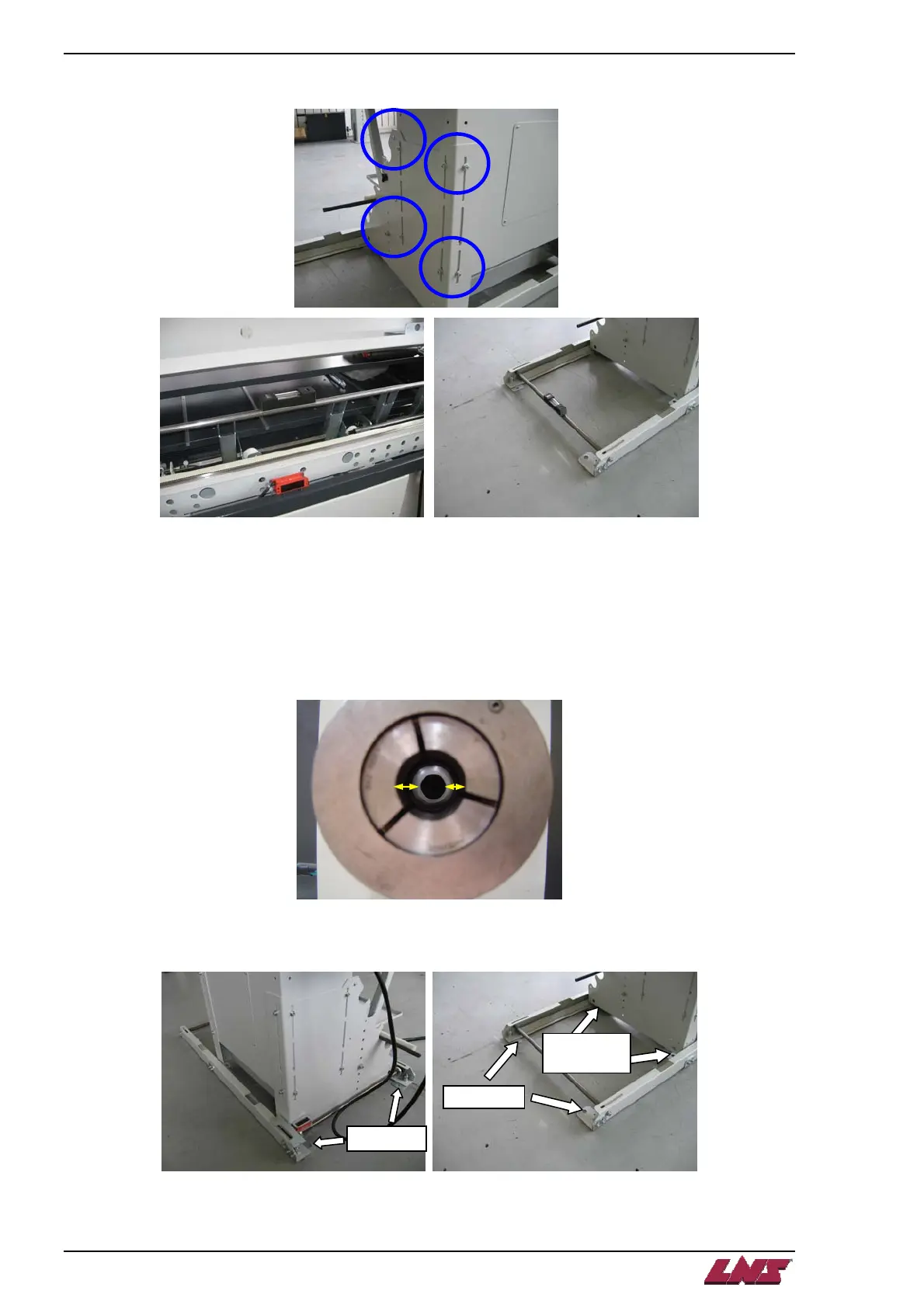

Step 5: Once the pusher is centered up and down, tighten the 12 screws to secure unit and recheck the level of
the unit.
Step 6: Align the unit side to side by centering the pusher in the back of the spindle and then extending the pusher
to the back of the collet and centering it there.
Adjust the rear of the bar feed when centering to the rear of the spindle and the front of the bar feed when
centering to the rear of the collet.
Once the pusher is centered at the back of the collet recheck the alignment at the back of the spindle by
pulling the pusher back. Continue until the pusher is centered at the rear of the spindle and at the rear of
the collet.
Step 7: Once the bar feed has been aligned anchor it using the 4 anchor bolts supplied with the unit. Don't anchor
it at retract rail centers; just let the screws touch the ground.
Anchor here
Don’t anchor
here!!!
Ancho
here
QUICK LOAD SERVO 65/80
