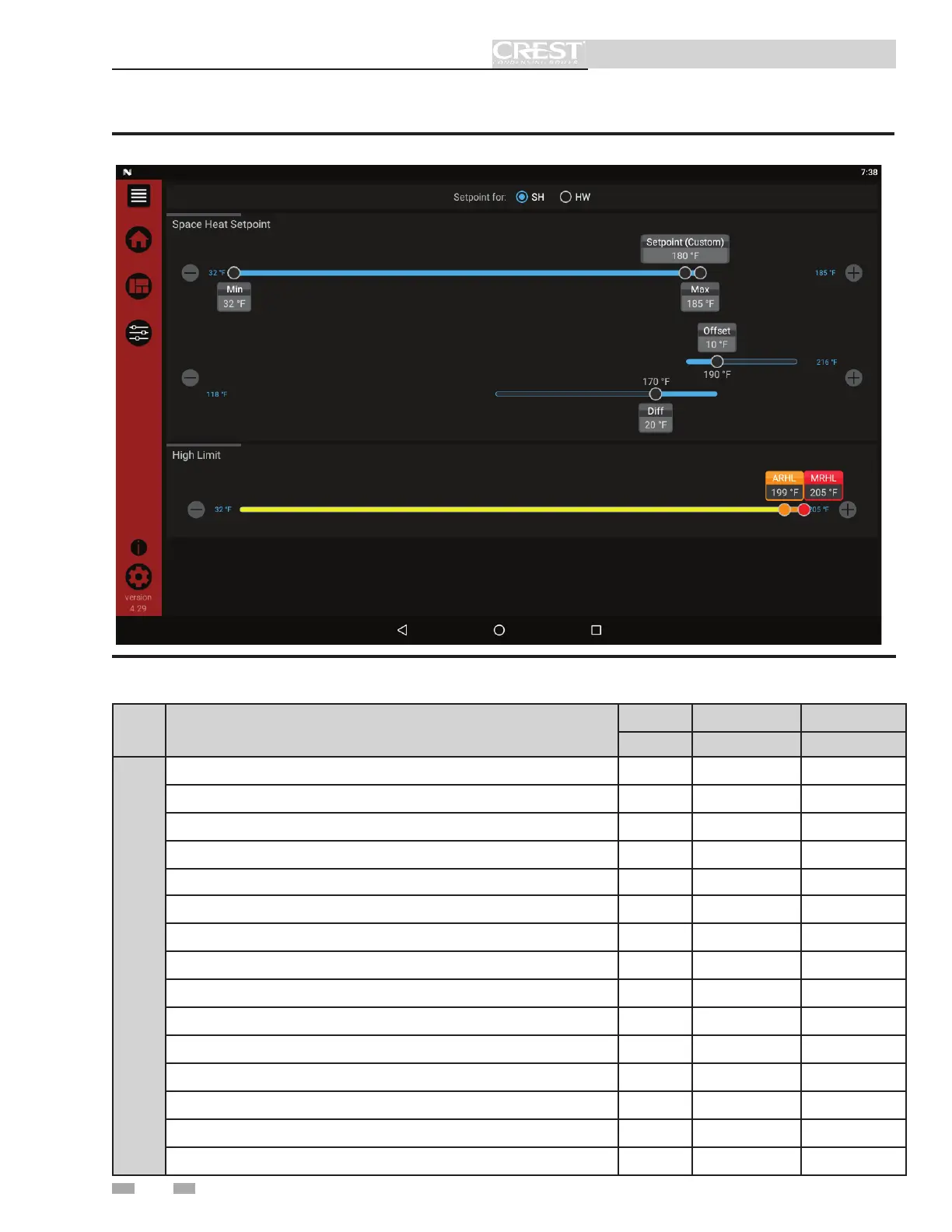

Figure 1-5 Set points SH_Screen A
1 Service
Menu
Parameter Name
(as shown on the LCD screen)
Min
Max
Default
Value Value Value
Space Heat 1 Set point: Set point 32 185 120
Space Heat 1 Set point: Min 32 185 32
Space Heat 1 Set point: Max 32 185 185
Space Heat 1 Set point: Offset 0 36 10
Space Heat 1 Set point: Diff 0 72 20
System Pump Anti-Seize Time 0 21 20
High Limit: ARHL 32 200 199
High Limit: MRHL 32 205 205
DHW Boiler Set point: Set point 32 185 180
DHW Boiler Set point: Offset 0 36 10
DHW Boiler Set point: Differential 0 10 20
DHW Tank Set pont: Set point 32 185 120
DHW Tank Set point: Min 40 185 100
DHW Tank Set point: Max 40 185 130
DHW Tank Set point: Diff 0 10 5
SET POINTS
Table 1B Set Points (This table lists control module parameters; use the sub-tab under the Setup tab to access
them.
