e History Screen shows the status of various counters and faults. Within the History Screen there are two separate sections, the
“Lockout Blocking Fault” and “Runtime History”.
e le side of the screen re ects the “Lockout Blocking Fault” section which allows you to view the last 20 lockout/blocking faults.
Succeeded by each fault is the date and time of when the fault occurred. A three (3) minute graph of sensor data before the fault can
be viewed by selecting the VIEW button.
e “Runtime History” section includes the following information:
• Power hours – Shows the number of hours the control has been powered on since the last reset.
• Running hours – Shows the number of hours that the boiler has been ring since the last reset.
• Ignition attempts – Shows the number of times the control has attempted to ignite since the last reset.
• Successful Ignition attempts - Shows the number of times the control has successfully ignited since the last reset.
• Total Power hours – Show the total number of hours the control has been powered.
• Total Running hours – Show the total number of hours that the boiler has been ring.
• Total ignition attempts – Show the total number of times the control has attempted to ignite.
• Total Successful ignition attempts – Show the total number of times the control has successfully ignited.
e top right of this screen details the running hours based on 4 di erent running positions.
History Screen

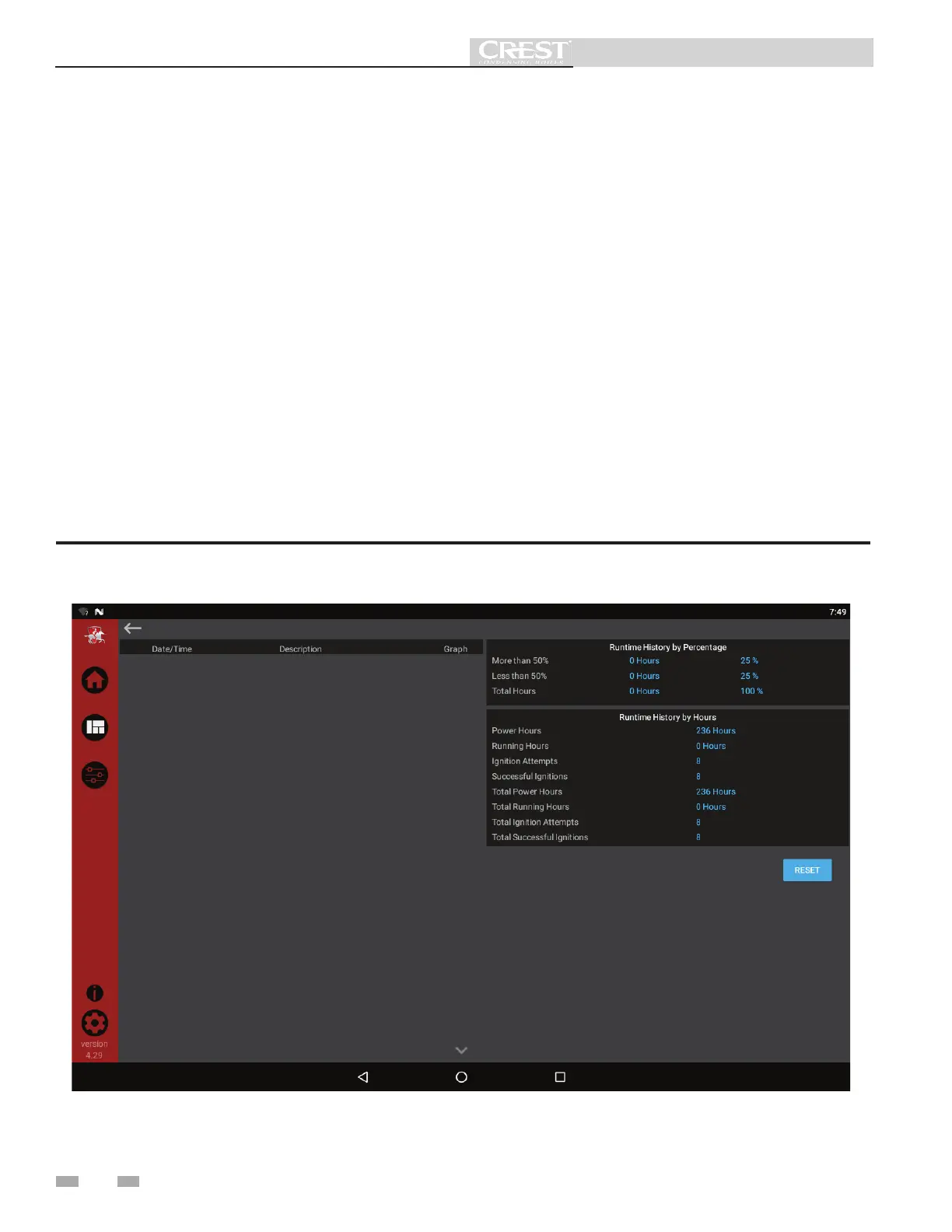

Figure 1-19 History Screen / Runtime History
