Service Manual
7
1 Service (continued)

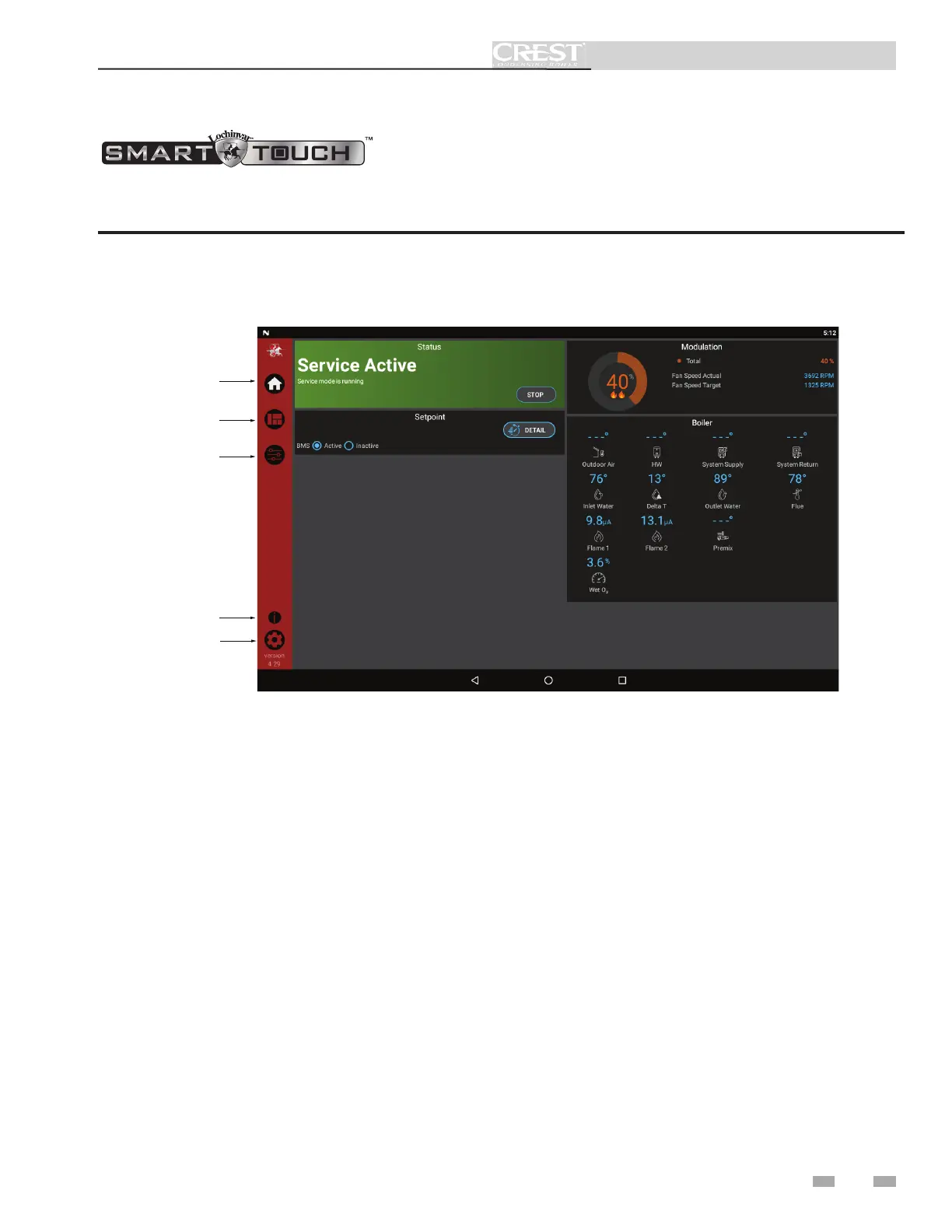

Figure 1-1 Home Screen
The Home Screen displays the available basic system information divided into the following sections: Status, Demand,
Modulation, Sensors, and Navigation.
HOME
VIEW
SETUP
INFORMATION
SETTINGS
• The Status Section is located on the top left of the screen
and displays how the unit is currently running (i.e. Off,
Stand-by, Blocking, and Lockout) including: current
driving demand, the next Hot Water Setback scheduled,
the reason for any blocking or lockout, and a power button.
• The Setpoint Demand Section is located on the bottom
left of the screen and displays information about the targets
and limits of the current demand being serviced.
• The Modulation Section is located on the top right of the
screen and displays the target modulation of the unit. This
section also includes target and actual fan speeds.
• The Boiler Sensor Section is located on the bottom right of
the screen and displays both factory installed and
field installed sensor including: Outdoor Air, Hot Water
Temperature, System Supply, System Return, Inlet Water,
Delta T, Outlet Water, Flue Temperature, and Flame
Current.
• The Navigation Section is located down the left side of the
screen. There are five (5) sections located below the
Lochinvar icon: Home, View, Setup, Information
(About), and Settings. The Home Section is the screen
shown above. The View Section provides more detailed
information including subsections for: History, Cascade,
Graphing, and a complete list of current Sensor Values.
The Setup Section has several screens to aid in setting
up the appliance. The Setup Section includes screens for
adjusting: Set Points, Pump Settings, Cascade, BMS, Ramp
Delay, and Night Setback. The Information Section
provides information about the hardware and software
including the current software version of the interface, the
version of the boiler control, and the CON·X·US device
serial number. The Setting Section enables several interface
setup features including: Time Setup, Temperature Unit
Select, Loch’n Link, System Update, and WiFi Setup.
