Service Manual
33
1 Service (continued)

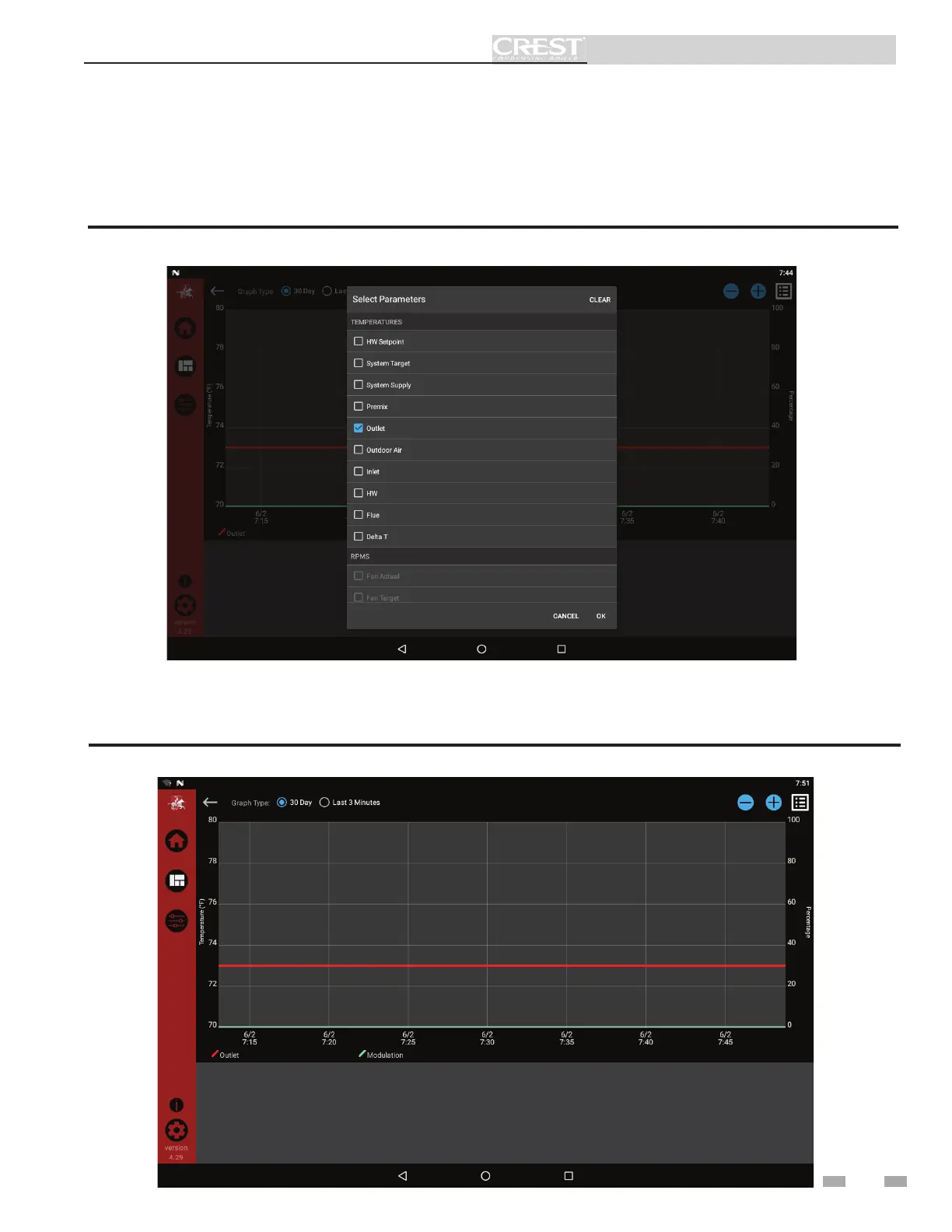

e Graph Screen consists of two (2) di erent types of screens. e rst screen Short Term Data Screen (three minutes in one
second intervals) and the Long Term Data Screen (32 days, 233 average minutes). If a parameter is selected by mistake, it can be
de-selected by re-selecting the parameter. A maximum of eight (8) items can be graphed at one time.
Figure 1-17 Graph Select
Graph Screens
Figure 1-18 Graph Screen
Once the items to be graphed are selected, press the OK button to view the graph. Each item graphed will have a di erent color line
to represent it. e items selected will be shown below the graph along with their corresponding color.
