5. Use a 3/32" hex key to remove 3 socket head screws and carefully disconnect the two fittings (See
photo 5) as follows:
a. Remove black shrink wrap tubing.
b. Remove screw (phillips head) holding terminal.
c. Using two line wrenches (5/16" and 7/16") disconnect the tubing fittings.
6. Perform the steps above in reverse to install a new Torch head.
4. Remove the torch assembly from the holder casting. Now remove the torch body by loosening
the threaded collar. Unscrew housing to expose wires. ( See photo 4)

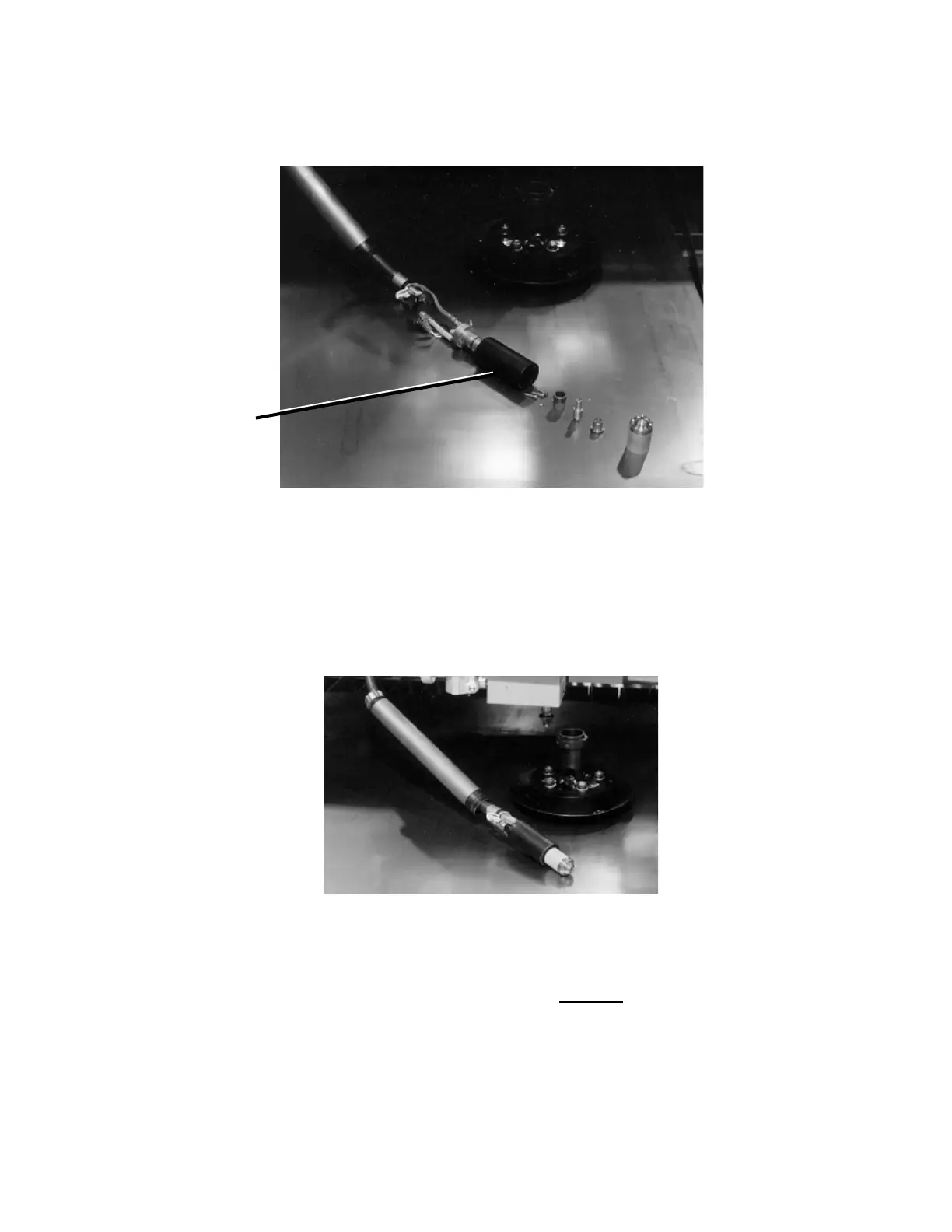

THREADED
COLLAR
PHOTO 5
PHOTO 4
Maintenance... Page 4
