5. Torch Height Adjustment - In case a Torch Assembly’s setting is ever disturbed and
needs resetting, or if a new Torch Head must be installed, The Torch Head’s ball casters and Torch
Nozzle must be set correctly in relation to each other and to the sheets the Torch will cut.
To adjust the Torch to the correct settings, place a test sheet on the table beneath the Torch Head,
loosen the two brass Torch Holder Screws (at right of Torch), loosen the two set screws (near bottom
of Torch Assembly, just above the top of the black Head Shield) and let the Head Assembly slip down
all the way, so it rests on the sheet (Photo 6).
Looking under the Torch, use the torch height adjustment knob to set the bottom of the Torch Nozzle
to 1/16" minimum above the sheet, and retighten the set screws. The Ball Casters and Torch Nozzle
are now in correct relation to each other, approximately
1/16" apart.
To set the entire Torch Assembly at the correct height,
use the Knob to raise the Assembly up so all 5 ball
casters just barely touch the sheet (previously they had
rested all the way down). Now, retighten the brass
Torch Holder Screws.
NOTE: The head must be square
and perpendicular to panel, with all 5 casters touching it
after resetting. If it is not square, reset the Torch by using
the vertical pivoting adjusting screws behind it.
PHOTO 6
Maintenance... Page 5
TORCH
ASSEMBLY
SEE HYPERTHERM
MANUAL

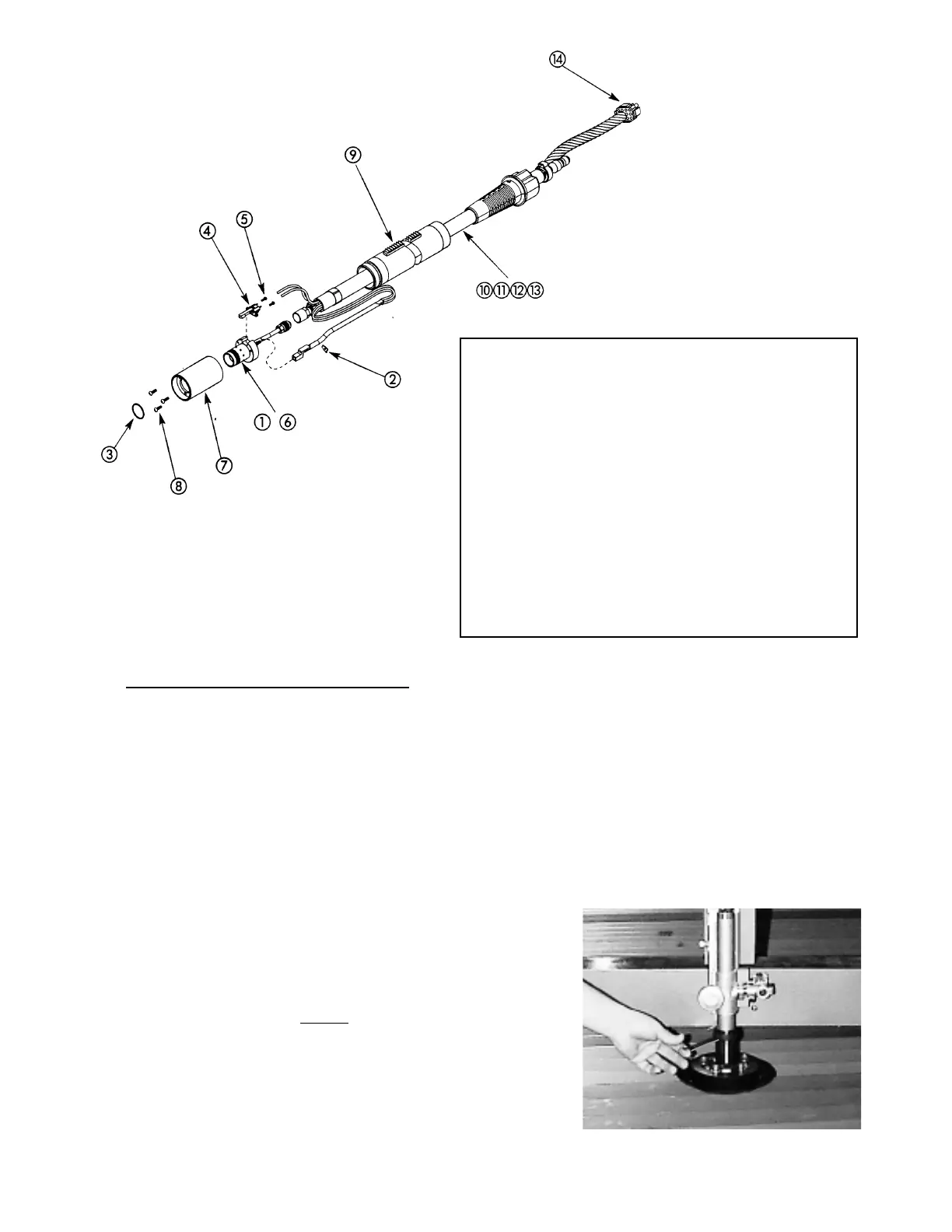

T60M Machine Torch Assembly
Item Part No. Description
083176* T60M Machine Torch Assembly with 35 ft (10.7 m) Lead
083177* T60M Machine Torch Assembly with 50 ft (1 5.2 m) Lead
1 128640 T60M Torch Main Body Replacement Kit
2 027889 Retaining Clip
3 058519 O-ring
4 128639 Cap-off Sensor Replacement Kit
5 075571 Cap-off Sensor Screws
6 128521 T60/T60M Torch Head Repair Kit
7 128643 Torch Mounting Sleeve Replacement Kit
8 075004 Torch Mounting Screws
9 128710 Torch Positioning Sleeve
10 128634 15 ft (4.6 m) Torch Lead Replacement Kit
11 128633 25 ft (7.6 m) Torch Lead Replacement Kit
1 2 128635 35 ft (10.7 m) Torch Lead Replacement Kit
1 3 128641 50 ft (15.2 m) Torch Lead Replacement Kit
1 4 128638 ETR Repair Kit (Regional Repair Centers only)
128645 Torch Mounting Kit (for reassembly after installation)
