Loewe ONE 55 - Device Connections Overview

One 55
User manual
10
1
Mains connection
Power plug – 220-240 V ~ 50 / 60 Hz
2
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
3
HDMI 1 (ARC) - HDMI input 1 (with Audio Return Channel)
HDMI – Digital Video IN (4K@60Hz)/Audio IN/OUT
4
HDMI 2 - HDMI input 2
HDMI – Digital Video IN (4K@60Hz)/Audio IN
5
ANT TV - Antenna/cable analogue / DVB-T/T2 / DVB-C
IEC socket – 75 Ohm / 5 V / 80mA
6
ANT SAT 1 - Satellite antenna (Sat tuner 1) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
7
ANT SAT 2 - Satellite antenna (Sat tuner 2) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
8
SPDIF OUT - Audio output (digital)
Cinch socket (orange)
9
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 1000mA)
10
HEADPHONE - Headphone connection
Jack 3,5 mm – Headphones 32–200 Ohm
11
HDMI 3 - HDMI input 3
HDMI – Digital Video IN (4K@60Hz)/Audio IN
12
AUDIO OUT - Audio output (analogue) L/R – (Jack 3,5 mm)
13
AV INPUT - Micro AV socket
(1
Audio/Video IN with Scart adapter: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
Audio/Video IN with VGA adapter:
PC/STB video signal
Component (YPbPr)
L/R
14
COMMON INTERFACE - CI slot 1 (standard V1.3)
15
COMMON INTERFACE - CI slot 2 (standard V1.3)
16
HDMI 4 (UHD) - HDMI input 4
HDMI – Digital Video IN (4K@60Hz)/Audio IN
17
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
18
USB - USB connection
USB type A – USB 2.0 (max. 500mA)


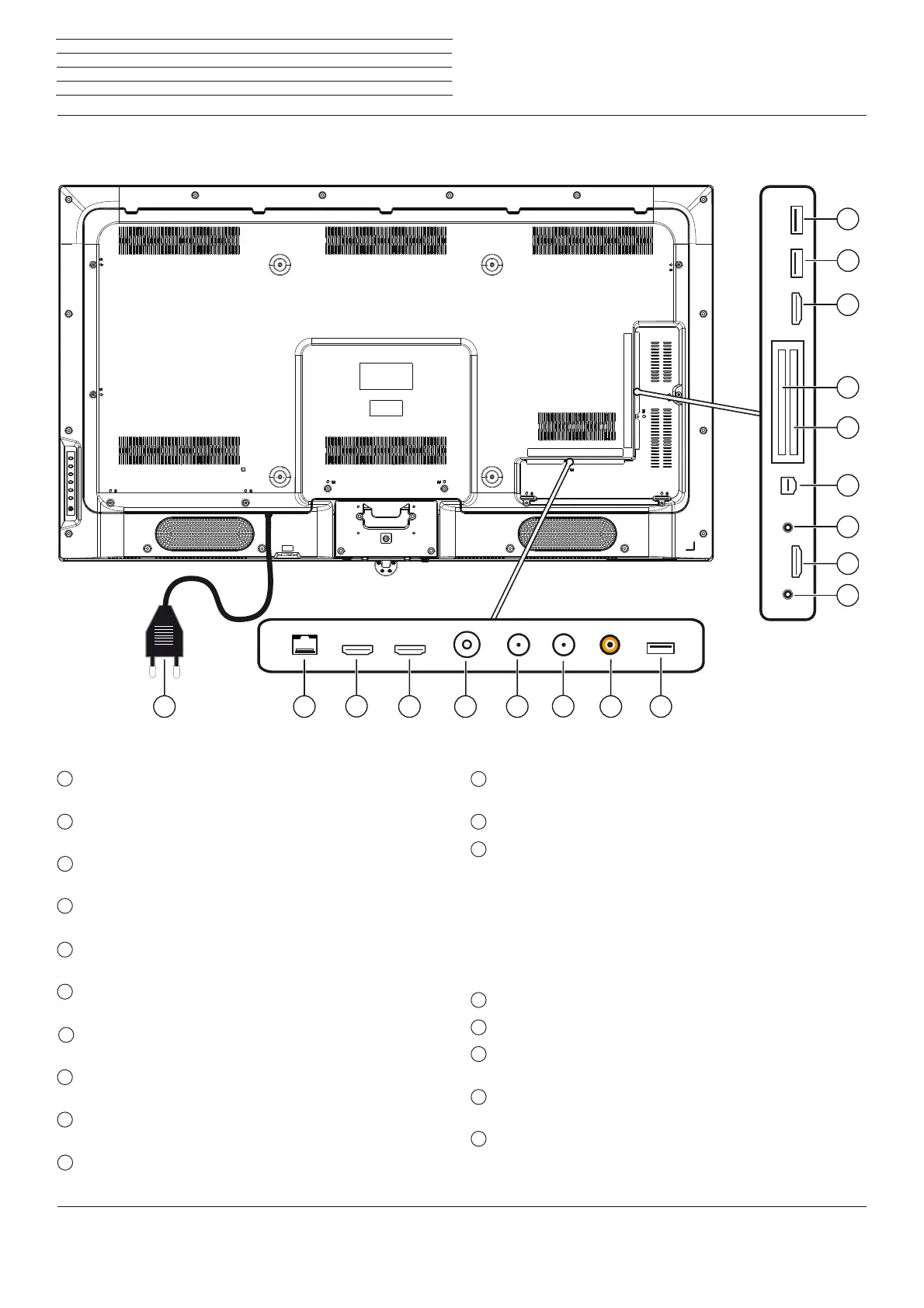

Connections rear side of the device
Position and function of the connections
(1
The adaptor is available as an accessory from your dealer.
