External devices
Devices to the HDMI connections
The HDMI connections (High Definition Multimedia Interface) allow
the transmission of digital video and audio signals from a player (e.g.
DVD player, Blu-ray player, game console, camcorder, set-top box)
via a single cable.
The digital video and audio data are transmitted without data compres-
sion digitally and therefore lose none of their quality.
A maximum of five devices can be connected in cascade to every HDMI
socket. The devices are arranged in the AV list and in the station list
below the appropriate HDMI socket. If the respective device sends
its own device name, this appears in place of the connection name.
Connecting the device
Switch off all devices before connecting them.
Connect the device by an HDMI cable (Type A, 19-pole) to one of the
HDMI sockets of the TV set.
An HDMI device is connected to the side HDMI socket (e.g. camcorder)
in the same way as shown in the figure.
If you use HDMI sources providing UHD content, they should be con-
nected to the HDMI 4 UHD port.
Please note that not all signals may be represented on any HDMI
socket (see chapter Technical Data, section Signals via AV (PC
IN) / HDMI)

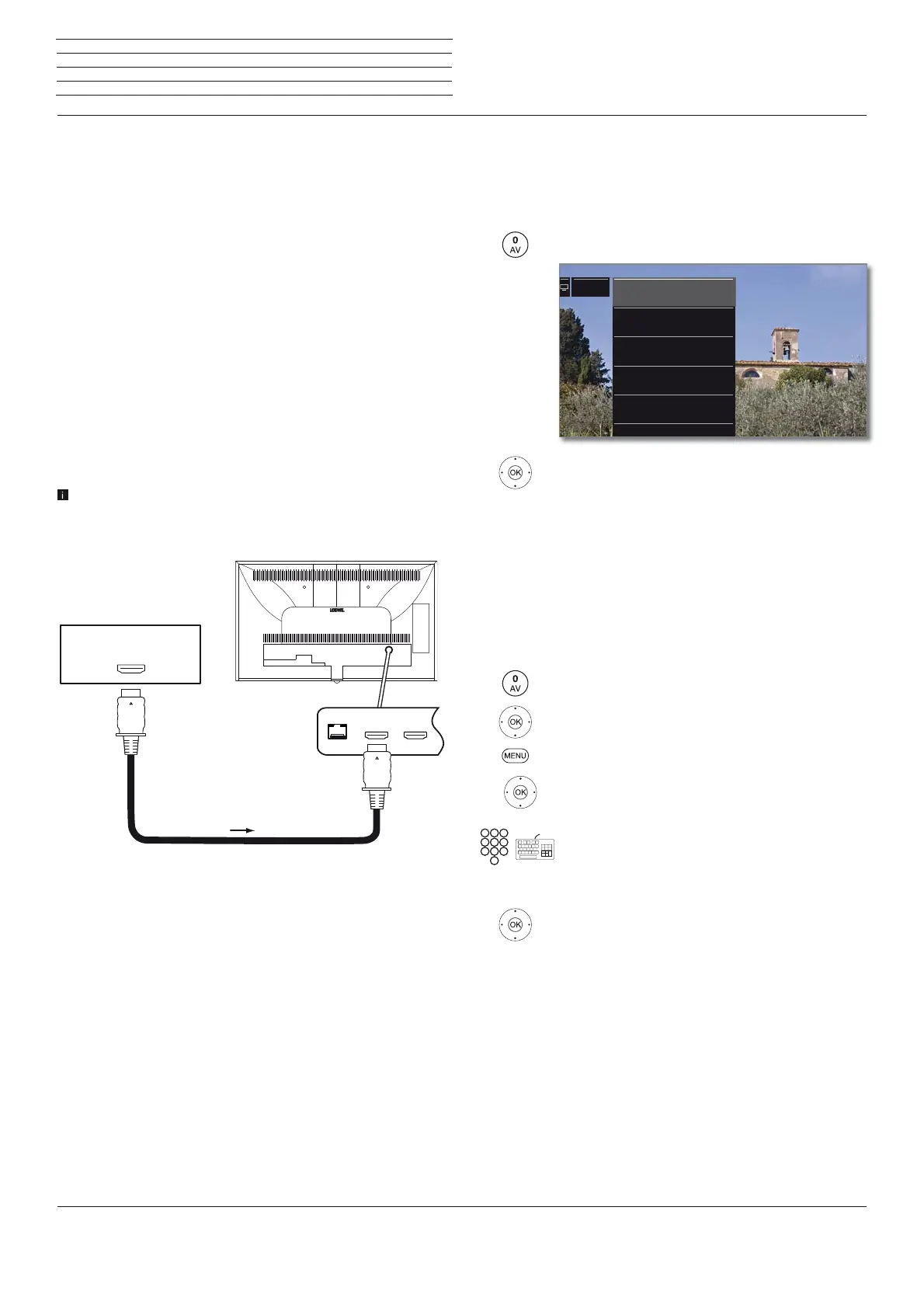

Connection example of an HDMI device (e.g. Blu-ray Player)
HDMI
HDMI1
Blu-ray player
TV set
Playback from the device
If the device at HDMI supports the Digital Link HD functionality, the
TV set will automatically switch to the corresponding HDMI input after
starting the replay at the HDMI device.
The HDMI input can also be called up manually:
Call AV list.
Select HDMI socket.
With Digital Link HD-capable devices the device
name may possibly appear in place of the connec-
tion name.
OK switch over.
Start playback on the connected HDMI device. The
best possible format for the picture is detected and
set automatically.
Renaming the HDMI port designation
The port designation of the HDMI jacks can be renamed manually.
Call AV list.
Select desired HDMI socket.
OK switch over.
MENU: Call function list.
Select Rename,
OK call.
Enter new name (information on how to enter
characters, see also section General information on
operation, section Entering characters with
on-screen keyboard).
Select adopt,
OK New name for the HDMI jack is adopted.
2 HDMI 22 HDMI 2
1 HDMI 11 HDMI 1
3 HDMI 33 HDMI 3
4 HDMI 44 HDMI 4
5 PC IN5 PC IN
6 AVS
AV list
To Next Page
