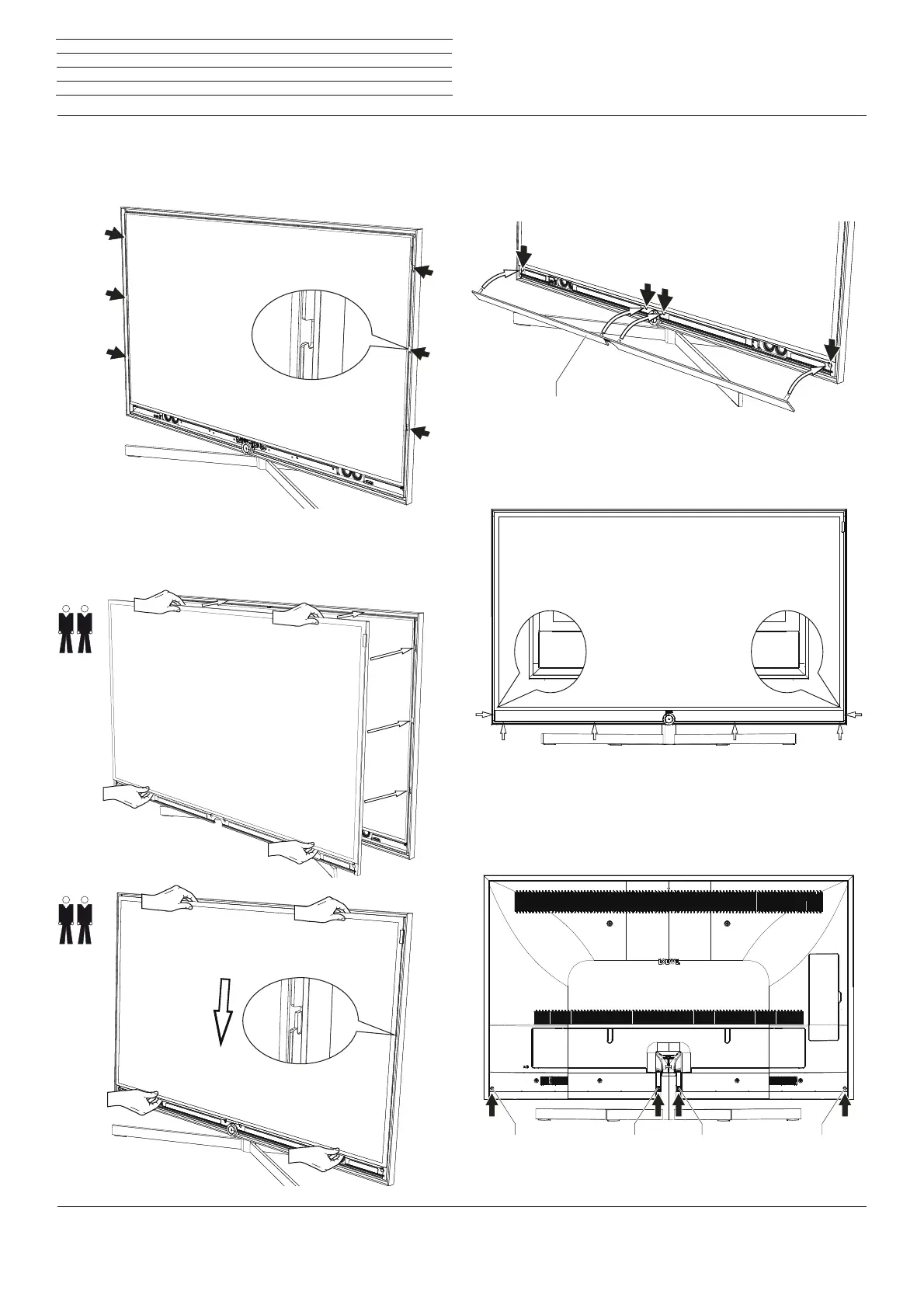

Assembly of the screen (Reference 55)
At the left and right of the screen there are three fixing points into
which the screen must be fit. It is important that the assembly of the
screen is done by two persons.
Position the screen centrally above the panel of the TV set.
Be careful
not to damage the panel and the surrounding aluminium profile on the
TV set.
Slide the screen into the fixing points (1) and push the screen
slowly into the locking mechanism downwards (2
).
(1)
(2)
Remove the front panel (C) and insert the two centre mounting bolts
into the two openings.
Subsequently, the two sides of the front panel are pressed down from
the middle outwards. Insert the two outer mounting bolts into the two
openings.
The front panel is held in place by magnets. Push the front panel
upwards until it is flush with the front screen. Pay attention to the
uniform lateral alignment (centring).
On the rear side of the device, screw the two inner screws (A) M4x20
TX20 and the two outer screws (B) M4x18 TX20 into the marked
points. Hand tighten the screws.
Reconnect all the cables.
