Reference 55-85
User manual
146

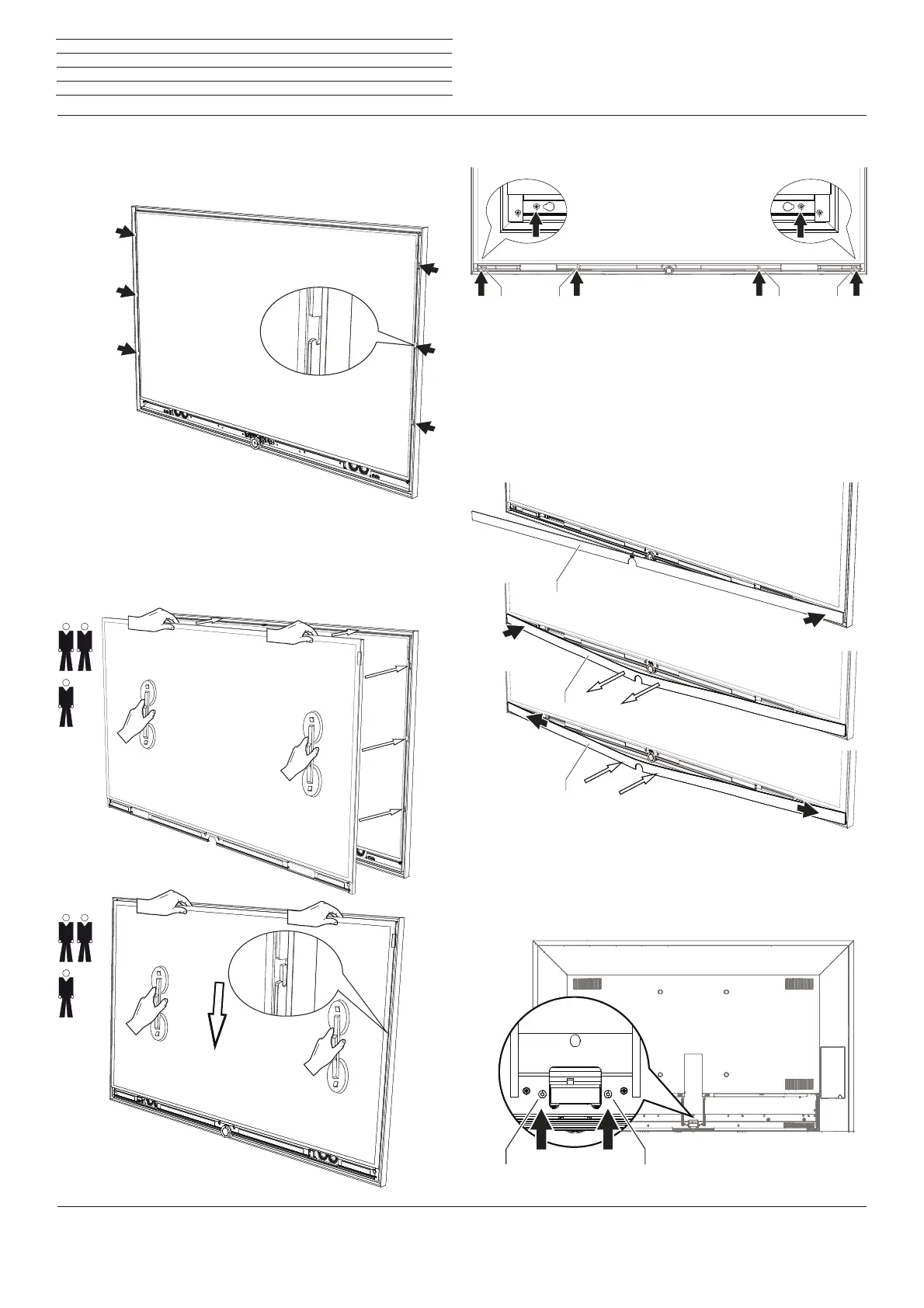

Assembly of the screen (Reference 75/85)
At the left and right of the screen there are three fixing points into
which the screen must be fit. It is important that the assembly of the
screen is done by at least two persons, preferably by three persons.
Position the screen centrally above the panel of the TV set. Be careful
not to damage the panel and the surrounding aluminium profile on the
TV set.
Slide the screen into the fixing points (1) and push the screen slowly
into the locking mechanism downwards (2). If the clearance is equal at
the side and on top, the screen has been fitted correctly.
(1)
(2)
Screw in the four fastening screws (D) M4x20 / TX20 at the marked
points on the front of the TV set. Hand tighten the screws.
(1) Take the front panel (B) and insert its right side into the recess of
the bayonet lock.
(2) Pull the middle part of front panel (B) a little bit away from the TV
set. Then thread the left side of the front panel into the bayonet
lock.
(3) Now lead the middle of the front panel to the TV set and thus the
two mounting bolts in the two openings.
The front panel is centred by itself.
On the rear of TV set, screw in the two screws (A) M4x35 / TX20 at
the marked points. Hand tighten the screws.
Reconnect the power cord and attach the cable cover again.
DDDD
B
(3)
B
(2)
B
(1)
AA
