Fieldbook) E1) User’s) Guide)
33

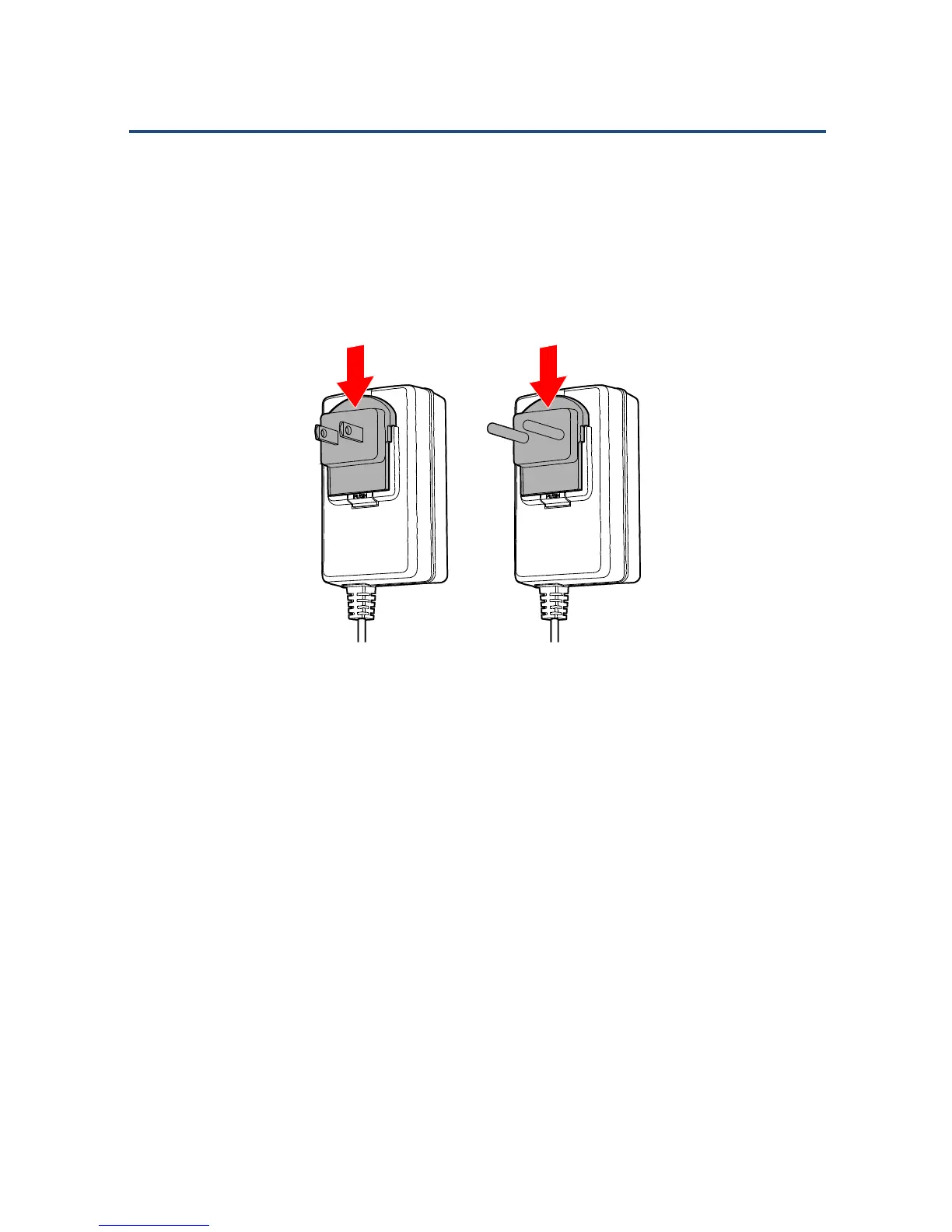

To insert a power plug:
1. Align the power plug sides to the slot on the AC adapter.
2. Slide the power plug all the way into the slot. You will hear a “click” to
indicate that the power plug is locked in place.
Inserting a Power Plug
