2.4.2. Connecting an HD Display
The micro HDMI port connects the Fieldbook E1 to a high-definition display
for up to 1080p video output.
NOTE: The Fieldbook E1 does not come with a micro HDMI cable.
To connect an HD display:
1. Open the I/O ports door.
2. Connect the micro HDMI cable to the micro HDMI port on the Fieldbook
E1.
3. Connect the other end of the micro HDMI cable to the HD display you
want to connect.

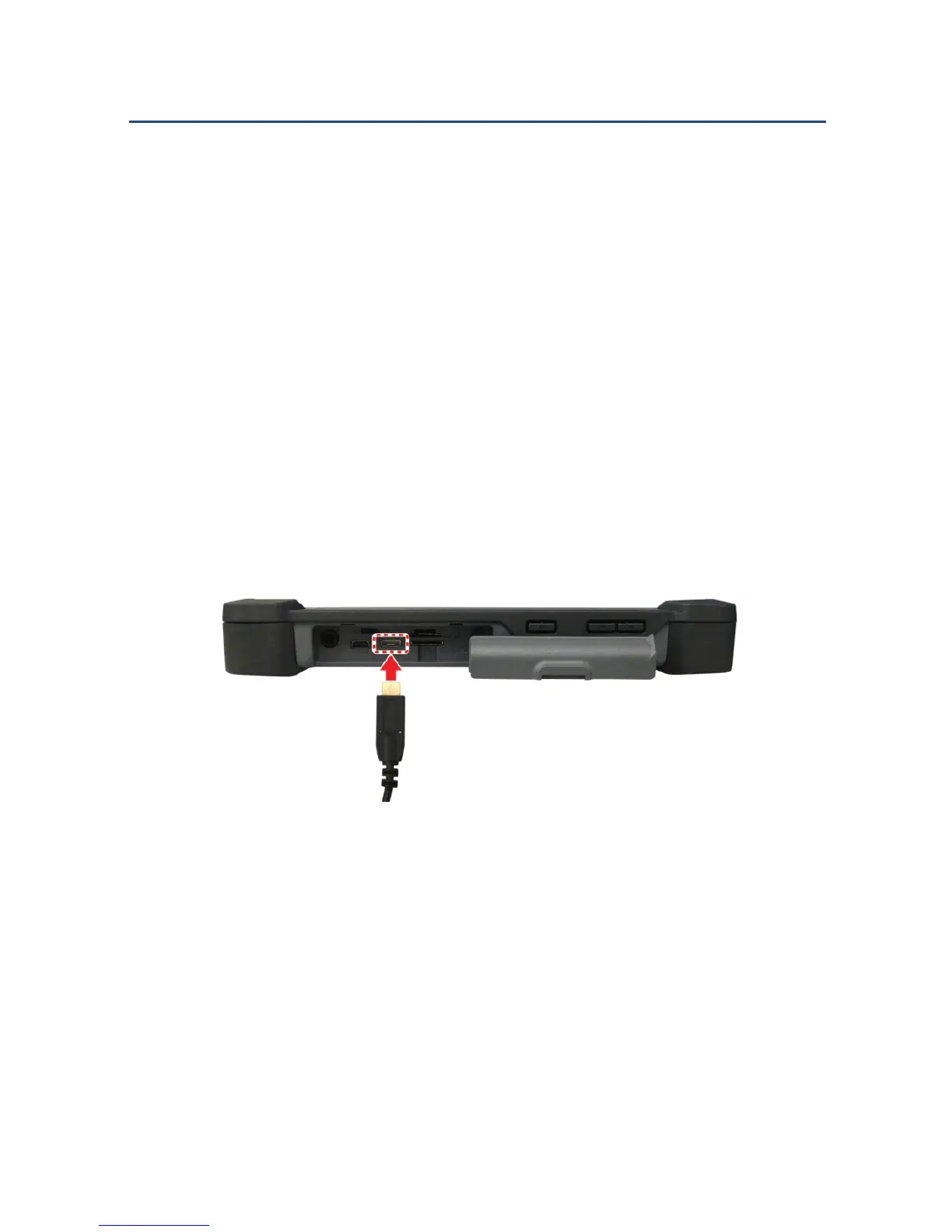

Connecting a micro HDMI Cable
