Logosol B751 - Adjustment Arm and Log Support Fitting

24
M8x11
M8
M8x25
M8
2 x
2 x
2 x
2 x
2 x
4 x
2 x
2 x
2
3
M8x11
M8x30
4 x
4 x
4
8400-005-0010
8400-005-0020
8200-005-0200
8200-005-0200
8400-005-0020

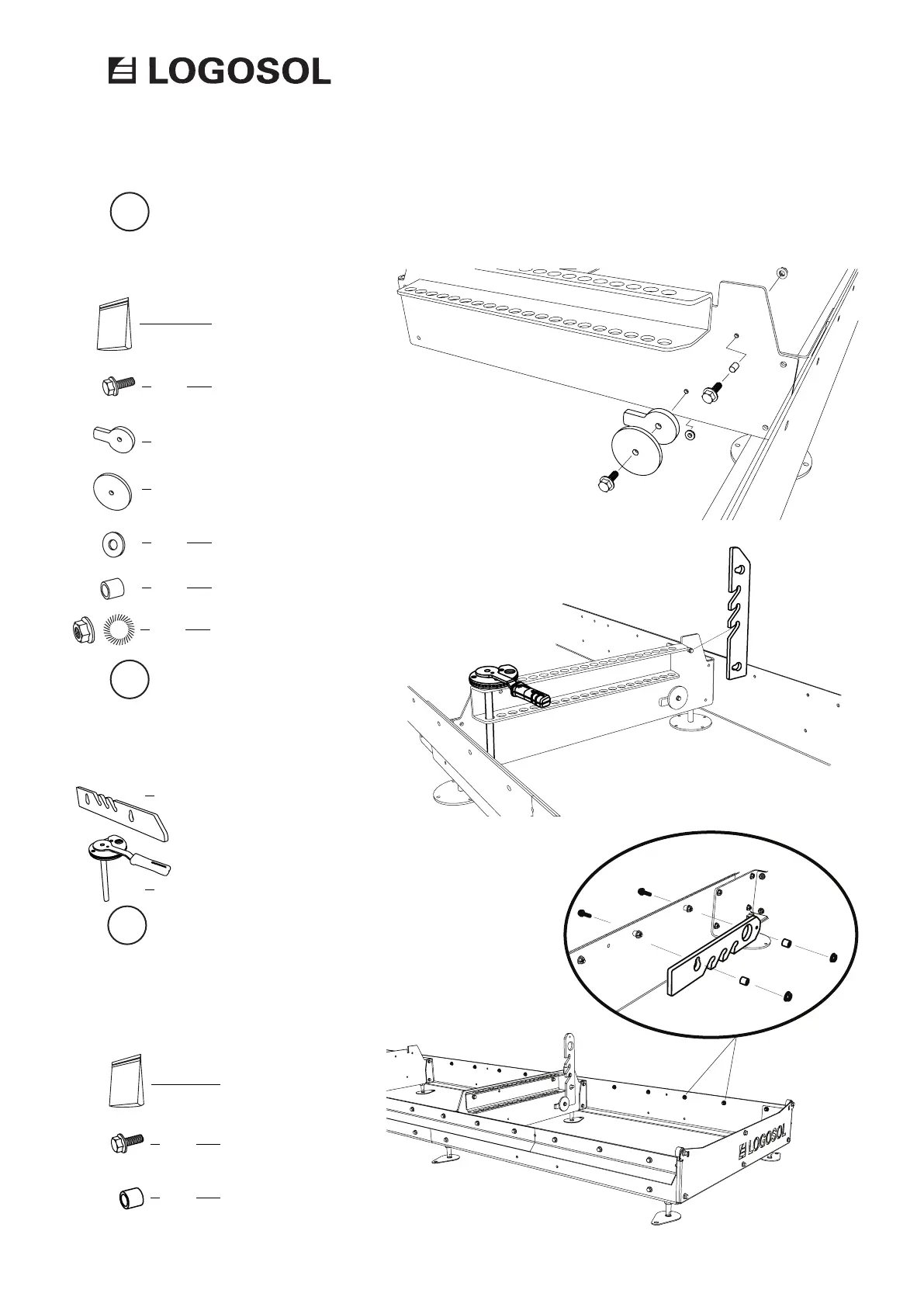

Fit the adjustment arm for the log support to the log bed.
Fit the log support in the log bed.
Then repeat the installation procedure
for the second log bed.
FINAL ASSEMBLY: RAIL
Fit the spacers for the log support storage in the sides of
the rail. Existing M8x20 screws are replaced by M8x30,
these 4 M8x20 screws are left over.
