38
Good0
x mm
x
x
x
x
x
x
x
x
x
30
x
mm

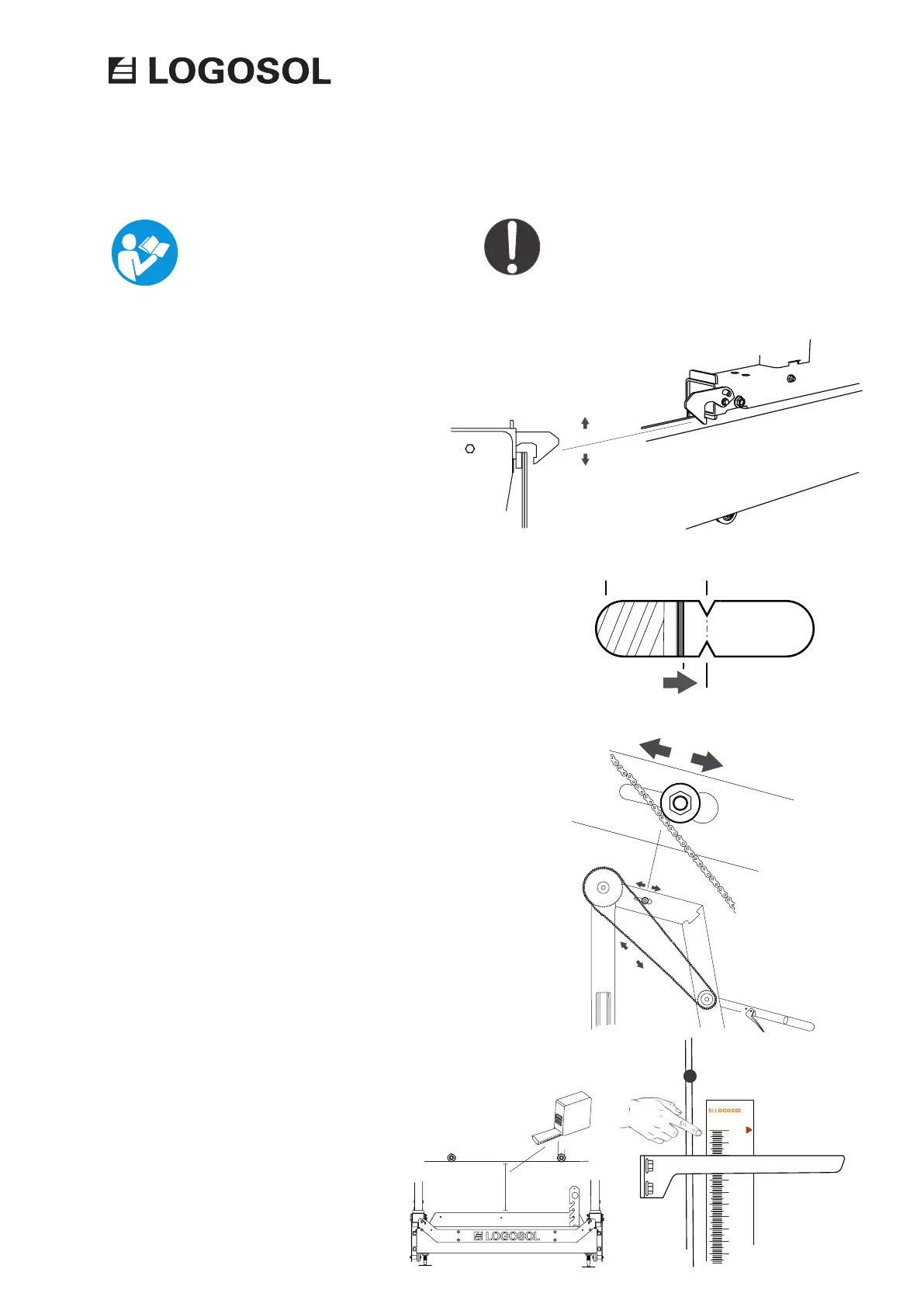

RAIL SCRAPERS
CHAIN LINKAGE
The handle’s chain linkage must be extended to
ensure that the lifting mechanism works properly.
Start by loosening the tensioner’s fastening screw,
then move the tensioner towards the chain until
the chain is tensioned slightly. Then tighten the
screw joint.
The saw carriage has rail scrapers at the
ends. It is important perform regular checks
to ensure that these run against the rail.
OTHER SETTINGS
The following settings are important for
satisfactory operation of the sawmill,
but they do not affect one another and
so there is no need to implement them
in any particular order.
Read through all the set-up instructions
before starting to set up, then follow the
instructions step by step as you work.
Tension the saw blade by turning the T-handle to
the right. Read off the blade tension on the gauge
that can be seen inside the band wheel guards. The
blade is tightened until the red line is centred on the
arrow in the opening for the blade tension spring.
BLADE TENSION
It is necessary to adjust the gauge so that it shows
a correct value between the log bed and the
blade. Proceed as follows: Measure the distance
vertically down between the saw head and a
log bed. Note down the distance. Now fit the
magnetic gauge on the gauge plate so that its
value at the top of the pointer matches with
the value noted.
SET THE GAUGE
