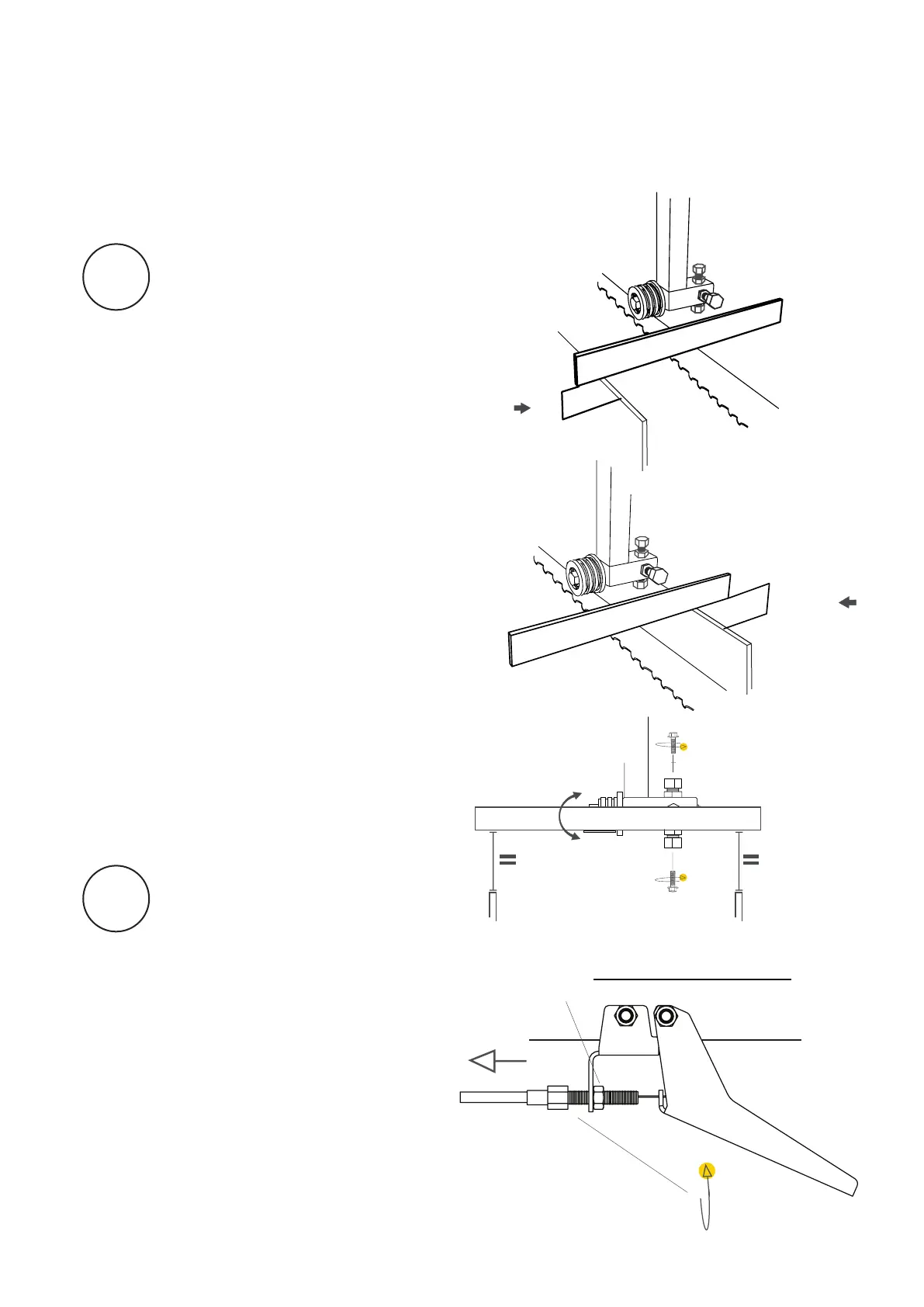

It is important for the saw blade to be parallel to
the rail to ensure the proper functioning of the
sawmill. Place a straightedge on the saw blade,
as close to one of the blade guide rollers as possible.
Place the straightedge over a tooth without
setting. Now measure from the leading edge of the
straightedge (measurement point 1) and vertically
down to a log bed. Note down the value from
measurement point 1. Move the saw head, then
repeat the measurement from the trailing edge of
the straightedge (measurement point B). Compare
the values. The values at measurement point 1 and
measurement point 2 must be the same.
If the values are not the same, tighten the
adjusting screws for the blade guide roller until the
measurements match at both measurement points.
One way of facilitating adjustment is to work on
the basis of the value from measurement point 1,
compare it with the value from measurement point
2, and then adjust measurement point 2 up or down
by half the difference. When you have achieved
parallelism, repeat the adjustment procedure
at the second blade guide roller.
ADJUST THE BLADE SO THAT IT IS PARALLEL
TO THE RAIL
Measurement point 1
Measurement point 2
Adjust half the difference at measure-
ment point 2
Measurement point 1
ADJUSTMENT SEQUENCE
Measurement point 2
The throttle cable tension can be adjusted by
tightening the adjusting screw holding the cable
housing. Undo the adjusting screw until depressing
the throttle fully results in full throttle at the engine.
Then lock the adjustment using the check nut.
Check nut
THROTTLE CABLE TENSION
