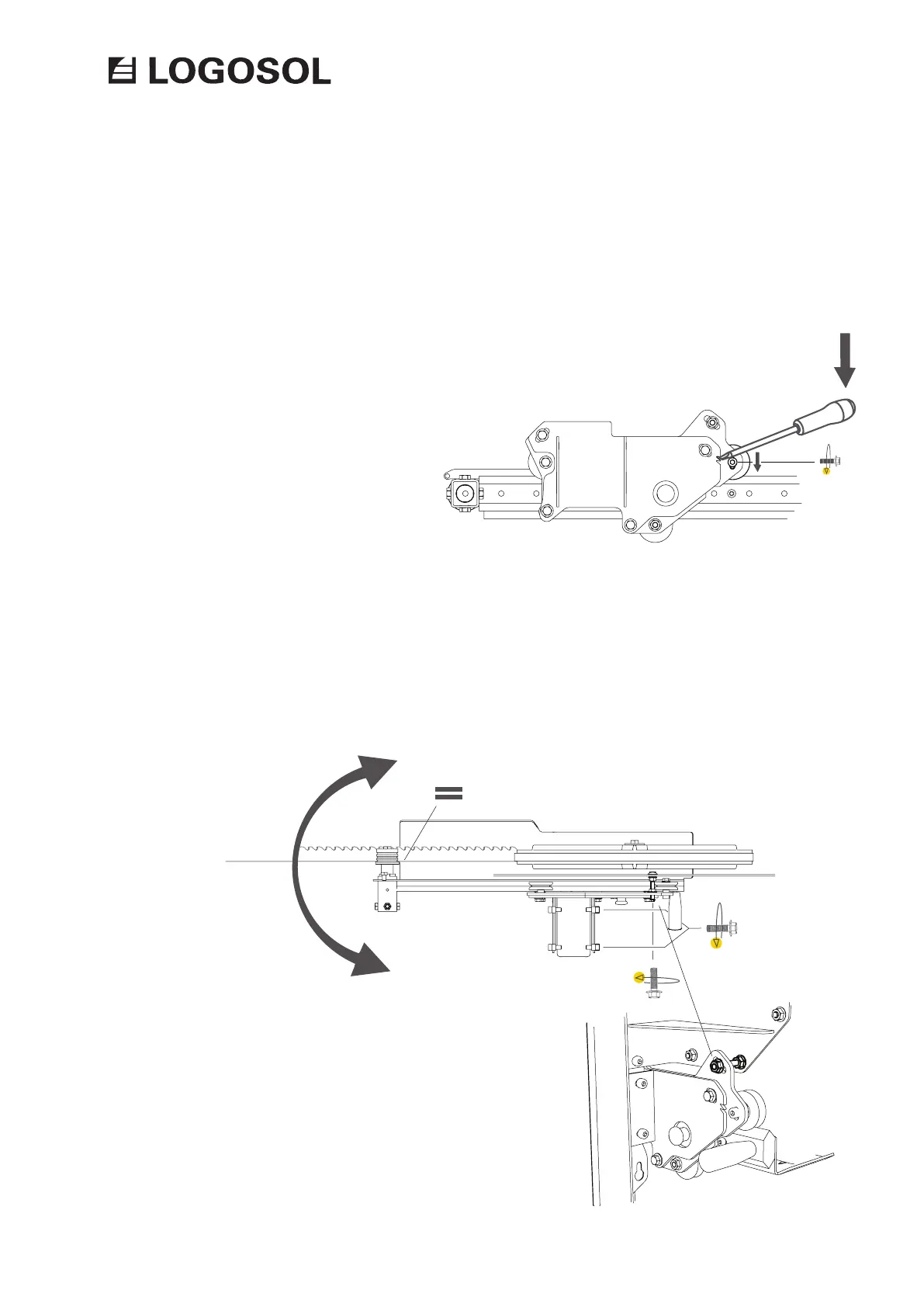

It is important for the blade guard arm to move smoothly
in the attachment plate to ensure proper functioning of the
sawmill. Release the Allen head bolt on the blade guard
plate, then push the wheel downwards using a screwdriver
as illustrated.
Make sure the blade protection arm is straight between
the wheels and runs smoothly.
To adjust the parallelism of the blade guard arm with the
saw blade, loosen the three fastening screws on the outside
of the attachment, then adjust the parallelism using the
adjusting screw that attaches to the back cover.
TENSION THE BLADE GUARD ARM
ADJUST THE BLADE GUARD ARM PARALLEL TO THE BLADE
ADJUSTMENT SEQUENCE
