SAWMILL FEATURES
ADJUSTING
KNOB
WATER COOLING
Water cooling is controlled by means of a lever in the side panel
in front of the operator. The lever is perpendicular to the panel
in its initial position. The lever is pulled backwards to turn on the
water flow. The water cooling flow is adjusted by clamping the
cooling hose in the elongated groove in the motor shelf.
SAWMILL FEATURES

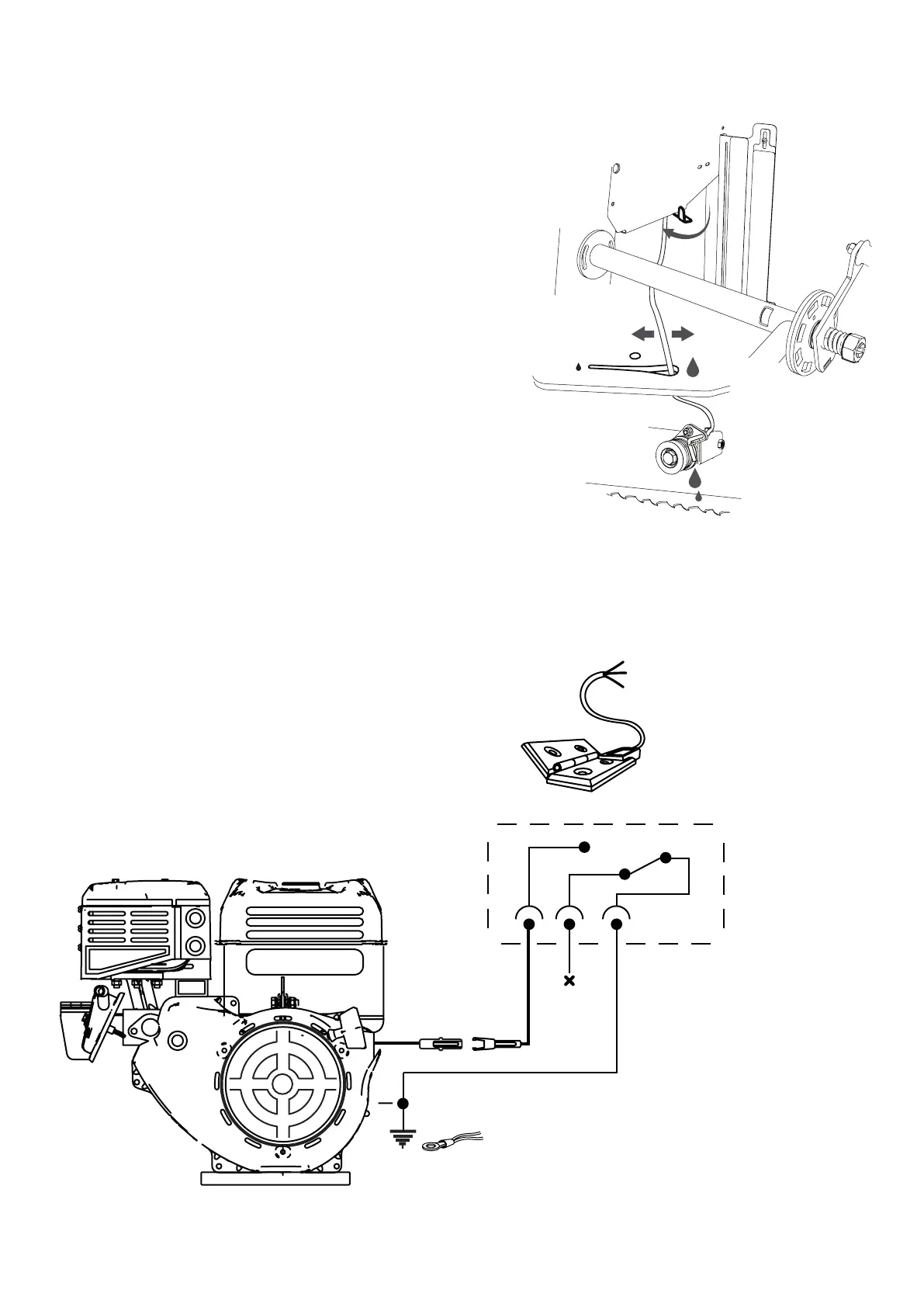

WIRING DIAGRAM
60-SH-6-FAS-2
Elesa CFSQ,
Safety switch
Black
Black
Ignition off
Ignition off
Grey
Blue
SAFETY SWITCH WIRING DIAGRAM
