42
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
360
370
380
390
400
410
420
430
440
450
460
470
480
490
500
510
520
530
540
550
560
570
580
590
600
610
mm/Inch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
620
630
640
650
660
670
680
690
700
710
720
730
740
750
760
770
780
790
800
810
24
25
26
27
28
29
30
31
1
1/2
1
1/2
1
1/2
1
1/2
1
1/2
1
1/2
1
1/2
1
1/2
1
1/2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
1
3/4
1
3/4
1
3/4
1
3/4
1
3/4
1
3/4
1
3/4
1
3/4
520
530
540
550
560
570
580
590
610
600

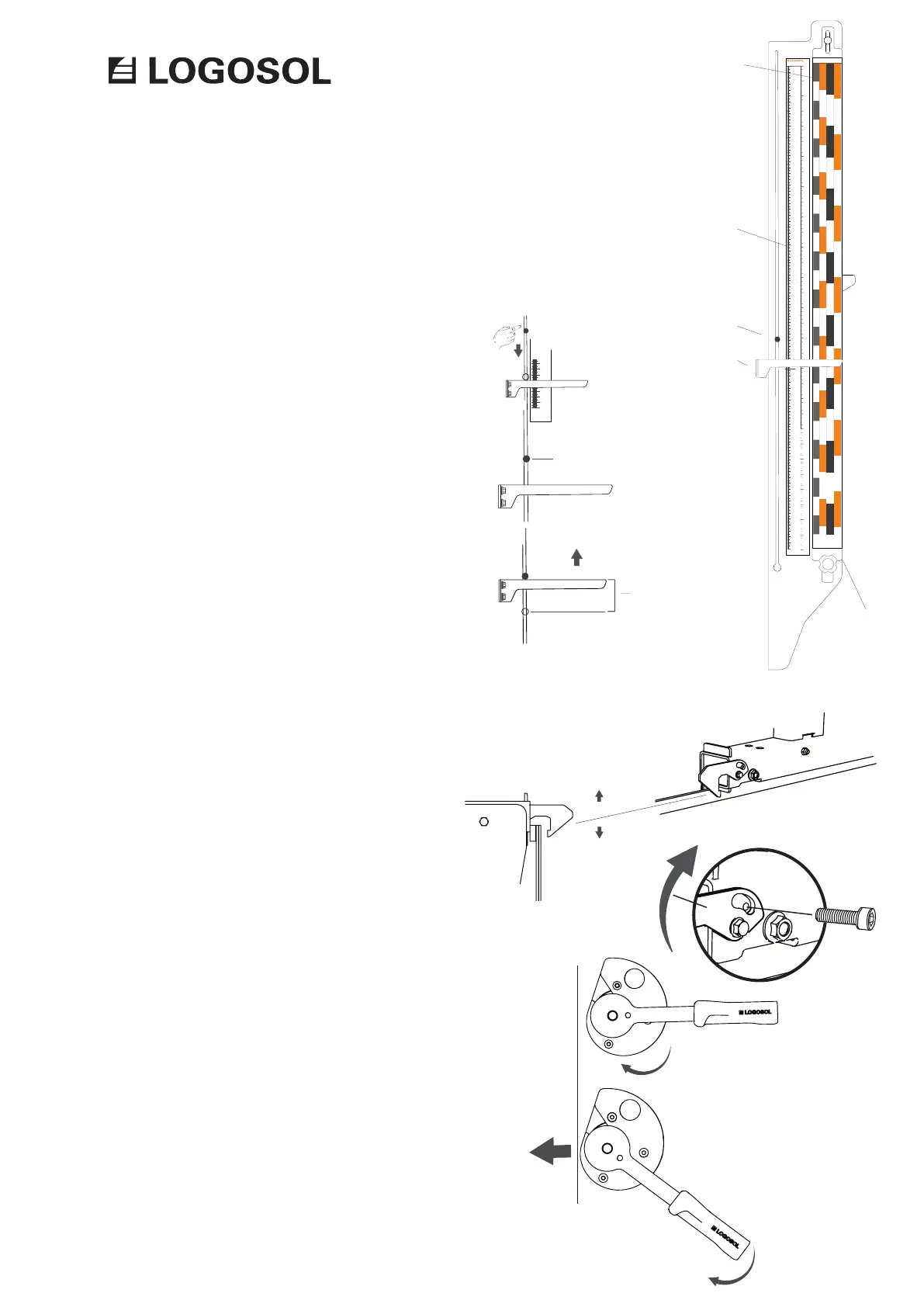

PARKING LOCK
The sawmill comes equipped with two hasps
that lock the saw head in position when it is
moved towards the end stop at either of the
rail ends. To release the lock, lift the hasp with
your foot before moving the saw head. On the
rail end, the lock can be lifted so that it does
not lock automatically by removing the screw
that restricts the movement of the lock.
The sawmill comes with two log clamps so that the log
can be secured when sawing. The log clamp feature is
eccentric.
Start by adjusting the eccentric plate so that it rests
against the log that is to be clamped. This is done by
rotating the plate clockwise. Continue tensioning by
turning the handle clockwise as shown. The actions
are performed in reverse order in order to release
the tension. The plate and handle are then turned
anticlockwise.
LOG CLAMP
SAWMILL FEATURES
GAUGE FEATURE
LAST CUT INDICATOR
The sawmill has two gauges: a millimetre gauge
showing the distance between the log bed and
the saw blade, and a blade-compensated gauge
showing a range of different board thicknesses in
inches. The blade-compensated inch gauge can
be adjusted using a knob which is located at the
bottom of the gauge. One additional feature is the
Last Cut indicator, which is used as an instrument to
help the user to remember the saw head position at
the last kerf.
To use the Last Cut feature, push the knob down
against the pointer before you start sawing. When
the saw head is then raised in order to retract
the machine prior to the next kerf, the knob
“remembers” where the saw head was at the
last kerf. When the saw head is then lowered for
the next kerf, the Last Cut knob can be used as a
reference for the last cut surface.
ADJUSTING
KNOB
RELATIVE SCALE, BLADE-
COMPENSATED
GAUGE, MM/INCH
LAST CUT INDICATOR
POINTER
NEW SAW KERF
POSITION OF PREVIOUS KERF
POSITION OF PREVIOUS KERF
